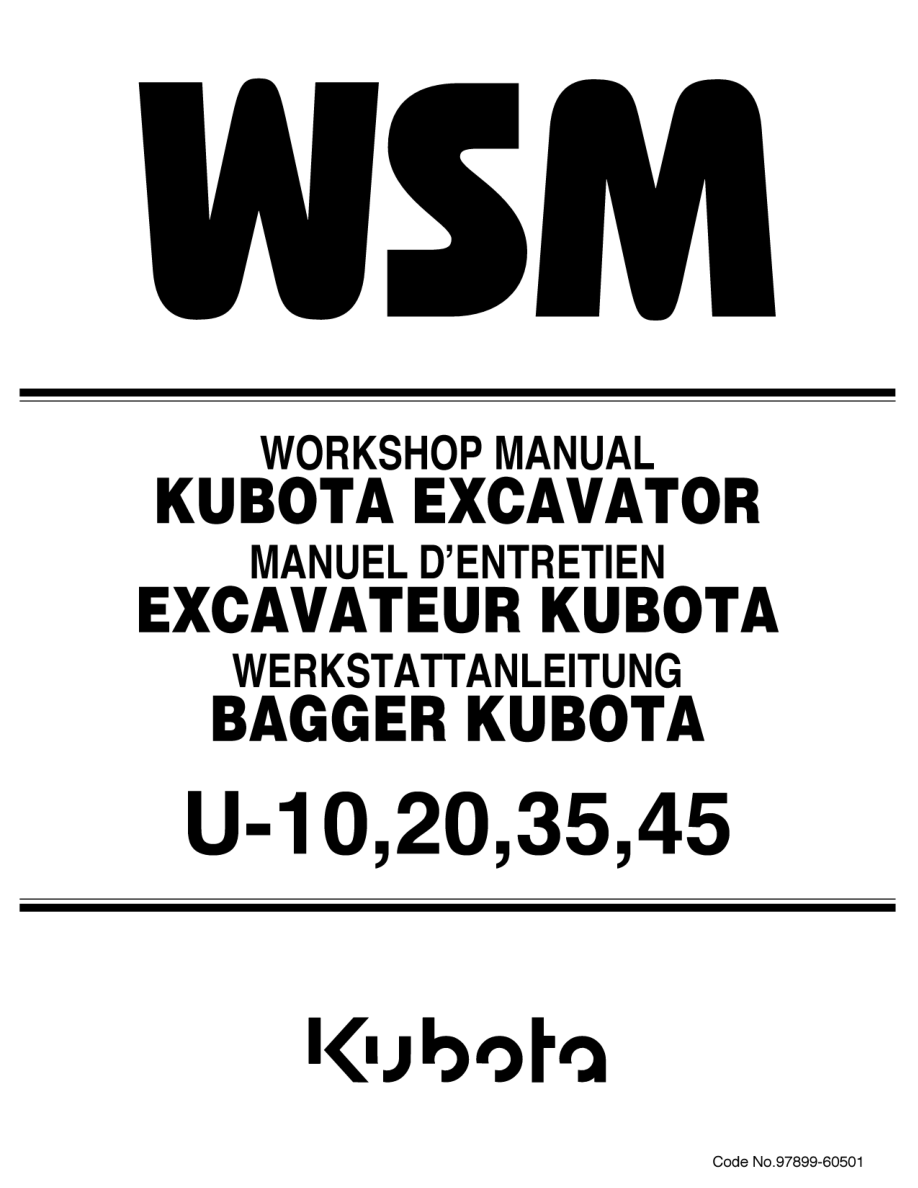

Kubota U10, U20, U30, U45 Excavator Workshop Repair Manual

Kubota U10, U20, U30, U45 Excavator Workshop Repair Manual

$34.00

🚜 Equipment
Brand	Kubota
Type	Excavator
Model	U10, U20, U30, U45
📄 Documents
Type	Repair Manual
Publication	97899-60501
Language	English
Format	PDF
No of Pages	1052

The Kubota U10, U20, U30, and U45 Excavators are part of Kubota’s zero-tail swing and compact excavator range, designed for superior performance in tight working conditions while maintaining the power and durability needed for construction, landscaping, and utility projects. These models provide varying levels of size, weight, and digging depth to meet different site requirements, all built with Kubota’s reliable diesel engines and advanced hydraulic systems.

The U10 is an ultra-compact model weighing approximately 1.2 tonnes, powered by a 10.3 hp Kubota diesel engine. It delivers a digging depth of about 1.8 meters, with a bucket breakout force of 1,060 kgf, making it ideal for confined job sites. The U20 builds on this foundation with greater capacity, while the U30, at roughly 3.3 tonnes with a 27 hp engine, offers a digging depth of 2.9 meters and reach of nearly 5 meters. The U45, a midi excavator, provides significantly greater capability with an operating weight of about 5.4 tonnes, powered by a 42 hp engine, and achieves digging depths up to 3.6 meters and reach of almost 6 meters. Across the lineup, Kubota’s zero-tail swing design ensures excellent maneuverability without compromising digging or lifting power.

The workshop repair manual provides complete coverage of these models, including engine servicing, hydraulic system maintenance, swing and travel motors, control valves, swivel joints, electrical systems, and cab equipment. It also includes detailed wiring and hydraulic schematics, torque specifications, lubrication intervals, troubleshooting procedures, and step-by-step disassembly and reassembly instructions, enabling accurate diagnostics and professional maintenance.

Key Highlights

Kubota U10: ~1.2 t weight, 10.3 hp engine, ~1.8 m digging depth, ultra-compact zero-tail swing
Kubota U20: Compact class with increased digging and lifting capacity over U10
Kubota U30: ~3.3 t weight, 27 hp engine, ~2.9 m digging depth, ~5 m reach
Kubota U45: ~5.4 t weight, 42 hp engine, ~3.6 m digging depth, ~6 m reach
Zero-tail swing design for maneuverability in confined spaces
Auxiliary hydraulics available for versatile attachment use
Workshop manual coverage: engine, hydraulics, electrical, travel/swing motors, control valves, and cab systems
Includes wiring and hydraulic schematics, torque values, lubrication charts, and troubleshooting guides
Built for durability, operator safety, and long-term serviceability

Table of Content

📙 Table of Contents

I General
II Machine body
• Mechanism Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .II-M-1
• Service Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .II-S-1
III Engine
• Mechanism Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .III-M-1
• Service Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .III-S-1
IV Hydraulic System
• Mechanism Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IV-M-1
• Service Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IV-S-1
V. ELECTRICAL SYSTEM
• Mechanism Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V-M-1
• Service Section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V-S-1

U10, U20, U30, U45
Your KUBOTA dealer is always ready to help so that your excavator offers the best performance. After having carefully read this manual, you will realize that much of the routine maintenance can be done by yourself. Machines must be disassembled and assembled efficiently and safely. It is very important to thoroughly understand the construction and function of the machine, to make all appropriate preparations, and start operations according to the specified working procedures in this workshop repair manual.

Specification

Specification	Kubota U10-5 Ultra-Compact Excavator	Kubota U20 (Estimated)	Kubota U30-5 Compact Excavator	Kubota U45 Midi Excavator
Operating Weight	~2,646 lb (~1.2 t) :contentReference[oaicite:0]{index=0}	— (not located)	~3,300 kg (~7,275 lb) :contentReference[oaicite:1]{index=1}	11,850 lb (~5.4 t) :contentReference[oaicite:2]{index=2}
Engine Power	10.3 hp (7.7 kW) :contentReference[oaicite:3]{index=3}	—	27 hp (20 kW) :contentReference[oaicite:4]{index=4}	42 hp (31 kW) :contentReference[oaicite:5]{index=5}
Max Digging Depth	5′ 11″ (~1.8 m) :contentReference[oaicite:6]{index=6}	—	~2,880 mm (~9′ 5″) :contentReference[oaicite:7]{index=7}	~11.82 ft (~3.6 m) :contentReference[oaicite:8]{index=8}
Reach / Dump Height	—	—	Reach ~4,965 mm (~16′ 3″) :contentReference[oaicite:9]{index=9}	Reach ~19.28 ft (~5.9 m); Loading height ~13.03 ft :contentReference[oaicite:10]{index=10}
Bucket Breakout Force	2,337 lb (~1,060 kgf) :contentReference[oaicite:11]{index=11}	—	2,700 kgf (~5,952 lb) :contentReference[oaicite:12]{index=12}	— (not specified)
