Kubota KX61-3, KX71-3 Excavator Workshop Repair Manual

Kubota KX057-4, U55, U55-4 Excavator Workshop Repair Manual

Kubota KX61-3, KX71-3 Excavator Workshop Repair Manual

$33.00

🚜 Equipment
Brand	Kubota
Type	Excavator
Model	KX61-3, KX71-3
📄 Documents
Language	English
Format	PDF
Title	Publication No.	Pages
Repair Manual	97899-61050	458
Mechanism Chapter	97899-61040	136

The Kubota KX61-3 and KX71-3 Mini Excavators are compact and efficient machines designed for construction, landscaping, and utility applications requiring maneuverability and reliability. With operating weights of approximately 2.5 tonnes for the KX61-3 and 2.8 tonnes for the KX71-3, these excavators balance power and versatility in a size class that can easily access tight job sites. Both models are equipped with Kubota’s proven V1505 diesel engine, offering reliable performance, low fuel consumption, and reduced emissions.

The KX61-3 features a transport width of about 1.4 meters, making it well-suited for confined working conditions. The KX71-3, slightly larger at 1.5 meters wide, delivers increased stability and performance with deeper digging reach and enhanced breakout force. Both machines are designed with Kubota’s advanced hydraulic system for smooth, responsive operation, and provide a comfortable operator environment with ergonomic controls and ROPS-certified protection. With bucket capacities ranging around 0.07–0.08 m³ and efficient auxiliary hydraulics, they support a wide range of attachments for digging, trenching, grading, and lifting.

The workshop repair manual covers comprehensive service procedures for both models, including detailed sections on the machine body, hydraulic circuits, pump and control valve assemblies, cylinders, swivel motors, rotary joints, and the Kubota Intelligent Control System (ICS). It also includes wiring diagrams, hydraulic schematics, torque specifications, lubrication schedules, and troubleshooting flow charts. This ensures technicians and operators can perform accurate diagnostics, routine maintenance, and full system repairs to maintain peak performance and reliability.

Key Highlights

KX61-3: ~2.5 t operating weight, ~1.4 m width, powered by Kubota V1505 diesel engine
KX71-3: ~2.8 t operating weight, ~1.5 m width, Kubota V1505 diesel with enhanced digging capacity
Bucket capacity around 0.07–0.08 m³ for efficient earthmoving
Advanced hydraulic systems for smooth and responsive operation
Kubota ICS (Intelligent Control System) for optimized performance and diagnostics
Operator comfort with ROPS-certified cab and ergonomic control layout
Manual coverage: engine, hydraulics, electrical system, pump/valves, swing/travel motors, and cab
Includes hydraulic and electrical schematics, torque values, lubrication charts, and troubleshooting
Durable construction with easy servicing access for long service life

Title	Repair Manual, Mechanism Chapter

Table of Content

📙 Table of Contents – Publication Number 97899-61050

Wsm_Kx61-3_71-3_Mechanism

WSM_KX61-3_71-3_Mechanism
- CONTENTS
- I. General
  - a. Sales feature
  - b. Difference between KX61-3 and KX71-3
  - c. Quick chart for selling points : KX61-3, KX71-3
  - d. Comparison to competitors;EU – version
  - e. Compornents compatibility
  - f. Machine specifications
  - g. Machine weight
  - h. Quality specifications
- II. Machine Body
  - a. Main component
    - 1. Pump coupling
    - 2. Bucket : Kubota standard bucket

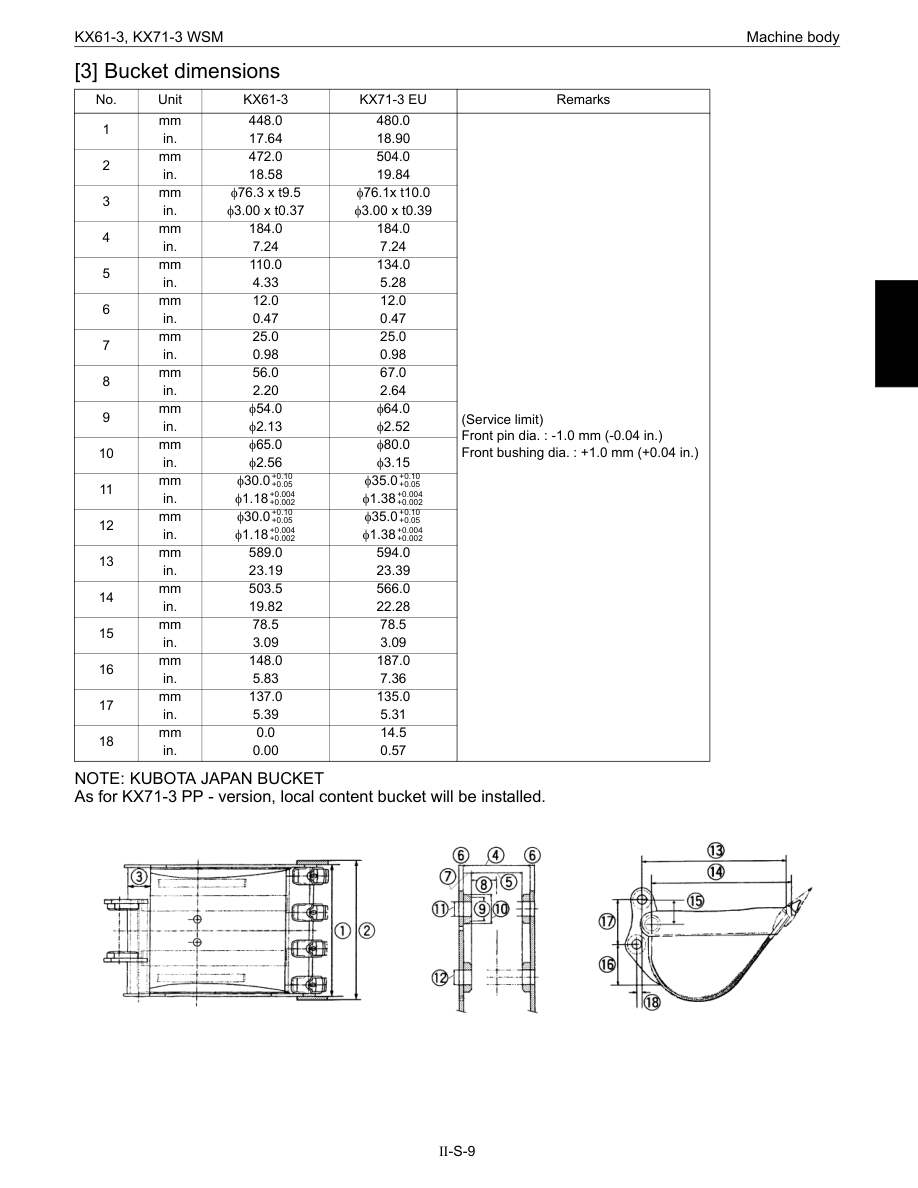

    - 3. Bucket installation relevant dimensions
    - 4. Swing bracket
    - 5. Swivel bearing
    - 6. Idler and tension spring : Rubber track and iron track
    - 7. Track roller
    - 8. Rubber track
    - 9. Iron track
    - 10. Track conversion
  - b. Water and oil quantity
- III. Engine
  - a. Engine Specifications
  - b. Engine electric components
  - c. Performance curve : KX61-3 EU, V1505-E2-BH-9-EU
  - d. Performance curve : KX71-3 EU, V1505-E2-BH-10 EU
  - e. Performance curve : KX71-3 PP, V1505-E2-BH-10
- IV. Hydraulic System
  - a. Hydraulic System Feature
  - b. Hydraulic circuit diagram
    - 1. KX61-3: EU – version
    - 2. KX71-3: EU – version
    - 3. KX71-3: PP – version
    - 4. Hydraulic components ; KX71-PP-version
  - c. Main pump
    - 1. Outer view
    - 2. structure
    - 3. P-Q performance curve
    - 4. Pump Specifications, Type : PVD-1B-28P-8G3-4575A
  - d. Control valve assy
    - 1. KX61-3: EU – version, Code No:RG248-61131, Maker: Hydro control
    - 2. KX71-3: EU – version, Code No:RG448-61131, Maker: Hydro control
    - 3. KX71-3: PP – version, Code No:RC348-61131, Maker: NABCO
    - 4. Control valve section : KX71-3 PP – version (RB448-61131)
  - e. Pilot valve
    - 1. EU – version
    - 2. KTC, KCL, KTA-version
    - 3. Technical data : Travel motor
  - f. Travel motor
    - 1. Structure
    - 2. Circuit diagram
  - g. Swivel motior
    - 1. Technical data
    - 2. Outer view
    - 3. Inner parts
    - 4. Sectional view (KX61-3, 71-3 Swivel motor assy)
  - h. Cylinder
    - 1. Major size
  - i. Rotary joint
  - j. Accessories of hydraulic components
    - 1. Unload valve (Change valve) : North America and Oceanea – version
    - 2. Change valve with accumulator : EU version
    - 3. TPSS valve (Two pattern selection system)
    - 4. Oil cooler
    - 5. Pilot filter
    - 6. Suction filter
    - 7. Return filter
    - 8. Check valve
  - k. Maintenance specification
    - 1. Main relief valve (at the measurement port on the machine)
    - 2. Overload relief valve (at the measurment port on the machine)
    - 3. Cylinder operating speed
    - 4. Cylinder natural fall amount
- V. Electrical System
  - a. Development concept
    - 1. Background of Adoption of New Meter
    - 2. Features of New Meter
    - 3. Electrical system : Functional comparison : KX61-3, KX71-3
  - b. Outline of Kubota ICS (Intelligent Control System)
  - c. Operating Mode
    - 1. Outline
    - 2. LCD display list
  - d. Service mode menues
    - 1. Outline
    - 2. Service mode flow chart
    - 3. Main menues and functions
  - e. Failure Diagnosis
    - 1. Failure display and diagnosis criteria
    - 2. Fail record in EEPROM
    - 3. self-diagnosis of controller unit
    - 4. Electrical component layout
    - 5. Service Mode KX61-3, KX71-3(Non-AI Non- anti-theft Non-S/O) ver 1.13
  - f. Circuit wiring diagram
    - 1. KX61-3, KX71-3 Export (EU) (US)
    - 2. KX61-3, KX71-3 Export standard type

Specification

Specification	Kubota KX61-3 Mini Excavator	Kubota KX71-3 Mini Excavator
Operating Weight	~2.5 t (2,500 kg)	~2.8 t (2,800 kg)
Transport Dimensions (L × W × H)	Length ~4.31 m, Width ~1.4 m, Height ~2.41 m	Length ~4.52 m, Width ~1.5 m, Height ~2.41 m
Track Width	300 mm	300 mm
