Ford Versatile 936, 956, 976 Tractor Repair Manual
$33.00
| 🚜 Equipment | |
|---|---|
| Brand | FORD |
| Type | Tractor |
| Model | 936, 956, 976 |
| 📄 Documents | |
| Type | Repair Manual |
| Publication | 40075691 |
| Language | English |
| Format | |
| No of Pages | 600 |
The Ford Versatile 936, 956, and 976 tractors were built during the mid to late 1980s and early 1990s as part of Versatile’s heavy-duty articulated 4WD lineup. Powered by Cummins 14.0L six-cylinder diesel engines, these tractors delivered between 310 hp in the 936 up to 360 hp in the 976, providing exceptional pulling power and reliability for large-scale farming. With robust drivetrains, high-capacity hydraulics, and rugged frame design, the 936–976 series was engineered for maximum productivity in demanding conditions.

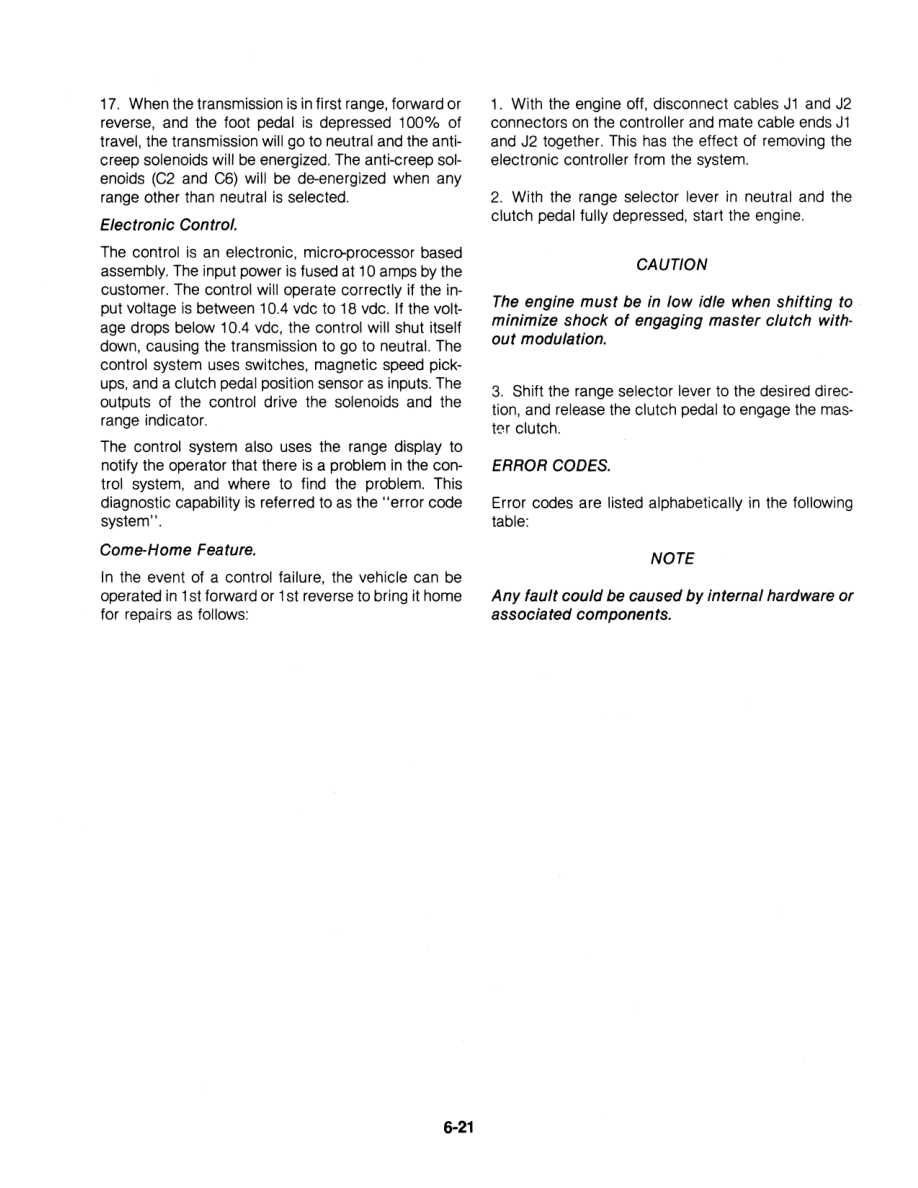

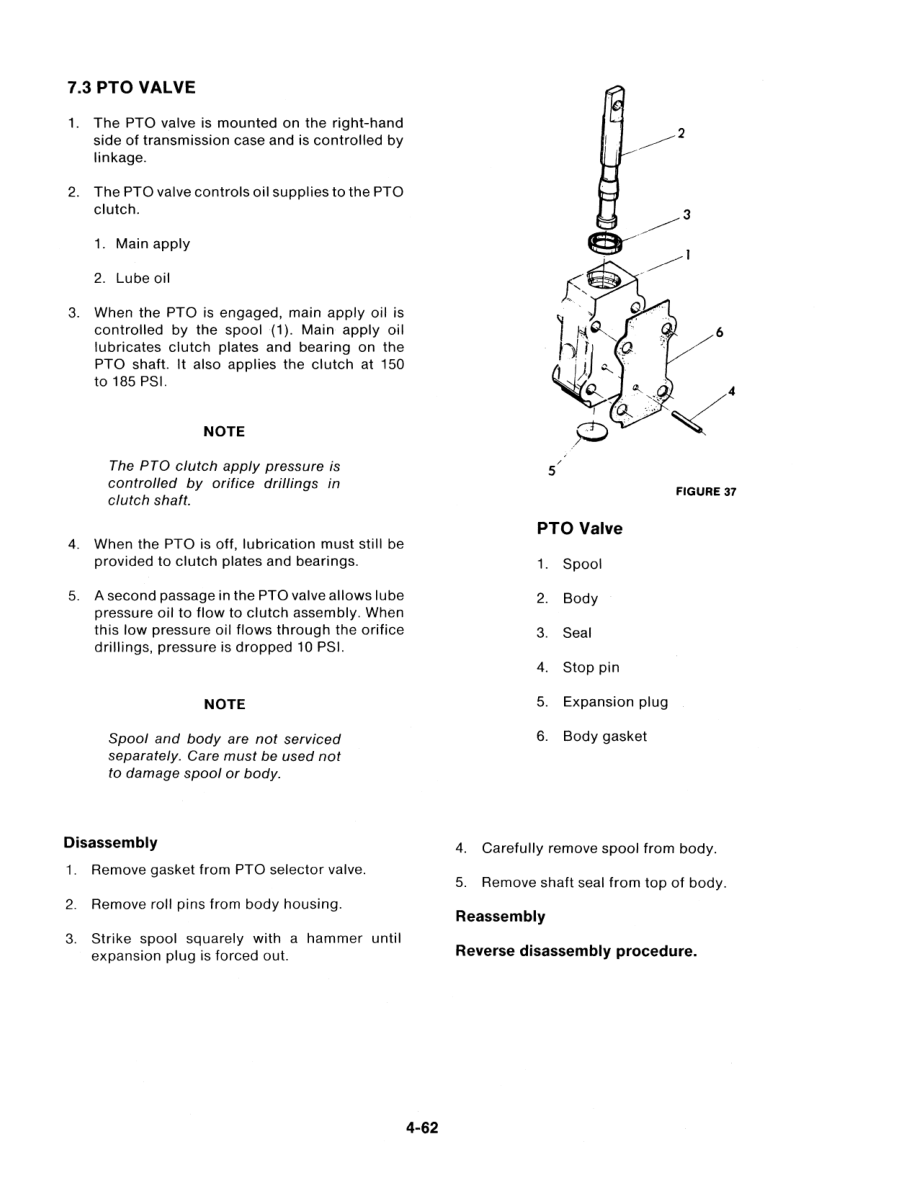

This official repair manual provides complete factory service information for the 936, 956, and 976 tractors. Organized into detailed sections, it covers specifications and data, engine systems, 12-speed and 15-speed mechanical transmissions, powershift transmissions, drive train, hydraulics, electrical systems, environmental systems, structures, three-point hitch, and brake systems. Step-by-step service procedures, torque specifications, and troubleshooting guides are included to ensure accurate diagnostics and repairs.
With wiring diagrams, hydraulic schematics, and complete separating/reassembly instructions, this manual is an essential resource for technicians, owners, and operators. Whether maintaining hydraulic flow at 24.5 gpm, servicing a 12-speed powershift transmission, or troubleshooting electrical components, this manual provides the comprehensive information needed to keep these tractors performing at factory standards.
Key Highlights
- Coverage for Ford Versatile 936 (310 hp), 956 (335 hp), and 976 (360 hp) articulated 4WD tractors
- Powered by Cummins 14.0L six-cylinder diesel engines
- Complete service procedures for engines, transmissions, hydraulics, and drivetrains
- Transmission coverage includes 12-speed, 15-speed, and powershift systems
- Hydraulic specifications: closed-center, load-sensing, ~24.5 gpm pump flow, ~2400 psi
- Rear three-point hitch lift capacities up to 21,700 lbs
- Braking system service with heavy-duty hydraulic disc brakes
- Electrical system troubleshooting with factory wiring diagrams
- Cab, environmental, and structural system servicing included
- Step-by-step disassembly/reassembly and torque specifications ensure accurate repairs
Table of Content
📙 Table of Contents
Contents
- CONTENTS
Section 1, Specifications And Data
- Section 1, Specifications and Data
Section 2, Engine Systems
- Section 2, Engine Systems
Section 3, 12-Speed Mechanical Transmission
- Section 3, 12-Speed Mechanical Transmission
Section 4, 15-Speed Mechanical Transmission
- Section 4, 15-Speed Mechanical Transmission
Section 5, Drive Train
- Section 5, Drive Train
Section 6, Powershift Transmission
- Section 6, Powershift Transmission
Section 7, Hydraulics
- Section 7, Hydraulics
Section 8, Electrical Systems
- Section 8, Electrical Systems
Section 9, Environmental Systems
- Section 9, Environmental Systems
Section 10, Structures
- Section 10, Structures
Section 11, Three-Point Hitch
- Section 11, Three-Point Hitch
Section 12, Brakes
- Section 12, Brakes
Index
- INDEX
Specification
| Specification | Versatile 936 | Versatile 956 | Versatile 976 |
|---|---|---|---|
| Years Produced | 1985 – 1988 :contentReference[oaicite:0]{index=0} | 1985 :contentReference[oaicite:1]{index=1} | 1985 – 1993 :contentReference[oaicite:2]{index=2} |
| Engine Type & Displacement | Cummins 14.0 L 6-cylinder diesel :contentReference[oaicite:3]{index=3} | Cummins 14.0 L 6-cylinder diesel :contentReference[oaicite:4]{index=4} | Cummins 14.0 L 6-cylinder diesel :contentReference[oaicite:5]{index=5} |
| Gross Engine Power | 310 hp (231.2 kW) :contentReference[oaicite:6]{index=6} | 335 hp (249.8 kW) :contentReference[oaicite:7]{index=7} | 360 hp (268.5 kW) :contentReference[oaicite:8]{index=8} |
| PTO Power (Claimed) | — (not clearly documented in sources) :contentReference[oaicite:9]{index=9} | — :contentReference[oaicite:10]{index=10} | 316 hp :contentReference[oaicite:11]{index=11} |
| Transmission | 12-speed constant mesh / 12-speed full power shift :contentReference[oaicite:12]{index=12} | Same family: 12-speed constant mesh / 12-speed full power shift :contentReference[oaicite:13]{index=13} | Same: 12-speed constant mesh / 12-speed full power shift :contentReference[oaicite:14]{index=14} |
| Fuel Capacity | 286 gallons (≈ 1082.5 L) :contentReference[oaicite:15]{index=15} | 286 gallons (≈ 1082.5 L) :contentReference[oaicite:16]{index=16} | 286 gallons (≈ 1082.5 L) :contentReference[oaicite:17]{index=17} |
| Hydraulic System / Flow / Pressure | Closed-center, load-sensing; 14.5 gal (≈ 54.9 L); pressure ~ 2400 psi; pump flow ~ 24.5 gpm; steering flow ~ 26.1 gpm :contentReference[oaicite:18]{index=18} | Same hydraulic spec as 936: closed-center, 14.5 gal; ~ 2400 psi; pump flow ~ 24.5 gpm; steering flow ~ 26.1 gpm :contentReference[oaicite:19]{index=19} | Hydraulic system ~ 15.3 gal (≈ 57.9 L); closed-center load-sensing; pressure ~ 2400 psi; pump flow ~ 24.5 gpm; steering flow ~ 26.1 gpm :contentReference[oaicite:20]{index=20} |
| Rear Hitch / Lift Capacity (at 24 in / 610 mm) | 21,700 lb (≈ 9,843 kg) :contentReference[oaicite:21]{index=21} | 21,700 lb (≈ 9,843 kg) :contentReference[oaicite:22]{index=22} | 13,036 lb (≈ 5,913 kg) :contentReference[oaicite:23]{index=23} |
| Dimensions & Weight | Wheelbase ~ 130 in (330 cm); Weight ~ 26,950 lb (≈ 12,224 kg) :contentReference[oaicite:24]{index=24} | Wheelbase ~ 130 in (330 cm); Weight ~ 24,500 lb (≈ 11,113 kg) :contentReference[oaicite:25]{index=25} | Wheelbase ~ 130 in (330 cm); Weight ~ 21,100 lb (≈ 9,570 kg) :contentReference[oaicite:26]{index=26} |
| Features / Other Mechanical | 4-WD articulated; outboard planetary final drives; hydraulic power steering; hydraulic disc brakes; cab w/ air-conditioning :contentReference[oaicite:27]{index=27} | Same mechanical features; 4-WD articulated; cab with AC; power steering; outboard planetary final drives :contentReference[oaicite:28]{index=28} | Same: 4-WD articulated; hydraulic disc brakes; cab standard with AC; independent rear PTO with Type 1000 rear PTO; steering is articulated power steering :contentReference[oaicite:29]{index=29} |
