Ford Versatile 700, 750, 800, 825, 850, 900, 950 Tractor Repair Manual
$32.00
| 🚜 Equipment | |||
|---|---|---|---|
| Brand | FORD | ||
| Type | Tractor | ||
| Model | 700, 750, 800, 825, 850, 900, 950 | ||
| 📄 Documents | |||
| Language | English | ||
| Format | |||
| Title | Serial/Model | Publication No. | Pages |
| Repair Manual | Series 2 | 40070060 | 348 |

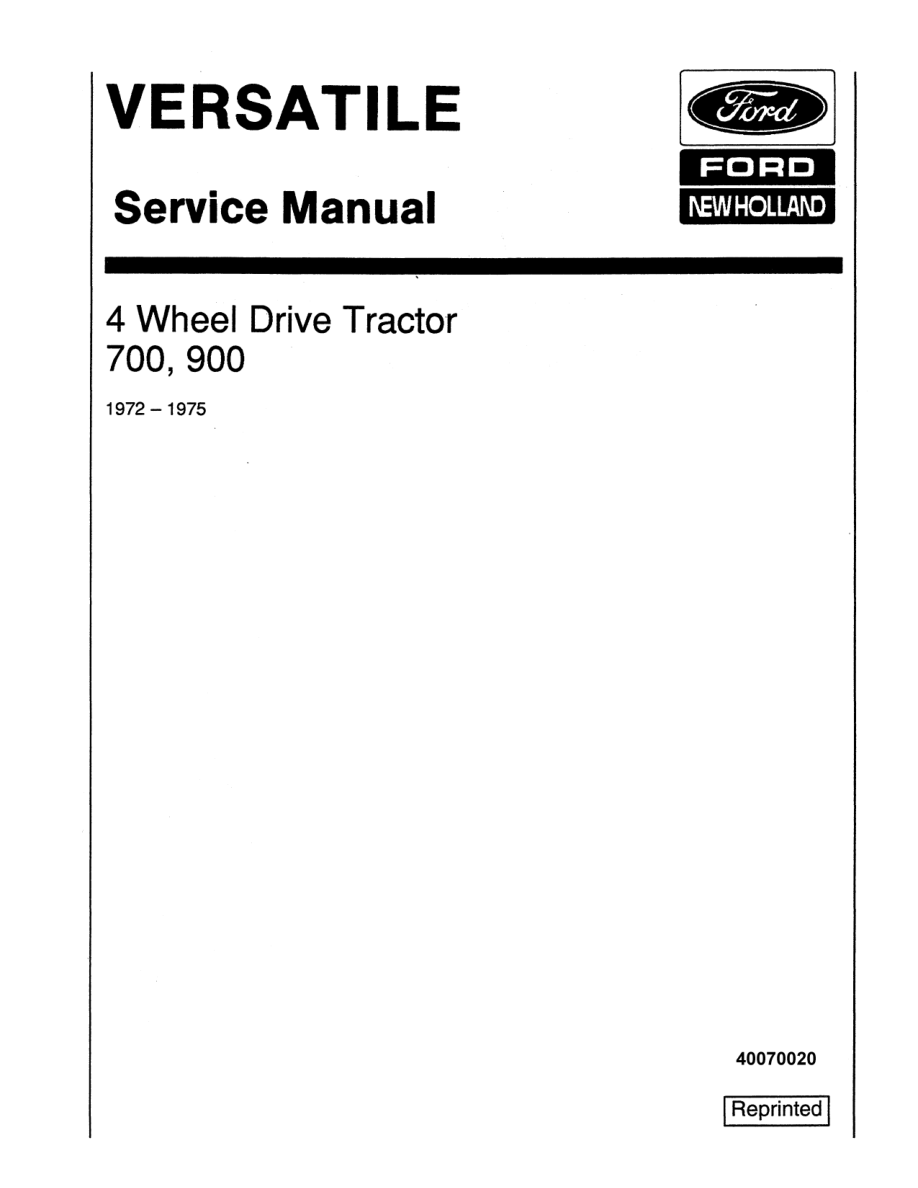

| Repair Manual | 4 Wheel Drive Tractor | 40070020 | 311 |
- Description
- Additional information
- Table of Content
- Specification
- Buyer Questions & Answers
- Reviews (0)
The Ford Versatile 700 through 950 tractors were produced during the 1970s and early 1980s as heavy-duty 4WD articulated machines built for large-scale farming. Powered by high-horsepower Cummins diesel engines ranging from 210 hp in the Versatile 700 up to 348 hp in the 950, these tractors were designed for unmatched pulling power, reliability, and field productivity. With robust frames, heavy planetary axles, and advanced hydraulics for the time, the 700–950 series became a benchmark in large-frame tractors.
This factory repair manual provides complete service coverage for the 700, 750, 800, 825, 850, 900, and 950 tractors. Organized into logical sections, the manual covers specifications, clutch service, transmissions, suspension seats, hitches, hydrostatic steering, electrical systems, cooling systems, air conditioning units (including Frigiking and Tecumseh compressors), hydraulics, drivetrain, and brake systems. Each section provides step-by-step procedures, troubleshooting guides, torque values, and schematics to ensure accurate servicing and repair.
From clutch and transmission adjustments to servicing the hydraulic system and PTO, this manual ensures owners, operators, and technicians can maintain their Versatile tractors to factory standards. Whether restoring an early 700 or maintaining the high-powered 950, this manual provides the technical detail needed to maximize reliability and service life.
Key Highlights
- Coverage for Ford Versatile 700, 750, 800, 825, 850, 900, and 950 articulated 4WD tractors
- Power range from 210 hp (Versatile 700) up to 348 hp (Versatile 950)
- Complete service chapters on clutches, transmissions, drivetrain, brakes, and hydraulics
- Hydraulic system specifications and servicing procedures for 700 and 900 models
- Detailed electrical and cooling system troubleshooting

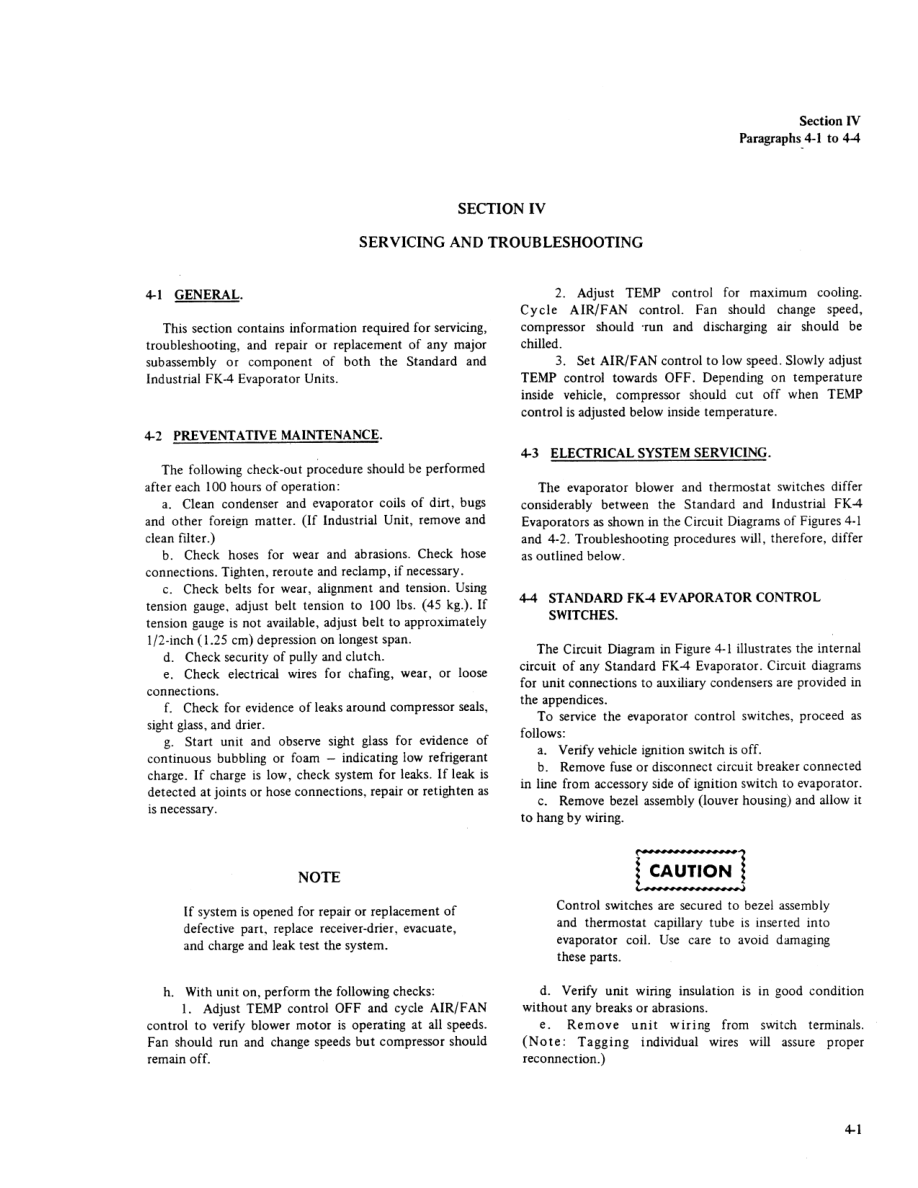

- Air conditioning system repair including Frigiking and Tecumseh units
- Hitch servicing with lift capacities exceeding 18,000 lbs at the ends
- Factory torque settings, wiring diagrams, and maintenance charts included
| Publication | 40070060, 40070020 |
|---|
Table of Content
📙 Table of Contents – Publication Number 40070060
700 And 900 Tractor Specifications
- 700 and 900 Tractor Specifications
Clutch Service
- Clutch Service
Transmission
- Transmission
Suspension Seat
- Suspension Seat
Hitch
- Hitch
Hydrostatic Steering System
- Hydrostatic Steering System
Electrical System
- Electrical System
Cooling System
- Cooling System
Air Conditioner Repair And Service
- Air Conditioner Repair and Service
Frigiking
- Frigiking
Tecumseh Automative Air Conditioning Compressors
- Tecumseh Automative Air Conditioning Compressors

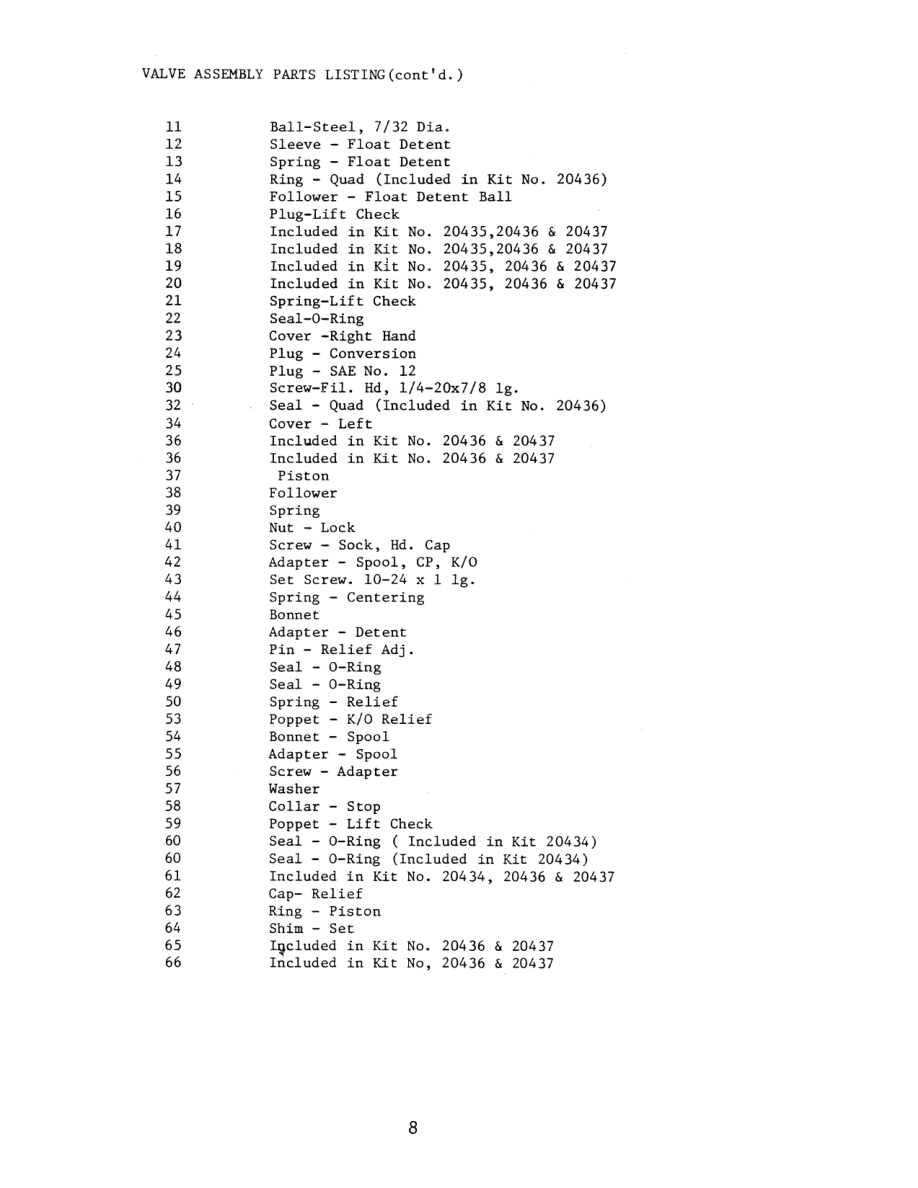

Hydraulics (700 And 900)
- Hydraulics (700 and 900)
Drive Train
- Drive Train
Brakes
- Brakes
Specification
| Specification | Versatile 700 | Versatile 950 |
|---|---|---|
| Years Produced | 1972 – 1977 :contentReference[oaicite:0]{index=0} | 1977 – 1982 :contentReference[oaicite:1]{index=1} |
| Engine Type & Displacement | Cummins 9.1 L 8-cylinder diesel :contentReference[oaicite:2]{index=2} | Cummins 14.8 L V8 turbocharged diesel (903 cu in) :contentReference[oaicite:3]{index=3} |
| Gross Engine Power | 210 hp (156.6 kW) :contentReference[oaicite:4]{index=4} | 348 hp (259.5 kW) :contentReference[oaicite:5]{index=5} |
| Fuel Capacity | 170 gal (≈ 643.5 L) :contentReference[oaicite:6]{index=6} | 185 gal (≈ 700.2 L) :contentReference[oaicite:7]{index=7} |
| Hydraulic System / Flow / Pressure | Capacity ~ 18.6 gal (≈ 70.4 L); open-center; pressure ~ 2000 psi; pump – 24 gpm; steering flow ~ 24 gpm :contentReference[oaicite:8]{index=8} | Capacity ~ 18.6 gal (≈ 70.4 L); open-center; pressure ~ 2000 psi; valves 3; pump flow ~ 24.6 gpm; steering flow ~ 27 gpm :contentReference[oaicite:9]{index=9} |
| Weight / Operating & Dimensions | Weight ~ 17,000 lb (≈ 7,711 kg); wheelbase 130 in (≈ 330 cm); tires front & rear 24.5×32 :contentReference[oaicite:10]{index=10} | Operating weight ~ 31,000 lb (≈ 14,061 kg); shipping ~ 18,045 lb (≈ 8,185 kg); wheelbase 130 in (≈ 330 cm) :contentReference[oaicite:11]{index=11} |
| Tires (Standard) | Front & Rear 24.5×32 :contentReference[oaicite:12]{index=12} | Front & Rear 24.5×32; other options: rear 20.8×38, 30.5×32; front 18.4×38 etc. :contentReference[oaicite:13]{index=13} |
| Transmission | 12-speed gear transmission :contentReference[oaicite:14]{index=14} | 12 forward / 4 reverse gear transmission; 12-speed gear type :contentReference[oaicite:15]{index=15} |
| Rear Hitch / Lift Capacity | Rear Type III hitch; lift ~ 18,270 lb at ends; ~ 12,370 lb at 24 in (≈ 5611 kg) :contentReference[oaicite:16]{index=16} | Rear Type III; same lift values: ~ 18,270 lb ends; ~ 12,370 lb at 24 in :contentReference[oaicite:17]{index=17} |
