Ford Versatile 500 Tractor Repair Manual

Ford Versatile 500 Tractor Repair Manual

$33.00

🚜 Equipment
Brand	FORD
Type	Tractor
Model	500
📄 Documents
Type	Repair Manual
Publication	PU4013
Language	English
Format	PDF
No of Pages	458

The Ford Versatile 500 tractor was introduced as one of Versatile’s high-horsepower articulated 4WD models, designed for large-scale farming and heavy tillage. Depending on generation, it was available in both late 1970s form (≈192 hp) and as a modern 2012–2017 version rated at 500 hp with a Cummins 14.9L diesel engine. Built for durability, performance, and operator comfort, the Versatile 500 delivers exceptional pulling power with advanced hydraulic capacity and a robust power shift transmission, making it ideal for high-demand agricultural operations.

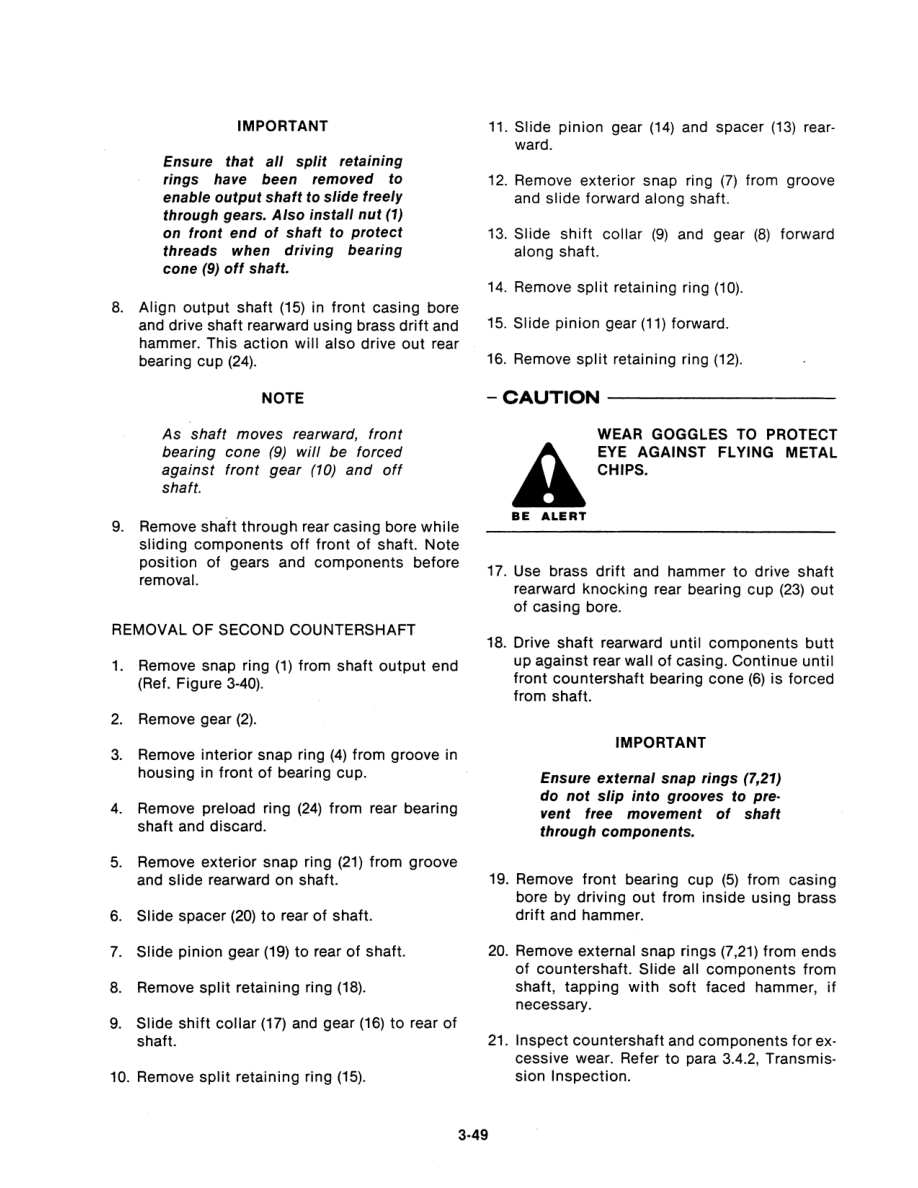

This comprehensive repair manual provides complete factory-level service information for the Versatile 500 tractor. It is organized into detailed sections covering servicing, engine systems, drivetrain, controls, hydraulics, electrical systems, environmental systems, and tractor structures. Each chapter provides step-by-step instructions, troubleshooting procedures, specifications, torque settings, and wiring/hydraulic schematics to ensure accurate diagnostics and effective repairs.

With coverage ranging from safety and servicing to full overhauls of engine, transmission, and hydraulic systems, this manual is an essential resource for technicians and operators maintaining the Versatile 500 to factory standards. Whether performing scheduled maintenance, troubleshooting electrical faults, or rebuilding drivetrain components, this manual ensures long service life and peak tractor performance.

Key Highlights

Full repair coverage for the Ford Versatile 500 articulated 4WD tractor
Engine options: Cummins diesel power from 192 hp (early models) up to 500 hp (modern series)
Transmission coverage includes constant mesh and full power shift systems
Hydraulic system specifications with 53 gpm flow and ~2,900 psi working pressure
Sections on engine, drivetrain, hydraulics, electrical, and control systems
Factory service data for cab, environmental, and structural systems
Step-by-step separating and reassembly instructions for complete overhauls
Wiring diagrams, hydraulic schematics, torque charts, and maintenance schedules included

Table of Content

📙 Table of Contents

Safety

Safety

Section 1: Servicing

Section 1: Servicing

Section 2: Engine Systems

Section 2: Engine Systems

Section 3: Drive Train

Section 3: Drive Train

Section 4: Controls

Section 4: Controls

Section 5: Hydraulic System

Section 5: Hydraulic System

Section 6: Electrical System

Section 6: Electrical System

Section 7: Environmental Systems

Section 7: Environmental Systems

Section 8: Structures

Section 8: Structures

Index

Index

Table Of Contents

Table of Contents

Specification

Specification	Versatile 500
Years Produced	1977 – 1979 (original) :contentReference[oaicite:1]{index=1} • 2012 – 2017 (modern full-power) :contentReference[oaicite:2]{index=2}
Engine Type & Displacement	Original: Cummins 8.3 L 8-cyl diesel :contentReference[oaicite:3]{index=3}; Modern: Cummins 14.9 L 6-cyl diesel :contentReference[oaicite:4]{index=4}
Gross Engine Power	Original ≈ 192 hp (143.2 kW) :contentReference[oaicite:5]{index=5}; Modern ≈ 500 hp (372.9 kW) :contentReference[oaicite:6]{index=6}
PTO Power (Claimed)	≈ 160 hp (original) :contentReference[oaicite:7]{index=7}; ≈ 400 hp (modern) :contentReference[oaicite:8]{index=8}
Transmission	Original: 15-speed constant mesh :contentReference[oaicite:9]{index=9}; Modern: 16-speed full power shift :contentReference[oaicite:10]{index=10}
Hydraulic System / Flow / Pressure	Closed-center, load-sensing; 4 to 6 remote valves; ≈ 53 gpm (200.6 L/min); relief pressure ~ 2,900 psi (200 bar) :contentReference[oaicite:11]{index=11}
Fuel Capacity	≈ 400 gallons :contentReference[oaicite:12]{index=12}
Operating Weight	≈ 42,000 lb (≈ 19,051 kg) :contentReference[oaicite:13]{index=13}
Wheelbase	≈ 154 in (≈ 391 cm) :contentReference[oaicite:14]{index=14}
Tires (standard)	Front & Rear: 710/70R38 :contentReference[oaicite:15]{index=15}
Steering / Brakes / Other Features	4-WD articulated; differential lock optional; hydrostatic power steering; dual dry-caliper brakes; cab with air-conditioning standard; final drives outboard planetary :contentReference[oaicite:16]{index=16}
Rear Hitch / Lift Capacity	Rear Hitch Type IV :contentReference[oaicite:17]{index=17}
Electrical System	12-volt system; alternator ~ 200 amps :contentReference[oaicite:18]{index=18}
