Ford TW5, TW15, TW25, TW35 Tractor Repair Manual
$35.00
| 🚜 Equipment | |
|---|---|
| Brand | FORD |
| Type | Tractor |
| Model | TW5, TW15, TW25, TW35 |
| 📄 Documents | |
| Type | Repair Manual |
| Publication | 40000580 |
| Language | English |
| Format | |
| No of Pages | 1466 |
The Ford TW series tractors – including the TW-5, TW-15, TW-25, and TW-35 – were produced during the 1980s as part of Ford’s high-horsepower tractor lineup. Designed for demanding row-crop and field operations, these tractors featured reliable Ford 6.6L six-cylinder diesel engines, dual-power transmissions, and heavy-duty hydraulics. Power outputs ranged from 125 hp in the TW-5 up to nearly 192 hp in the TW-35, making this series one of the most capable in Ford’s range at the time.
This official repair manual provides complete coverage of all four TW models, with detailed sections on engine, fuel, electrical, clutches, transmissions, PTO systems, rear axle, brakes, hydraulics, steering, and front axle assemblies. It also includes dedicated chapters on safety cabs and platforms, tractor separation procedures, and accessories, ensuring that technicians and operators have factory-level service guidance.
With step-by-step disassembly and reassembly instructions, torque specifications, wiring diagrams, and maintenance schedules, this manual is essential for accurate diagnostics, efficient servicing, and complete overhauls of Ford TW-series tractors. Whether maintaining the 7,150-lb rear hitch lift capacity, servicing the 16F/4R partial power shift transmission, or repairing the heavy-duty hydraulic system, this manual ensures reliable upkeep of your Ford tractor fleet.
Key Highlights
- Comprehensive repair coverage for Ford TW-5, TW-15, TW-25, and TW-35 tractors
- Engine outputs from 125 hp (TW-5) to 192 hp (TW-35) with robust 6.6L Ford diesel engines
- Detailed sections on engines, fuel systems, electrical systems, clutches, and transmissions
- Coverage of Power Take-Off, rear axle, brakes, hydraulics, steering, and front axle
- Includes factory specifications for hydraulic flow, pressure, and lift capacities
- Step-by-step separating and reassembly procedures for complete tractor overhaul
- Chapters on Ford tractor safety cabs, platforms, and accessory equipment
- Factory torque settings, wiring diagrams, and maintenance schedules included
Table of Content
📙 Table of Contents
Table Of Contents Vol. 1
- Table of Contents Vol. 1
Part 1 – Engine Systems
- Part 1 – Engine Systems
Part 2 – Fuel System
- Part 2 – Fuel System
Table Of Contents Vol. 2
- Table of Contents Vol. 2

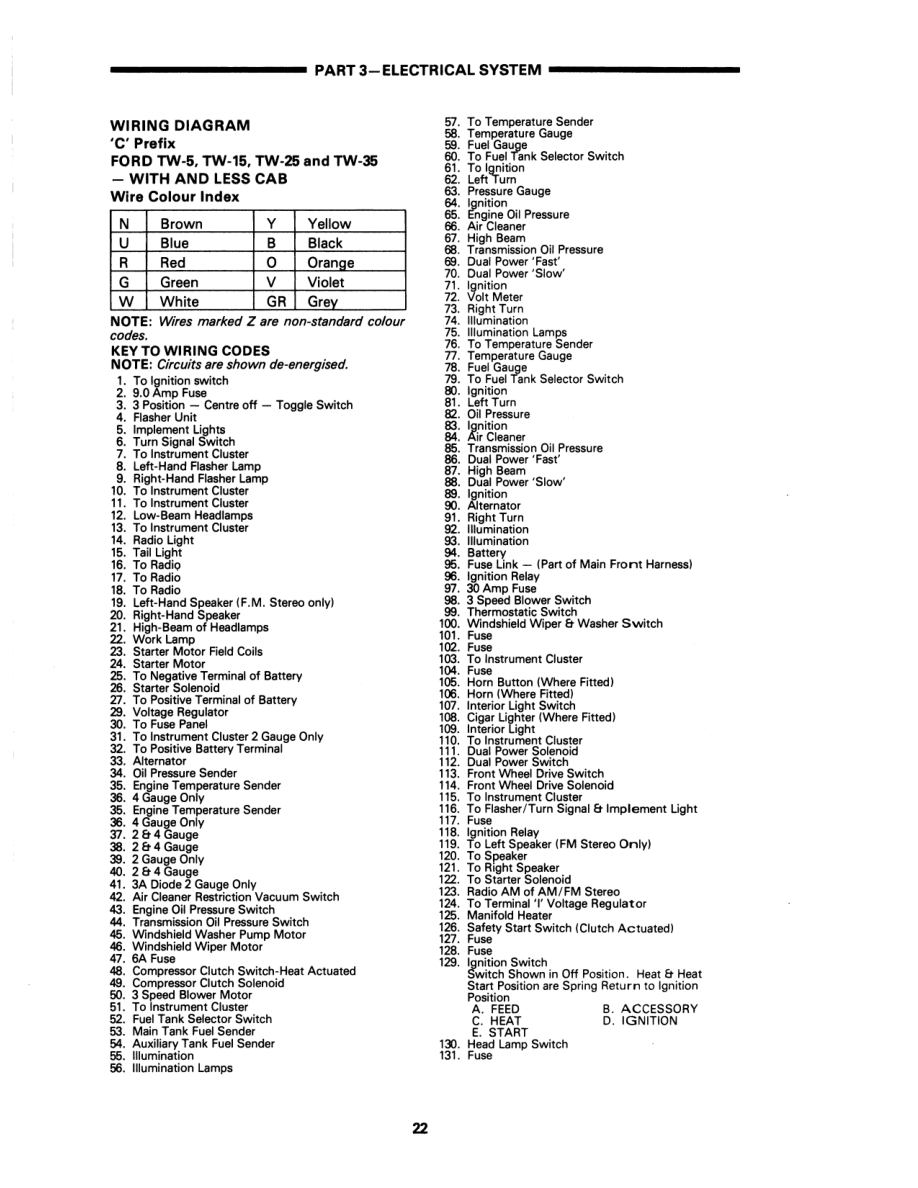

Part 3 – Electrical Systems
- Part 3 – Electrical Systems
Part 4 – Clutches
- Part 4 – Clutches
Table Of Contents Vol. 3
- Table of Contents Vol. 3
Part 5 – Transmission Systems
- Part 5 – Transmission Systems
Table Of Contents Vol. 4
- Table of Contents Vol. 4
Part 6 – Power Take-Off
- Part 6 – Power Take-Off
Part 7 – Rear Axle And Brakes
- Part 7 – Rear Axle and Brakes
Part 8 – Hydraulic System
- Part 8 – Hydraulic System
Table Of Contents Vol. 5
- Table of Contents Vol. 5
Part 9 – Steering System
- Part 9 – Steering System
Part 10 – Front Axle
- Part 10 – Front Axle
Table Of Contents Vol. 6
- Table of Contents Vol. 6
Part 11 – Ford Tractor Safety Cabs And Platforms
- Part 11 – Ford Tractor Safety Cabs and Platforms
Part 12 – Separating The Tractor
- Part 12 – Separating The Tractor
Part 13 – Accessories And General
- Part 13 – Accessories and General
Specification
| Specification | TW-5 | TW-15 | TW-25 | TW-35 |
|---|---|---|---|---|
| Years Produced | 1983 – 1990 :contentReference[oaicite:0]{index=0} | 1983 – 1990 :contentReference[oaicite:1]{index=1} | 1983 – 1989 :contentReference[oaicite:2]{index=2} | 1983 – 1986 :contentReference[oaicite:3]{index=3} |
| Engine Type & Displacement | Ford 6-cyl diesel, 6.6 L (401 cu in), bore×stroke 112×112 mm :contentReference[oaicite:4]{index=4} | Same 6.6 L Ford 6-cyl diesel :contentReference[oaicite:5]{index=5} | 6.6 L 6-cyl diesel (Ford 401 engine) :contentReference[oaicite:6]{index=6} | 6.6 L 6-cyl diesel, turbocharged intercooled version in some cases :contentReference[oaicite:7]{index=7} |
| Gross Engine Power | 125 hp (93.2 kW) :contentReference[oaicite:8]{index=8} | 140 hp (104.4 kW) :contentReference[oaicite:9]{index=9} | ≈ 156 hp (116.3 kW) :contentReference[oaicite:10]{index=10} | 192 hp (143.2 kW) :contentReference[oaicite:11]{index=11} |
| PTO Power (Claimed / Tested) | 105 hp claimed; ~ 105.7 hp tested :contentReference[oaicite:12]{index=12} | 120 hp claimed; tested approx 121.4 hp :contentReference[oaicite:13]{index=13} | — (not reliably found) :contentReference[oaicite:14]{index=14} | 170 hp claimed; ~ 171.1 hp tested :contentReference[oaicite:15]{index=15} |
| Transmission | Partial Power Shift, 16 forward / 4 reverse :contentReference[oaicite:16]{index=16} | Two-speed Power Shift option; 24 speeds in some variants :contentReference[oaicite:17]{index=17} | Same family partial power shift; dual-power modes; 16F/4R :contentReference[oaicite:18]{index=18} | Partial Power Shift, dual-power (shift-on-move between gear-mode / power-mode); 16 forward / 4 reverse :contentReference[oaicite:19]{index=19} |
| Fuel Capacity | ≈ 58 gal (≈ 219.5 L) :contentReference[oaicite:20]{index=20} | ≈ 58 gal :contentReference[oaicite:21]{index=21} | ≈ 75 gal (≈ 283.9 L) :contentReference[oaicite:22]{index=22} | ≈ 75 gal standard; up to 100 gal in “Series II” version :contentReference[oaicite:23]{index=23} |
| Hydraulic System / Flow / Pressure | Hydraulic capacity ~ 18.25 gal (≈ 69.1 L); open center; pressure ~ 2500 psi; pump flow ~ 16 gpm; steering flow ~ 4.2 gpm :contentReference[oaicite:24]{index=24} | Same nominal; some variants with larger hydraulic tank or Series II option :contentReference[oaicite:25]{index=25} | ≈ 18.25 gal; ~ 2500 psi; pump flow ~ 15.3 gpm; total flow ~ 27.5 gpm :contentReference[oaicite:26]{index=26} | ≈ 23 gal (≈ 87.1 L); ~ 2500 psi; pump flow ~ 20 gpm; total flow ~ 32.2 gpm; steering flow ~ 4.2 gpm :contentReference[oaicite:27]{index=27} |
| Rear Hitch / Lift Capacity (at 24″ / 610 mm) | 7,150 lb (≈ 3,243 kg); up to 9,450 lb with optional auxiliary rams :contentReference[oaicite:28]{index=28} | Same 7,150 lb base; 9,450 lb with optional aux rams :contentReference[oaicite:29]{index=29} | Same values for hitch & lift (7,150 lb base; 9,450 lb w/ aux) :contentReference[oaicite:30]{index=30} | Same base and optional auxiliary ram lift (7,150 / 9,450 lb) :contentReference[oaicite:31]{index=31} |
| Dimensions & Weight | Wheelbase 2WD ≈ 108 in (274 cm); 4WD ≈ 105 in (266 cm); Weight 11,323-13,200 lb depending on configuration :contentReference[oaicite:32]{index=32} | Wheelbase same as TW-5; weight ≈ 11,355-14,300 lb depending on spec :contentReference[oaicite:33]{index=33} | Weight ≈ 12,267-15,500 lb; similar wheelbase values, + some variants for tire / duals etc :contentReference[oaicite:34]{index=34} | Weight ≈ 13,686-15,100 lb; 2WD/4WD / cab / ballasted variants affect weight; wheelbase 2WD ≈ 108 in; 4WD ≈ 110.7 in (281 cm) :contentReference[oaicite:35]{index=35} |
| Tires (standard) | Front: 11.00×16; Rear: 18.4×38 :contentReference[oaicite:36]{index=36} | Front: 10.00-16; Rear: 18.4×38 :contentReference[oaicite:37]{index=37} | Same rear; front similar to TW-5 & TW-15 variants depending on 2WD or 4WD :contentReference[oaicite:38]{index=38} | Front: 11.00×16; Rear: 18.4×38 :contentReference[oaicite:39]{index=39} |
| Mechanical / Brakes / Cab / Other Features | 2- or 4-WD selectable; hydraulic rear differential lock; power steering; wet disc brakes; ROPS; optional air-conditioned cab :contentReference[oaicite:40]{index=40} | Same; improvements in cab comfort; dual-power system more common; optional Series II variants :contentReference[oaicite:41]{index=41} | Same family; operator’s cab or ROPS; remote valves optional; heavier duty options depending on variant :contentReference[oaicite:42]{index=42} | Cab standard with air-conditioning; optional ROPS; wet disc brakes; power steering; more industrial comfort and heavier ballasted variants available :contentReference[oaicite:43]{index=43} |
