Ford Tractor Series 5000, 5500, 5550, 7000 Repair Manual
$34.00
| 🚜 Equipment | |
|---|---|
| Brand | FORD |
| Type | Tractor |
| Model | 5000, 5500, 5550, 7000 |
| 📄 Documents | |
| Type | Repair Manual |
| Publication | 40200050-2 |
| Language | English |
| Format | |
| No of Pages | 1701 |
The Ford 5000, 5500, 5550, and 7000 tractors were among Ford’s most successful medium-horsepower utility and industrial machines produced in the late 1960s and 1970s. The Ford 5000 was a versatile farm tractor rated at around 70 hp, while the 5500 and 5550 industrial models were adapted for loader and backhoe applications with reinforced frames, heavy-duty axles, and high-capacity hydraulics. The Ford 7000, introduced in 1971, expanded the series with a turbocharged diesel engine delivering up to 93 hp, designed for heavier row-crop and field operations.
This comprehensive repair manual provides complete factory service coverage for these models. Organized into detailed sections, it covers engine systems, fuel systems, electrical, multiple transmission types (4-speed, 6-speed, 7/8-speed, Select-O-Speed, and reversing transmissions), power take-off, rear axle and brakes, hydraulic systems, steering, and front axle. Specialized chapters also address loader-backhoe hydraulics, accessories, and scheduled maintenance procedures for industrial and farm variants.
With clear step-by-step procedures, wiring diagrams, torque specifications, and tractor separation instructions, this manual ensures that owners, operators, and service technicians can properly maintain, repair, and overhaul the Ford 5000, 5500, 5550, and 7000 series tractors to factory standards.
Key Highlights
- Covers Ford 5000 farm tractor, 5500/5550 industrial loader-backhoe tractors, and 7000 turbo diesel tractor (Applicable for Ford Tractor 4000, 4400 and 4500 from Year 1965 till 1975)
- Power ratings from 70 hp (5000/5500) up to 93 hp (7000 turbocharged)
- Detailed sections on engines, fuel, electrical, transmissions, PTO, rear axles, brakes, hydraulics, and steering
- Transmission coverage includes 4-, 6-, 7-, 8-speed, Select-O-Speed, and power reversing systems
- Industrial coverage includes loader-backhoe hydraulic systems, heavy-duty clutches, and reinforced front axles
- Hydraulic system servicing with pump flow, capacity, and troubleshooting procedures
- Rear hitch lift and PTO specifications included for field and industrial configurations
- Step-by-step separating and reassembly instructions for complete tractor overhauls
- Factory torque settings, maintenance charts, and wiring diagrams included
Table of Content
📙 Table of Contents
40340070A-Linked Pdf
- 40340070A-Linked pdf
- New Models
- 7000 Supplement
- Part 1: Engine Systems
- Part 2: Fuel Systems
- Part 3: Electrical System
40340070B-Linked Pdf
- 40340070B-Linked pdf
- Part 4: Clutches
- Part 5: Four-Speed Transmission
- Part 6: Six-Speed Transmission
- Part 7: Seven and Eight-Speed Transmission
- Part 8: Select-O-Speed Transmission
- Part 9: Power Take-Off
40340070C-Linked Pdf
- 40340070C-Linked pdf
- Part 10: Rear Axle and Brakes
- Part 11: Hydraulic Systems

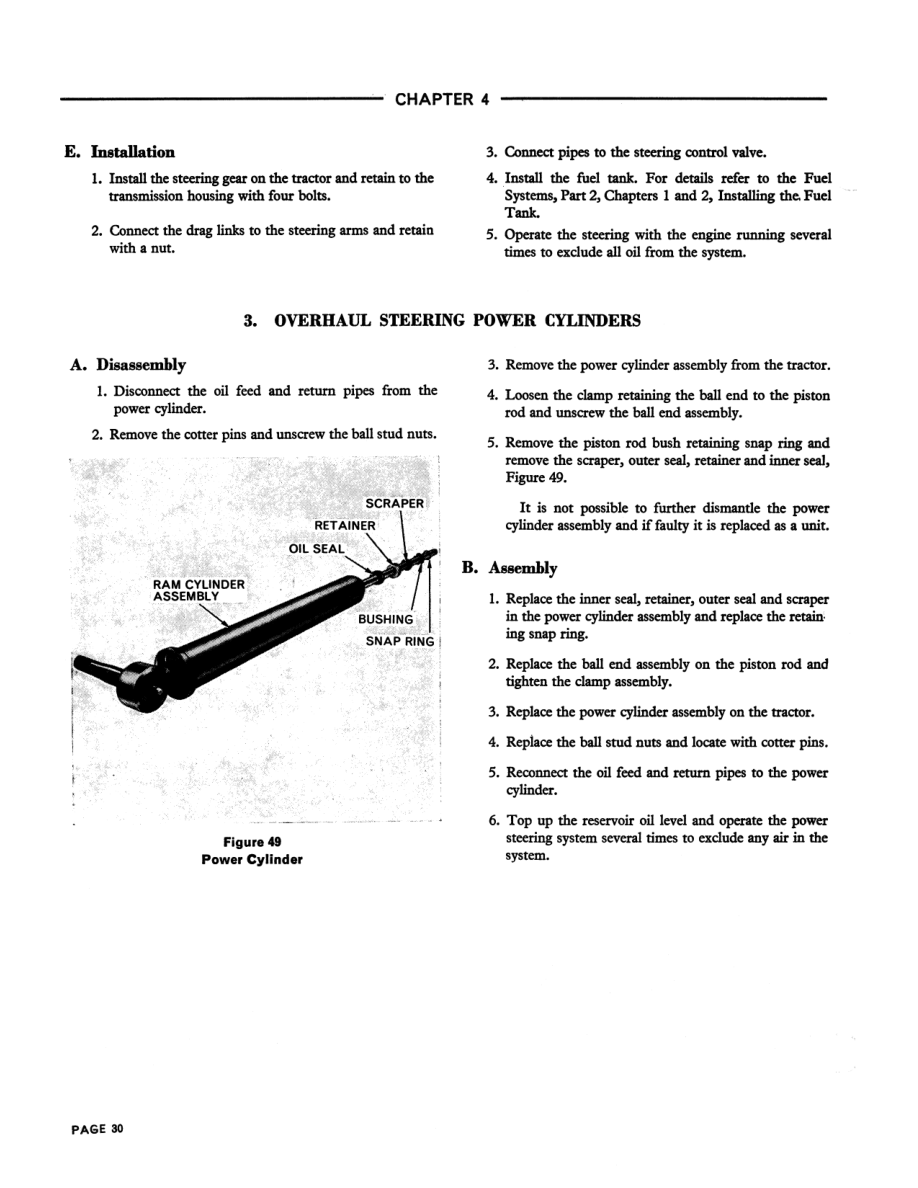

- Part 12: Steering Systems
- Part 13: Front Axle
- Part 14: Wheels and Tyres
- Part 15: Separating The Tractor
- Part 16: Accessories and General
- Part 17: Tractor Maintenance Schedule
40340070D-Linked Pdf
- 40340070D-Linked pdf
- Part 18: Manual Reversing Transmissions
- Part 19: 4-Speed Power Reversing Transmission
- Part 20: 6-Speed Power Reversing Transmission

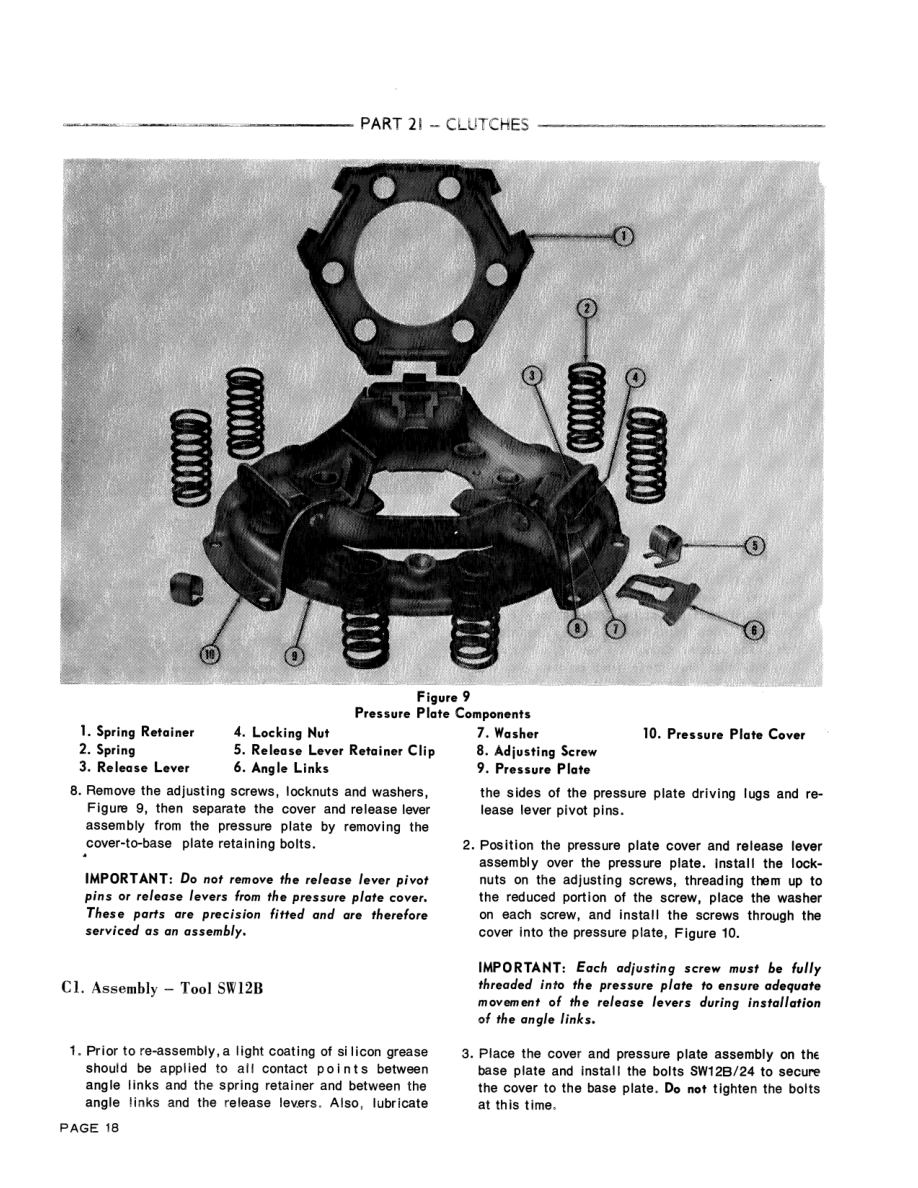

- Part 21: Clutches Ford 3400, 3500, 4400, and 4500
- Part 22: Steering and Front Axle
- Part 23: Separating The Tractor
40340070E-Linked Pdf
- 40340070E-Linked pdf
- Part 24: Loader-Backhoe and Hydraulics
- Part 25: Miscellaneous
Specification
| Specification | Model 5000 | Model 5500 / 5550 | Model 7000 |
|---|---|---|---|
| Years Produced | 1965 – 1976 :contentReference[oaicite:0]{index=0} | ≈ 1966 – early-1970s :contentReference[oaicite:1]{index=1} | 1971 – 1975 :contentReference[oaicite:2]{index=2} |
| Engine / Gross Power | ≈ 69 hp (≈ 51.5 kW) (gas/diesel variants) :contentReference[oaicite:3]{index=3} | ≈ 70 hp (net) for 5500 backhoe-loader variant :contentReference[oaicite:4]{index=4} | ≈ 93 hp gross; ≈ 89 hp net :contentReference[oaicite:5]{index=5} |
| PTO Power (Claimed / Tested) | Diesel: ~ 55.9 hp; Gas: ~ 60.3 hp; PTO tested ~ 60.37 hp :contentReference[oaicite:6]{index=6} | Not well documented in all sources; backhoe variant shows typical PTO per engine class ≈ around 70-hp range :contentReference[oaicite:7]{index=7} | ≈ 83 hp claimed PTO; tested ~ 83.49 hp :contentReference[oaicite:8]{index=8} |
| Drawbar Power (Claimed / Tested) | ~ 50.85 hp tested drawbar for earlier versions; some later figures ~ 59.9 hp drawbar tested in certain trims :contentReference[oaicite:9]{index=9} | Not reliably found; likely somewhat less than gross engine hp due to configuration and attachments :contentReference[oaicite:10]{index=10} | ~ 66.66 hp drawbar tested :contentReference[oaicite:11]{index=11} |
| Transmission Options | 8-speed; 10-speed full power shift; 16-speed partial power shift (depending on variant) :contentReference[oaicite:12]{index=12} | Backhoe / industrial transmissions; 6-speed shuttle in some; matching power class of 5000 series :contentReference[oaicite:13]{index=13} | 8-speed constant mesh; 16-speed two-speed power shift :contentReference[oaicite:14]{index=14} |
| Hydraulic System / Pump Flow / Pressure | open centre; ≈ 8.7 gal (≈ 32.9 L) hydraulic capacity; pressure ~ 2,500 psi; pump flow ~ 6.0 gpm; steering flow ~ 4.5 gpm :contentReference[oaicite:15]{index=15} | For 5500 backhoe-loader variant: large hydraulic capacity, industrial use; detailed values limited in sources :contentReference[oaicite:16]{index=16} | Type open centre; pressure ~ 2,500 psi; pump flow ~ 6.0 gpm; steering flow ~ 2.74 gpm :contentReference[oaicite:17]{index=17} |
| Fuel Capacity | ≈ 20 gal (≈ 75.7 L) :contentReference[oaicite:18]{index=18} | Same or similar fuel tank sizes in many industrial / backhoe variants; ~ 20 gal often seen :contentReference[oaicite:19]{index=19} | ≈ 20 gal (≈ 75.7 L) :contentReference[oaicite:20]{index=20} |
| Rear Hitch / Lift Capacity | Rear hitch Type II/I; independent PTO; 540/1000 PTO speeds; lift arms capable for implements commensurate with ~50-60 hp class :contentReference[oaicite:21]{index=21} | Industrial / backhoe versions with heavy hitch / frame; exact lift at 24″ not well-documented in available sources :contentReference[oaicite:22]{index=22} | Rear Type II hitch; position & draft control; independent PTO; 540/1000 optional; typical lift arms capacity similar class ‒ ~ high 60-hp-class implement lift capacity :contentReference[oaicite:23]{index=23} |
| Weight & Dimensions | Wheelbase ~ 87.5 in (222 cm); weight 5,740 to 6,250 lbs depending on variant; front tyre 6.00-16; rear 12.4-38 :contentReference[oaicite:24]{index=24} | For 5500 backhoe-loader: Operating weight 17,200 lbs in some variants; dimensions (wheelbase ~ 88 in), tyres heavier duty :contentReference[oaicite:25]{index=25} | Wheelbase ~ 87.5 in (222 cm); weight ~ 6,300 lbs (≈ 2,857 kg); front tire 6.00-16; rear 13.6-38 :contentReference[oaicite:26]{index=26} |
| Tires (standard) | Front 6.00-16; Rear 12.4-38 :contentReference[oaicite:27]{index=27} | Industrial / backhoe tyre sizes: front ~ 8.25-20, rear ~ 16.9-28 etc in many cases :contentReference[oaicite:28]{index=28} | Front 6.00-16; Rear 13.6-38 :contentReference[oaicite:29]{index=29} |
| Steering / Brakes / Operator Station / Other Features | 2-WD standard; rear differential lock; power assist or hydrostatic steering on row-crop versions; wet disc or mechanical brakes; open operator station; optional accessories :contentReference[oaicite:30]{index=30} | Backhoe / industrial versions include heavier duty frames; dual-purpose steering; robust brakes; optional cab; open operator station or cab depending on variant :contentReference[oaicite:31]{index=31} | 2-WD standard; manual steering with optional hydrostatic/power assist; open station with optional cab; wet disc rear brakes; differential type control with position/draft hitch control :contentReference[oaicite:32]{index=32} |
