Ford Tractor Series 2000, 3000, 3400, 3500, 3550 Repair Manual
$34.00
| 🚜 Equipment | |
|---|---|
| Brand | FORD |
| Type | Tractor |
| Model | 2000, 3000, 3400, 3500, 3550 |
| 📄 Documents | |
| Type | Repair Manual |
| Publication | 40200050-1 |
| Language | English |
| Format | |
| No of Pages | 1701 |
The Ford 2000, 3000, 3400, 3500, and 3550 tractors were produced through the 1960s and 1970s as part of Ford’s durable utility and industrial tractor lineup. Built for reliability, versatility, and ease of service, these models range from farm-focused 2000 and 3000 series to industrial-duty 3400, 3500, and 3550 machines equipped with stronger front axles, loader/backhoe capability, and enhanced hydraulics. Power outputs range from 31 PTO hp in the Ford 2000 to nearly 40 PTO hp in the 3000, 3500, and 3550 series, making them ideal for mowing, loader work, light construction, and general farm tasks.
This factory repair manual provides complete technical coverage for these tractors, with detailed sections on engine, fuel, electrical, transmission, PTO, rear axle, brakes, hydraulics, steering, and wheels. It also includes coverage of multiple transmission types including 4-, 6-, 7-, 8-speed gearboxes, the Select-O-Speed system, and power reversing transmissions. Supplements extend coverage to industrial models such as the 3400, 3500, and 3550, with service procedures for loader-backhoe systems, clutches, and heavy-duty front axles.
The manual is structured for professional servicing with clear step-by-step instructions, torque specifications, wiring diagrams, lubrication data, and scheduled maintenance charts. From basic adjustments to complete overhauls, this manual ensures technicians and operators can maintain peak performance and prolong service life of their Ford tractors.
Key Highlights
- Full repair coverage for Ford 2000, 3000, 3400, 3500, and 3550 tractors – (Applicable for Ford Tractor 2000, 3000, 3400, 3500 and 3550 from Year 1965 till 19750)
- Engine outputs from 45–50 hp gross with 31–40 hp PTO power
- Sections on multiple transmission options: 4-, 6-, 7-, 8-speed, Select-O-Speed, and power reversing
- Comprehensive chapters on clutches, PTO, rear axle, brakes, hydraulics, and steering
- Industrial-specific content for 3400, 3500, and 3550 including loader-backhoe hydraulics and heavy-duty front axle servicing
- Wheels, tyres, accessories, and complete maintenance schedules included
- Step-by-step separating procedures for full tractor teardown and reassembly
- Factory specifications, torque values, and wiring schematics for accurate repairs
Table of Content
📙 Table of Contents
40340070A-Linked Pdf
- 40340070A-Linked pdf
- New Models
- 7000 Supplement
- Part 1: Engine Systems
- Part 2: Fuel Systems
- Part 3: Electrical System
40340070B-Linked Pdf
- 40340070B-Linked pdf
- Part 4: Clutches
- Part 5: Four-Speed Transmission
- Part 6: Six-Speed Transmission
- Part 7: Seven and Eight-Speed Transmission

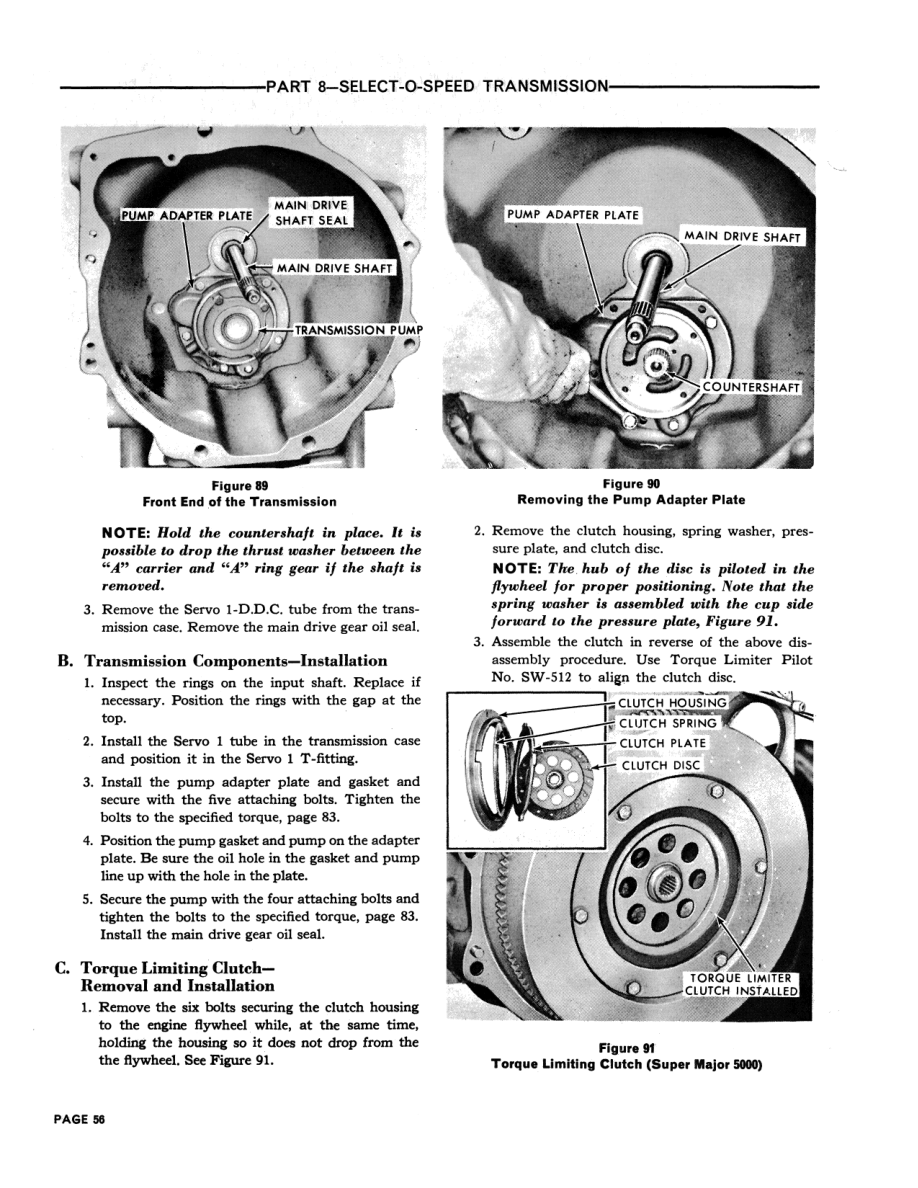

- Part 8: Select-O-Speed Transmission
- Part 9: Power Take-Off
40340070C-Linked Pdf
- 40340070C-Linked pdf
- Part 10: Rear Axle and Brakes
- Part 11: Hydraulic Systems

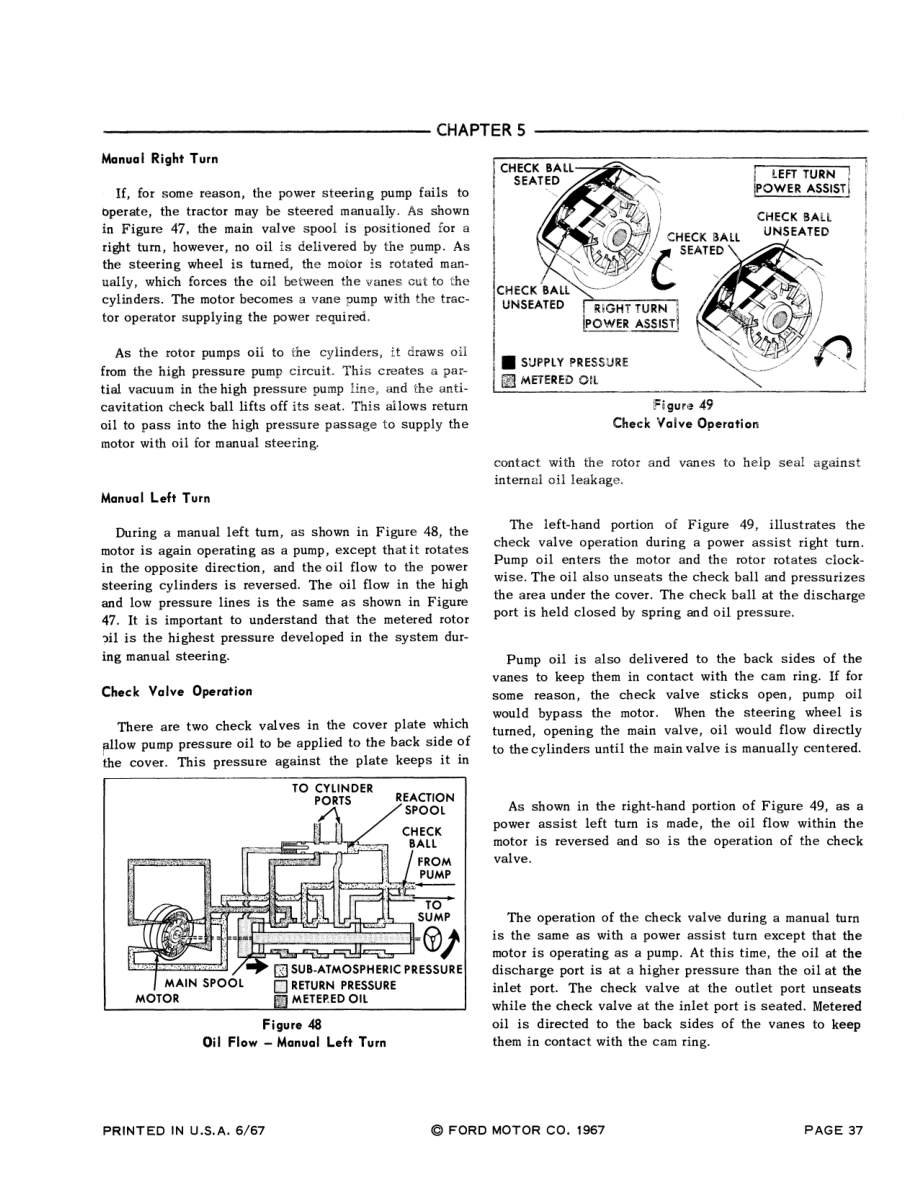

- Part 12: Steering Systems
- Part 13: Front Axle
- Part 14: Wheels and Tyres
- Part 15: Separating The Tractor
- Part 16: Accessories and General
- Part 17: Tractor Maintenance Schedule
40340070D-Linked Pdf
- 40340070D-Linked pdf
- Part 18: Manual Reversing Transmissions
- Part 19: 4-Speed Power Reversing Transmission
- Part 20: 6-Speed Power Reversing Transmission
- Part 21: Clutches Ford 3400, 3500, 4400, and 4500
- Part 22: Steering and Front Axle
- Part 23: Separating The Tractor
40340070E-Linked Pdf
- 40340070E-Linked pdf
- Part 24: Loader-Backhoe and Hydraulics
- Part 25: Miscellaneous
Specification
| Specification | Model 2000 | Model 3000 | Model 3400 | Model 3500 | Model 3550 |
|---|---|---|---|---|---|
| Years Produced | 1962 – 1975 :contentReference[oaicite:0]{index=0} | 1965 – 1975 :contentReference[oaicite:1]{index=1} | ~1968-1975 (Utility / Industrial version of 3000-series) :contentReference[oaicite:2]{index=2} | 1965 – 1972 :contentReference[oaicite:3]{index=3} | 1972 – 1975 :contentReference[oaicite:4]{index=4} |
| Gross / Net Engine Power | ≈ 48.4 hp gross :contentReference[oaicite:5]{index=5} | ≈ 46.7 hp net :contentReference[oaicite:6]{index=6} | Similar to 3000 (≈ 45-50 hp) depending on version :contentReference[oaicite:7]{index=7} | 46.7 hp net :contentReference[oaicite:8]{index=8} | ≈ 50 hp net :contentReference[oaicite:9]{index=9} |
| PTO Power (Claimed) | ≈ 31 hp :contentReference[oaicite:10]{index=10} | ≈ 38-40 hp depending on PTO / transmission :contentReference[oaicite:11]{index=11} | ≈ same as 3000 (≈ 38-40 hp) :contentReference[oaicite:12]{index=12} | ≈ 39.1 hp (gas) / ~39.4 hp (diesel) :contentReference[oaicite:13]{index=13} | ≈ 38 hp (claimed) :contentReference[oaicite:14]{index=14} |
| Fuel Capacity | 13 gal (≈ 49.2 L) :contentReference[oaicite:15]{index=15} | 13 gal (≈ 49.2 L) :contentReference[oaicite:16]{index=16} | ≈ same as 3000 (≈ 13 gal) :contentReference[oaicite:17]{index=17} | 16 gal (≈ 60.6 L) :contentReference[oaicite:18]{index=18} | (not found) – likely similar to 3500 or slightly more due to industrial enhancements :contentReference[oaicite:19]{index=19} |
| Hydraulic System Capacity / Pressure / Flow | ≈ 2 gal (hydraulic oil capacity), open-center; pressure ~ 2000 psi :contentReference[oaicite:20]{index=20} | ≈ 6.3 gal system; pressure ~ 2500 psi; pump flow ~5.0 gpm; steering flow ~4.25 gpm :contentReference[oaicite:21]{index=21} | Likely same as or near 3000 versions | ≈ 5.1 gal hydraulic system; pressure ~ 2500 psi; optional |
