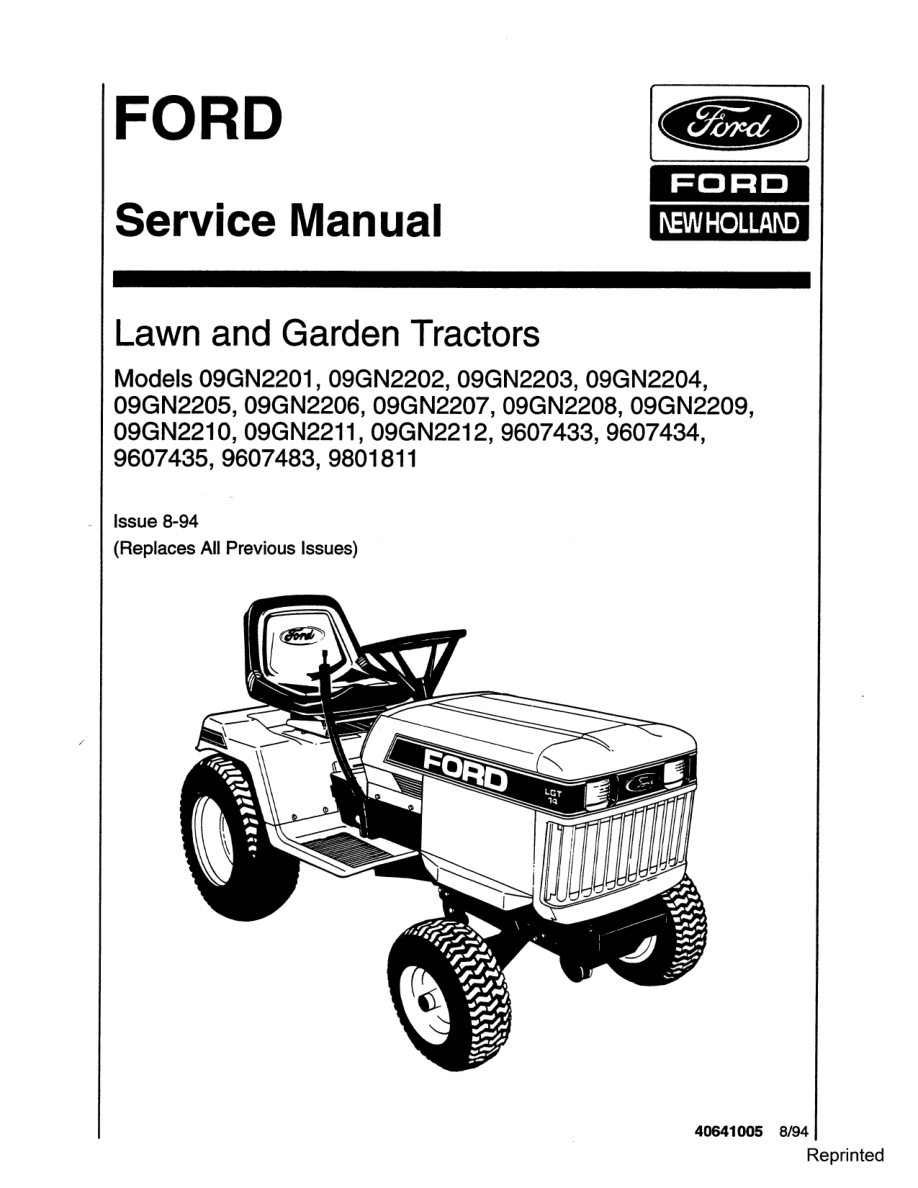

Ford LGT12, LGT14, LGT17, LGT18H Lawn Tractor Repair Manual
$23.00
| 🚜 Equipment | |
|---|---|
| Brand | FORD |
| Type | Lawn and Garden Tractor |
| Model | LGT12, LGT14, LGT17, LGT18H |
| 📄 Documents | |
| Type | Repair Manual |
| Publication | 40641005 |
| Language | English |
| Format | |
| No of Pages | 121 |
The Ford LGT12, LGT14, LGT17, and LGT18H Lawn Tractors are robust garden tractors designed for residential and light-duty commercial applications. Built during the 1980s, these models feature durable Kohler single and twin-cylinder gasoline engines with horsepower ranging from 12 hp (LGT12) up to 18 hp (LGT18H). With both gear-drive and hydrostatic transmission options, the LGT series offers flexibility and smooth control for mowing, towing, and yard maintenance tasks. Compact dimensions, wide rear tires, and heavy-duty frames ensure durability and stability while maintaining easy maneuverability for homeowners.
The LGT12 is powered by a 12 hp Kohler single-cylinder gas engine with a 4-speed gear transmission and a 3.5-gallon fuel tank. The LGT14 and LGT17 models deliver additional horsepower for mid-range residential needs, retaining gear drive or optional hydro drive depending on the configuration. The LGT18H represents the high end of the series with an 18 hp twin-cylinder engine, hydrostatic transmission, 4-gallon fuel tank, and a weight of about 958 lbs with a mower deck installed. All models share a wheelbase of approximately 49 inches and utilize standard 16×6.50-8 front and 23×10.50-12 rear turf tires for optimal traction and lawn protection.

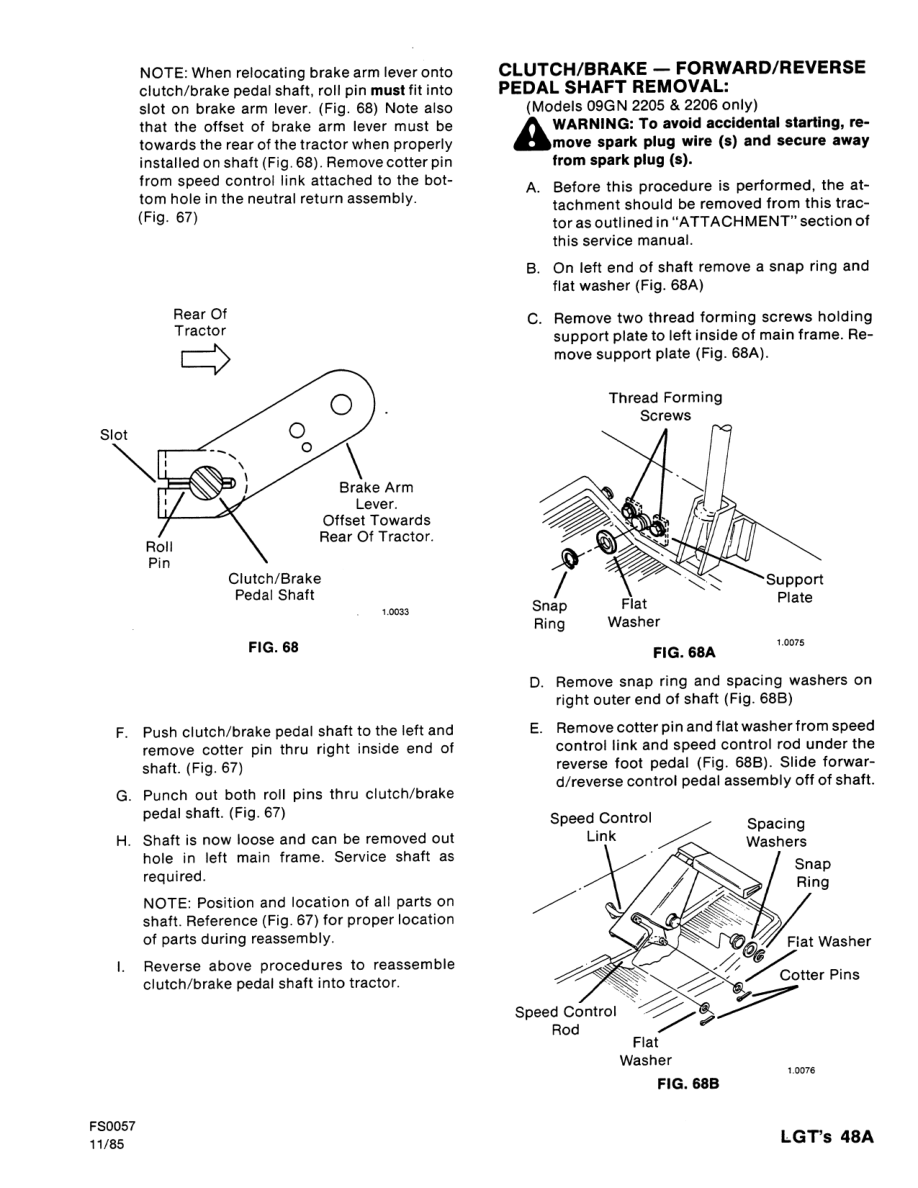

The comprehensive repair manual provides complete coverage of the LGT12, LGT14, LGT17, and LGT18H models. Key sections include maintenance procedures, lubrication charts, bolt torque specifications, servicing and adjustment guides for gear and hydro drive tractors, troubleshooting, and fluid recommendations. It also features Eaton hydrostatic transmission repair information, exploded component views, disassembly/reassembly procedures, and startup guidelines. Wiring diagrams, adjustment charts, and lubrication guides ensure accurate service and maintenance for long-term reliability.
Key Highlights
- LGT12: 12 hp Kohler single-cylinder, 4-speed gear drive, 3.5-gallon tank
- LGT14 / LGT17: mid-range models offering ~14–17 hp, with gear or hydro drive options
- LGT18H: 18 hp Kohler twin-cylinder, hydrostatic transmission, 4-gallon fuel tank, ~958 lbs with deck
- Wheelbase ~49 inches; turf tires 16×6.50-8 (front) and 23×10.50-12 (rear)
- Workshop manual coverage: maintenance, torque specs, lubrication, servicing, gear/hydro drive adjustments, troubleshooting, fluids
- Includes Eaton hydrostatic transmission repair details, exploded views, and component diagrams
- Step-by-step disassembly/reassembly and startup procedures
- Designed for accurate servicing, dependable operation, and long service life
Table of Content
📙 Table of Contents
Table Of Contents
- Table of Contents
Introduction And Safety
- Introduction and Safety
Maintenance
- Maintenance

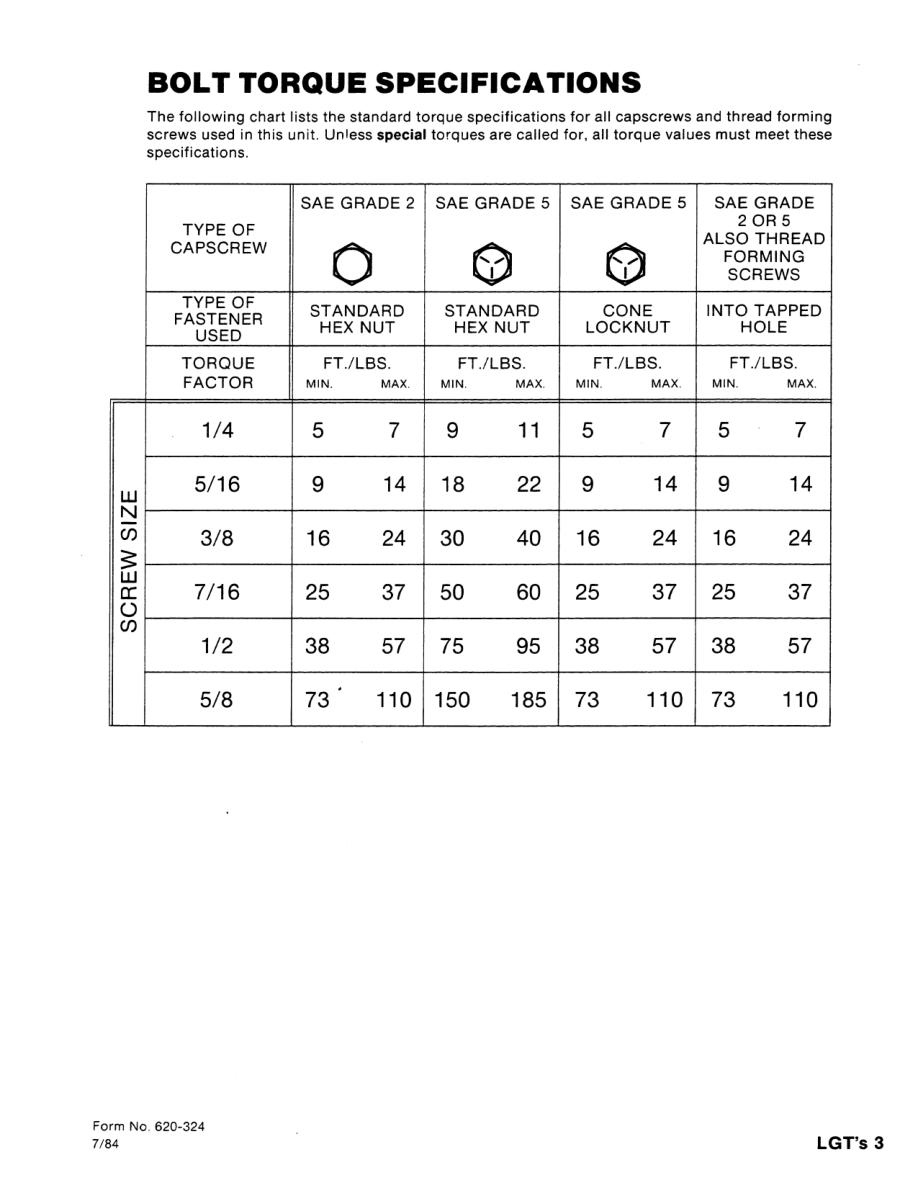

Bolt Torque Specifications
- Bolt Torque Specifications
Lubrication Charts
- Lubrication Charts
Adjusting And Servicing
- Adjusting and Servicing
Adjustments And Servicing For Gear Drive Tractors Only
- Adjustments and Servicing For Gear Drive Tractors Only
Adjustments And Servicing For Hydro Drive Tractors Only
- Adjustments and Servicing For Hydro Drive Tractors Only
Trouble-Shooting
- Trouble-Shooting
No. 7-402 Eaton Hydraulic Division Repair Information – Light Duty Eaton Hydrostatic Transmission – Model 11
- No. 7-402 Eaton Hydraulic Division Repair Information – Light Duty Eaton Hydrostatic Transmission – Model 11
Product Identififcation And Operating Information
- Product Identififcation and Operating information
Exploded View
- Exploded View
Part Description
- Part Description
Disassembly/ Reassembly Procedures
- Disassembly/ Reassembly Procedures
Start/Up Procedures
- Start/up Procedures
Trouble Shooting
- Trouble Shooting
Fluid Recommendations
- Fluid Recommendations
Specification
end{tbody>
| Specification | LGT-12 | LGT-14 / LGT-17 | LGT-18H |
|---|---|---|---|
| Years Produced | 1984-1985 :contentReference[oaicite:0]{index=0} | Mid-1980s (~1985-1987) :contentReference[oaicite:1]{index=1} | 1985-1991 :contentReference[oaicite:2]{index=2} |
| Engine / Displacement | Kohler single-cylinder gas; 476 cc :contentReference[oaicite:3]{index=3} | Likely similar Kohler single-cylinder of slightly larger displacement (exact data varies) :contentReference[oaicite:4]{index=4} | Kohler twin-cylinder gas; 691 cc, 18 hp :contentReference[oaicite:5]{index=5} |
| Gross Horsepower | 12 hp :contentReference[oaicite:6]{index=6} | ~14-17 hp (estimated) :contentReference[oaicite:7]{index=7} | 18 hp :contentReference[oaicite:8]{index=8} |
| Transmission | 4-speed gear drive and options :contentReference[oaicite:9]{index=9} | Gear drive / possible hydrostatic options (varies by H version) :contentReference[oaicite:10]{index=10} | Hydrostatic :contentReference[oaicite:11]{index=11} |
| Fuel Tank Capacity | 3.5 gallons (≈ 13.2 L) :contentReference[oaicite:12]{index=12} | Likely similar (~3.5-4 gal) :contentReference[oaicite:13]{index=13} | 4 gallons (≈ 15.1 L) :contentReference[oaicite:14]{index=14} |
| Wheelbase | Not clearly listed :contentReference[oaicite:15]{index=15} | ≈ 49 in (similar to LGT-18H) :contentReference[oaicite:16]{index=16} | 49 inches (124 cm) :contentReference[oaicite:17]{index=17} |
| Tires (Front / Rear) | Front: 16×6.50-8; Rear: 23×10.50-12 (likely same class) :contentReference[oaicite:18]{index=18} | Same or similar tire sizes in the class; not fully confirmed :contentReference[oaicite:19]{index=19} | 16×6.50-8 front; 23×10.50-12 rear :contentReference[oaicite:20]{index=20} |
| Weight | Not clearly listed :contentReference[oaicite:21]{index=21} | Not clearly listed :contentReference[oaicite:22]{index=22} | 958 lbs (~434 kg) with 48″ deck :contentReference[oaicite:23]{index=23} |
| Dimensions (Length × Width × Height) | Not fully listed :contentReference[oaicite:24]{index=24} | Partially listed in manual; exact varies by deck and attachments :contentReference[oaicite:25]{index=25} | Length ~73.2 in (185 cm); Width ~36.5 in (92 cm); Height ~39.5 in (100 cm) :contentReference[oaicite:26]{index=26} |
