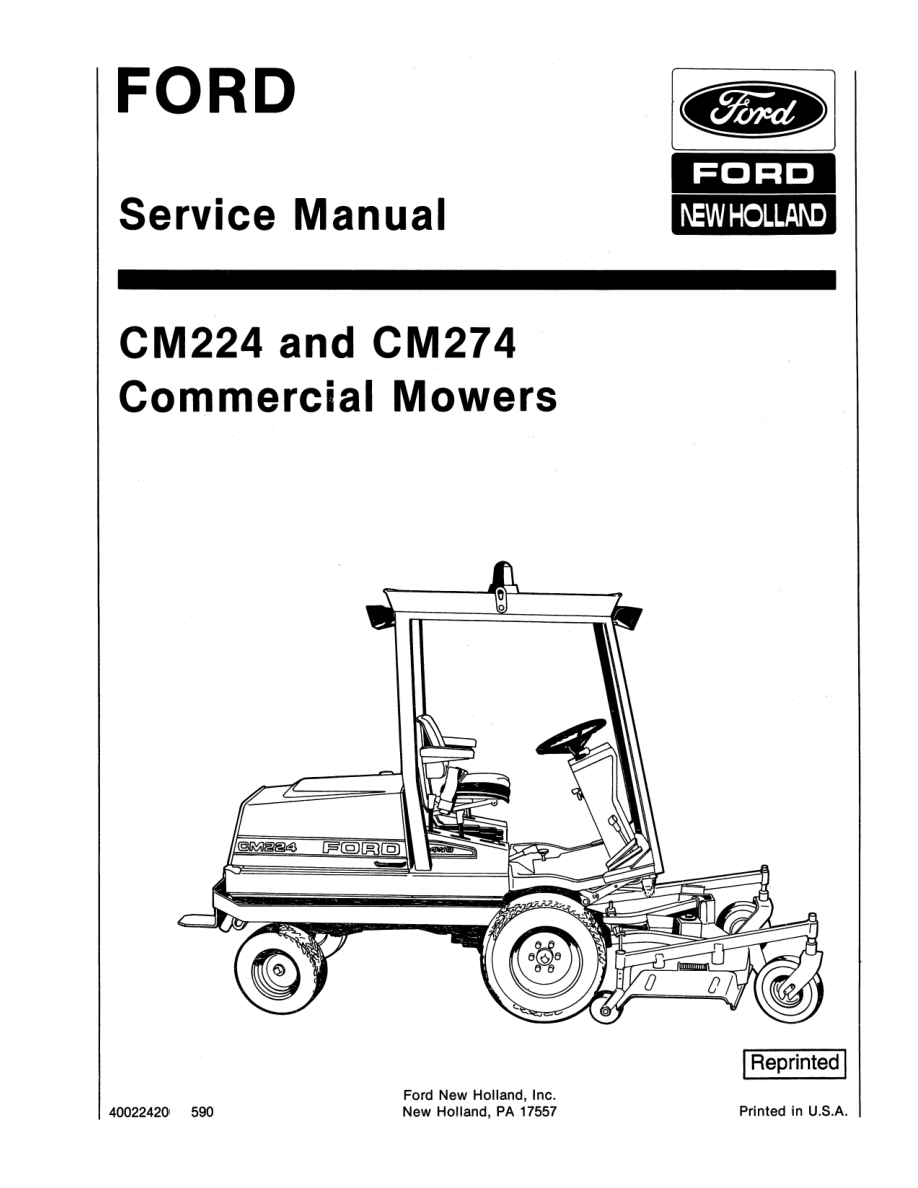

Ford CM224, CM274 Mowers Repair Manual
$26.00
| 🚜 Equipment | |
|---|---|
| Brand | FORD |
| Type | Lawn and Garden Mowers |
| Model | CM224, CM274 |
| 📄 Documents | |
| Type | Repair Manual |
| Publication | 40022420 |
| Language | English |
| Format | |
| No of Pages | 281 |
The Ford CM224 and CM274 Commercial Mowers are powerful, diesel-driven machines designed for municipal, landscaping, and large-scale property maintenance. Built with reliable Shibaura 3-cylinder diesel engines, the CM224 produces 22 hp from a 953 cc engine, while the CM274 offers 27 hp from a larger 1268 cc engine. Both models feature hydrostatic transmissions, 2-wheel drive with differential lock, and power steering, providing smooth maneuverability and dependable performance in varied mowing conditions. With operating weights between 1,558 lbs (CM224) and 1,656 lbs (CM274), these machines combine stability, traction, and cutting efficiency.
The CM224 and CM274 are equipped with a 10.6-gallon fuel tank for extended operation, 49-inch wheelbase for stability, and standard tire sizes (23×10.50-12 front and 18×7.00-8 rear) to handle turf applications effectively. Ground clearance of approximately 5.3 inches ensures reliable operation over uneven terrain. The electrical system includes a 12-volt battery with a 35-amp alternator, supporting dependable starting and auxiliary power. Designed for commercial mowing, these models accept mower decks and implements, offering versatility for year-round grounds maintenance.
The comprehensive repair manual provides detailed service instructions for both models, covering all major systems: engines, fuel system, electrical systems, hydrostatic drive, transaxle and brake, steering and rear axle, implement drive, hydraulic lift, wheels and tires, and mower decks. Step-by-step procedures, wiring diagrams, hydraulic schematics, lubrication charts, and troubleshooting guides ensure professional-grade maintenance and repair. With exploded diagrams and clear adjustment procedures, the manual enables owners and technicians to keep these commercial mowers operating at factory performance levels.
Key Highlights
- CM224: 22 hp, 953 cc Shibaura 3-cylinder diesel engine, 1,558 lbs operating weight
- CM274: 27 hp, 1268 cc Shibaura 3-cylinder diesel engine, 1,656 lbs operating weight
- Hydrostatic drive system with 2WD, differential lock, and power steering
- Fuel capacity: 10.6 gallons, wheelbase: 49.2 inches, ground clearance: 5.3 inches
- Tire sizes: 23×10.50-12 (front), 18×7.00-8 (rear)
- 12-volt electrical system with 35-amp charging
- Workshop manual coverage: engine, fuel, electrical, hydrostatic drive, transaxle, brakes, steering, hydraulics, wheels, tires, mower
- Includes wiring diagrams, hydraulic schematics, lubrication guides, and troubleshooting charts
- Step-by-step instructions with exploded views for accurate servicing
- Ensures reliable performance, long-term durability, and reduced downtime
Table of Content
📙 Table of Contents
Table Of Contents
- Table of Contents
Engines Systems Models Cm224 & Cm274
- Engines Systems Models CM224 & CM274
Fuel System
- Fuel System
Electrical Systems
- Electrical Systems

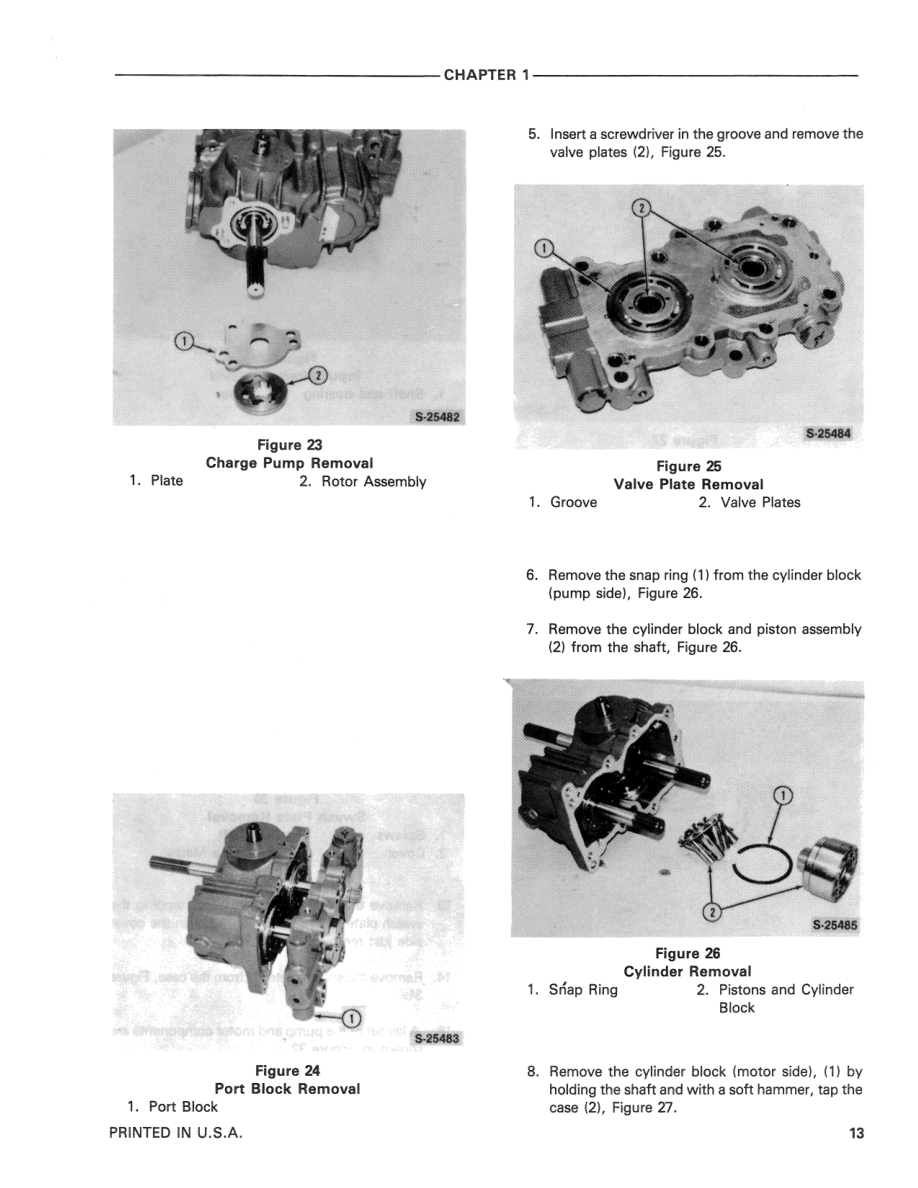

Hydrostatic Drive System
- Hydrostatic Drive System
Transaxle And Brake
- Transaxle and Brake
Steering And Rear Axle
- Steering and Rear Axle
Implement Drive
- Implement Drive

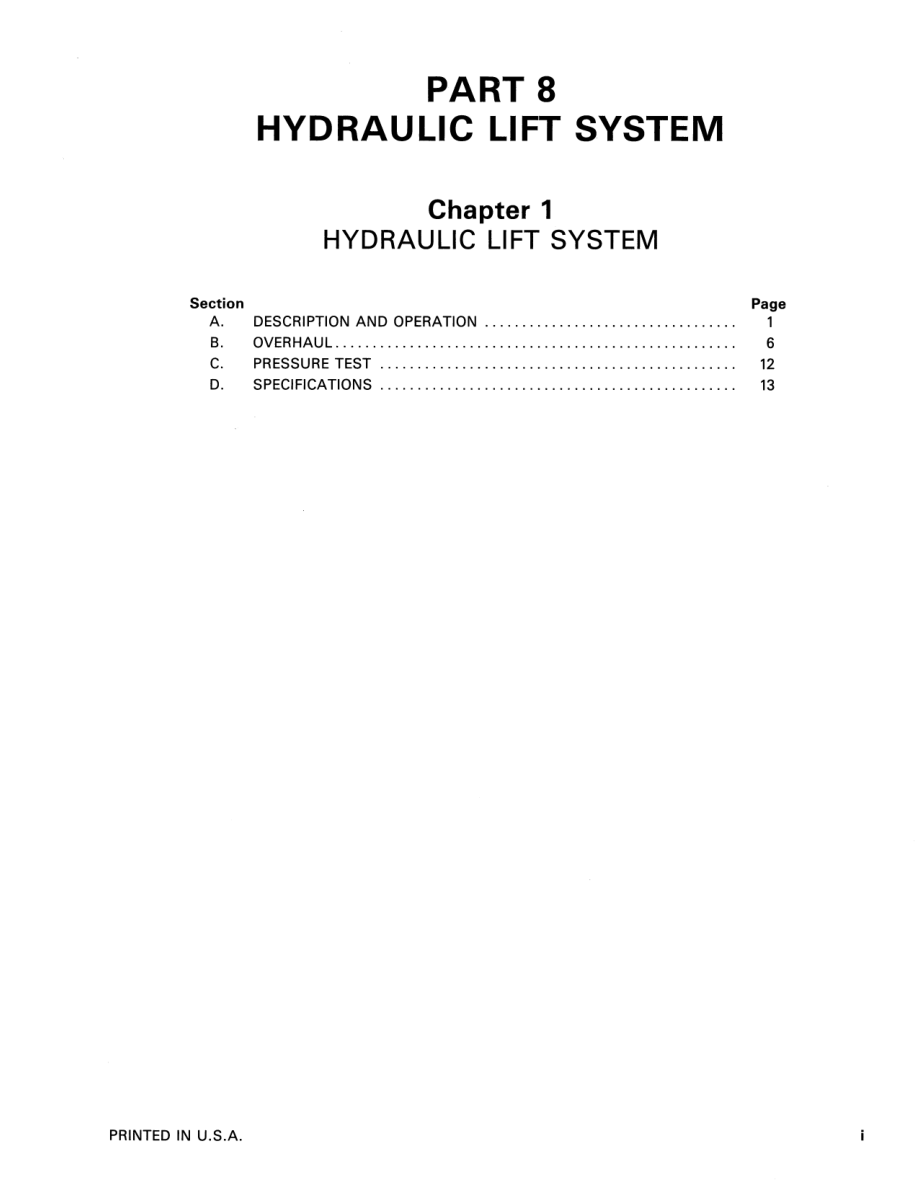

Hydraulic Lift System
- Hydraulic Lift System
Wheels And Tires
- Wheels and Tires
Mower
- Mower
Specification
| Specification | CM224 | CM274 |
|---|---|---|
| Years Produced | 1990 – 2000 | 1990 – 2000 |
| Engine Type / Displacement | Shibaura 3-cylinder diesel, 953 cc | Shibaura 3-cylinder diesel, 1268 cc (77.4 ci) :contentReference[oaicite:0]{index=0} |
| Gross Power | 22 hp :contentReference[oaicite:1]{index=1} | 27 hp :contentReference[oaicite:2]{index=2} |
| Transmission | Hydrostatic drive :contentReference[oaicite:3]{index=3} | Hydrostatic drive :contentReference[oaicite:4]{index=4} |
| Drive / Steering / Brakes | 2-WD; differential lock; power steering; drum brakes; foldable ROPS; optional 4-post ROPS or soft cab :contentReference[oaicite:5]{index=5} | Same, including 2-WD; differential lock; power steering; drum brakes; foldable ROPS etc. :contentReference[oaicite:6]{index=6} |
| Fuel Tank Capacity | 10.6 gal (≈ 40.1 L) :contentReference[oaicite:7]{index=7} | 10.6 gal (≈ 40.1 L) :contentReference[oaicite:8]{index=8} |
| Weight | 1558 lbs (706 kg) :contentReference[oaicite:9]{index=9} | 1656 lbs (751 kg) :contentReference[oaicite:10]{index=10} |
| Wheelbase | 49.2 in (124 cm) :contentReference[oaicite:11]{index=11} | 49.2 in (124 cm) :contentReference[oaicite:12]{index=12} |
| Tire Sizes (Front / Rear) | Front: 23×10.50-12 / Rear: 18×7.00-8 :contentReference[oaicite:13]{index=13} | Front: 23×10.50-12 / Rear: 18×7.00-8 :contentReference[oaicite:14]{index=14} |
| Dimensions (Length × Width × Height) | Length: ~93.7 in (237 cm); Width: ~46.1 in (117 cm); Height: ~79.9 in (202 cm) :contentReference[oaicite:15]{index=15} | Similar dimensions; same wheelbase and tire sizes, slight weight difference; dimension-specific data mostly matches CM224 :contentReference[oaicite:16]{index=16} |
| Ground Clearance | ≈ 5.3 in (13 cm) :contentReference[oaicite:17]{index=17} | ≈ 5.3 in (13 cm) (likely same as CM224) :contentReference[oaicite:18]{index=18} |
| Electrical System | 12-V battery; charging ~35 A; negative ground :contentReference[oaicite:19]{index=19} | 12-V battery; similar charging amps (~35 A) :contentReference[oaicite:20]{index=20} |
