Ford CL-25 Compact Loader Repair Manual
$30.00
| 🚜 Equipment | ||
|---|---|---|
| Brand | FORD | |
| Type | Skid-Steer Compact Loader | |
| Model | CL-25 | |
| 📄 Documents | ||
| Language | English | |
| Format | ||
| Title | Publication No. | Pages |

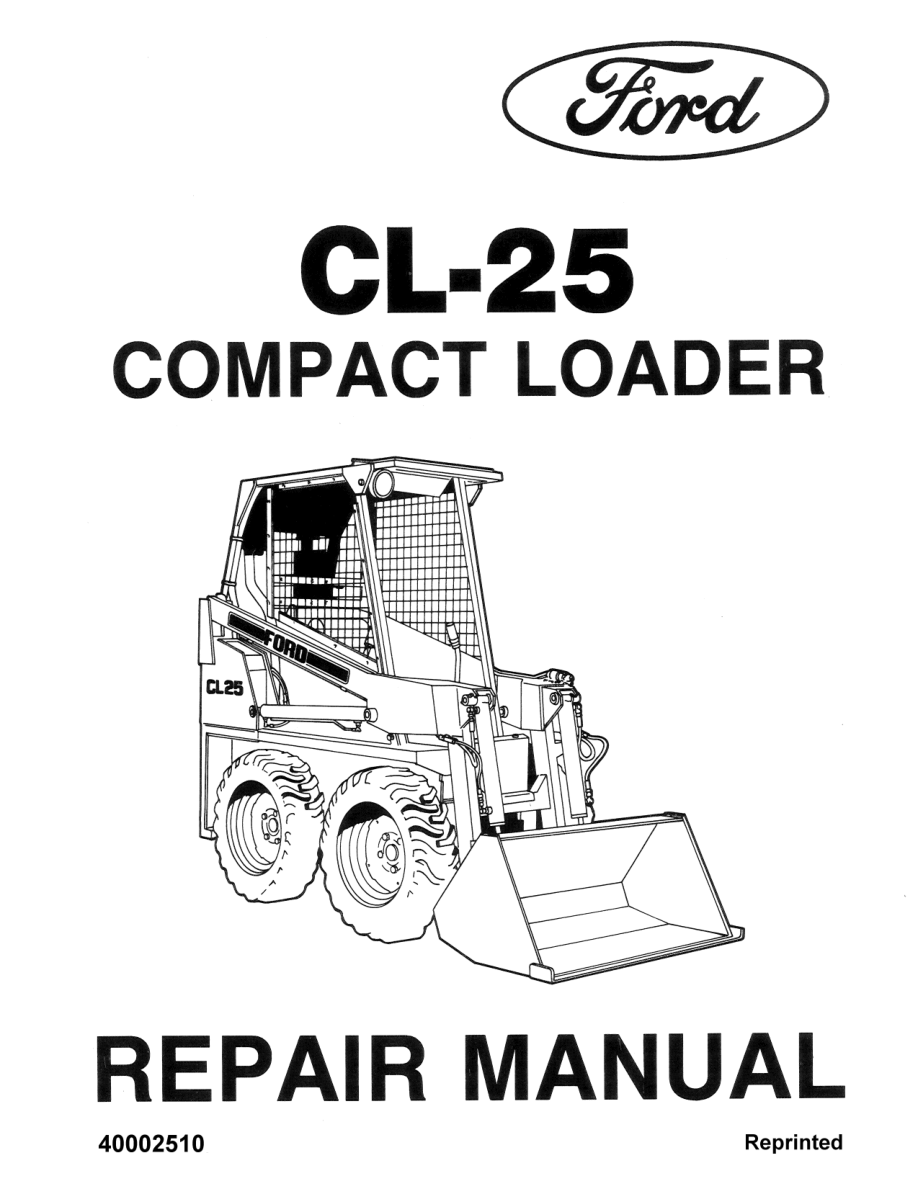

| Repair Manual | 40002510 | 228 |

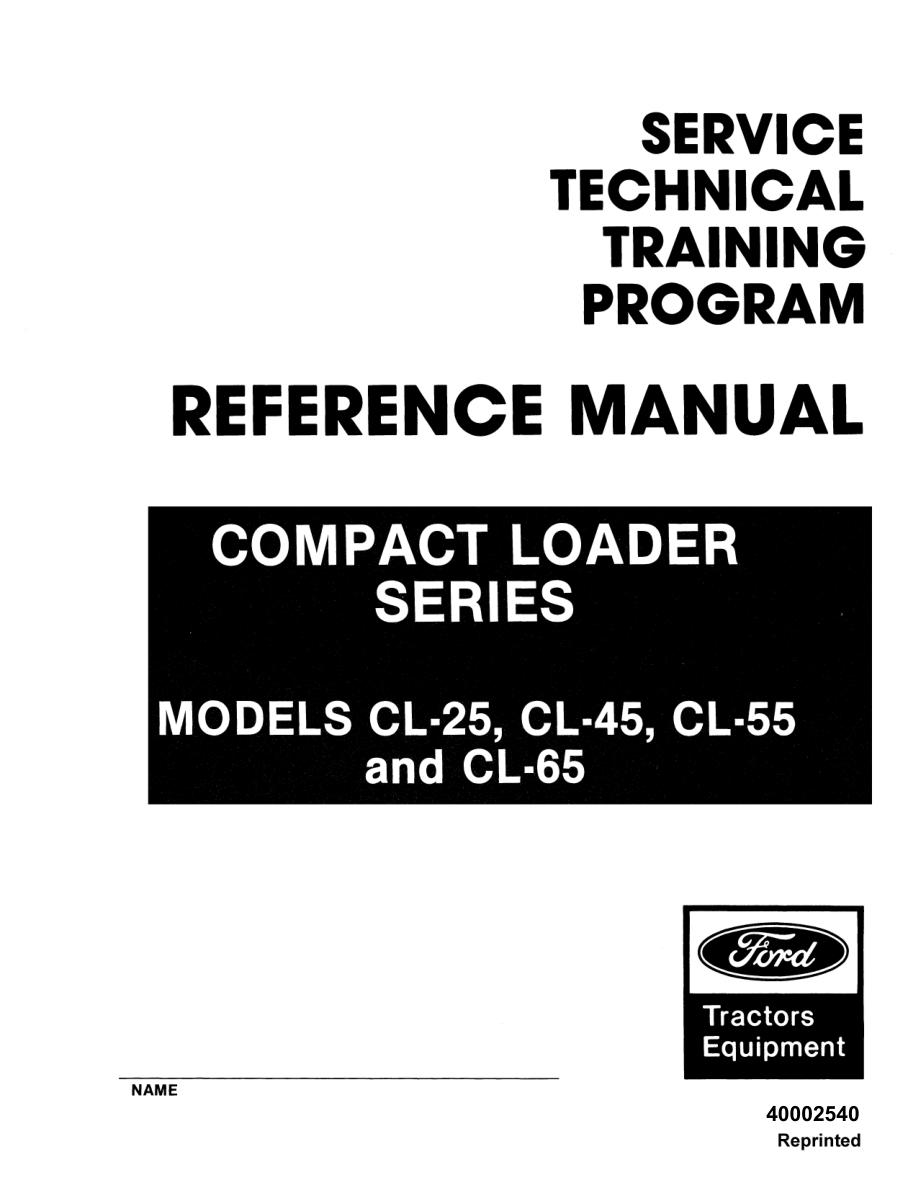

| Reference Manual | 40002540 | 44 |
- Description
- Additional information
- Table of Content
- Specification
- Buyer Questions & Answers
- Reviews (0)
The Ford CL-25 Compact Loader is a versatile skid-steer loader designed for construction, landscaping, and agricultural applications. Built in the early 1980s, the CL-25 features a reliable Shibaura engine delivering around 20 horsepower, available in gasoline and diesel versions. Compact yet durable, the CL-25 provides stability and maneuverability for material handling, grading, and light earthmoving tasks. With hydraulic and hydrostatic systems powering the loader arms and drive functions, it is engineered for efficiency in tight operating environments.
The CL-25 incorporates a hydrostatic drive for smooth variable-speed operation, a rugged main frame, and a fully integrated hydraulic system with gear pumps, control valves, and cylinders for efficient loader control. Standard 12-volt electrical systems ensure dependable starts, while its compact wheelbase and balanced operating weight provide stability and traction. Designed for performance in demanding conditions, the CL-25 is an excellent choice for operators needing compact power with industrial reliability.
The comprehensive repair manual covers all major systems of the Ford CL-25 Compact Loader. Key sections include the hydraulic system, hydrostatic drive, final drive, controls, electrical system, main frame, engine servicing, and maintenance specifications. Detailed troubleshooting procedures, lubrication charts, wiring diagrams, exploded component views, and service adjustments ensure technicians and owners can maintain the loader to factory standards. Step-by-step disassembly and reassembly procedures help extend service life and minimize downtime.
Key Highlights
- Powered by a ~20 hp Shibaura gasoline/diesel engine
- Hydrostatic drive system for smooth variable-speed operation
- Open-center hydraulic system with pumps, valves, and cylinders
- 12-volt electrical system for reliable starts and accessory support
- Compact frame with balanced operating weight for stability and maneuverability
- Workshop manual sections: hydraulic, hydrostatic drive, final drive, controls, electrical, main frame, engine, and maintenance
- Includes troubleshooting charts, wiring diagrams, lubrication data, and torque specifications
- Step-by-step servicing with exploded diagrams for accurate repair
- Essential for ensuring reliable performance, reduced downtime, and long service life
| Publication | 40002510, 40002540 |
|---|
Table of Content
📙 Table of Contents – Publication Number 40002510
Section 1 – Hydraulic System
- Section 1 – Hydraulic System
Section 2 – Hydrostatic Drive System
- Section 2 – Hydrostatic Drive System
Section 3 – Final Drive
- Section 3 – Final Drive

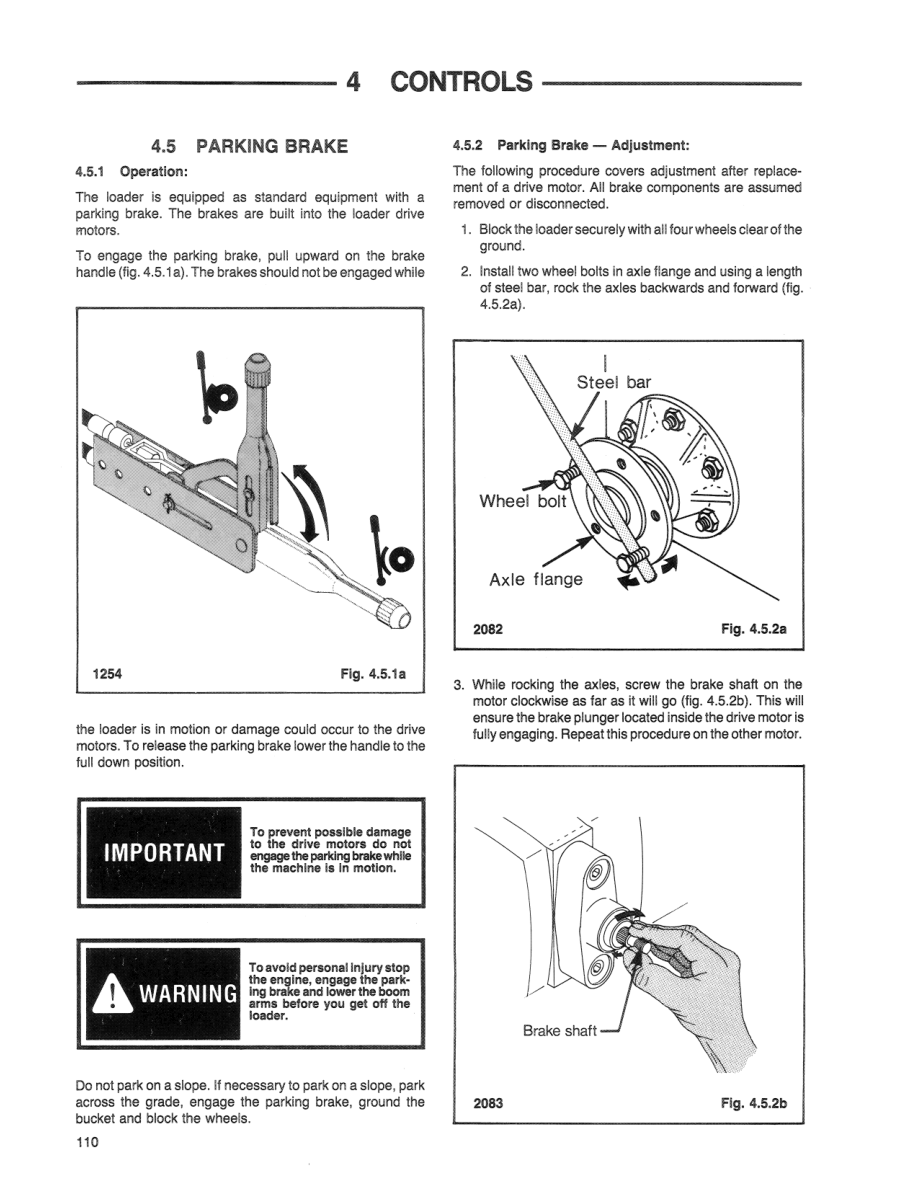

Section 4 – Controls
- Section 4 – Controls
Section 5 – Electrical
- Section 5 – Electrical
Section 6 – Main Frame
- Section 6 – Main Frame
Section 7 – Engine
- Section 7 – Engine
Section 8 – Maintenance/ Specifications
- Section 8 – Maintenance/ Specifications
Specification
| Specification | Ford CL-25 Compact Loader |
|---|---|
| Model Type | Skid-steer / Compact Loader |
| Years Produced / Serial Dates | Units produced from November 1982 onward (serial 11/82 and later) :contentReference[oaicite:0]{index=0} |
| Engine & Power | ~20 hp Shibaura engine (gas) :contentReference[oaicite:1]{index=1} |
| Fuel Type | Diesel (in many units) :contentReference[oaicite:2]{index=2} |
| Operating Weight | ≈ 19,800 lb / 8,970 kg ??? (No reliable source found) — **Data not found** |
| Hydraulic / Hydraulic System Info | Full hydraulic & hydrostatic systems covered. Manual includes hydraulic, final drive, engine, electrical, controls, maintenance. :contentReference[oaicite:3]{index=3} |
| Main Dimensions – Height to hinge pin & raised height | **Not found** in sources found so far; likely similar to CL-20 specs but difference not confirmed |
| Electrical System | Standard 12-volt electrical system; includes full electrical & wiring sections in service manual :contentReference[oaicite:4]{index=4} |
| Sections in Service Manual / Coverage |
:contentReference[oaicite:5]{index=5} |
