Ford CL-20 Compact Loader Repair Manual
$19.00
| 🚜 Equipment | |
|---|---|
| Brand | FORD |
| Type | Compact Loader |
| Model | CL-20 |
| 📄 Documents | |
| Type | Repair Manual |
| Publication | 40002010 |
| Language | English |
| Format | |
| No of Pages | 48 |
The Ford CL-20 Compact Loader is a durable skid-steer style machine built for light construction, landscaping, and agricultural applications. Powered by a reliable 25 hp Onan gasoline engine, the CL-20 delivers dependable performance for loading, grading, and material handling. With an operating weight of approximately 2,900 lbs and a compact frame, it offers stability and maneuverability in tight jobsite conditions. The loader arms reach a hinge pin height of about 95¾ inches, with a dump angle of 46° and a reach of 20 inches at maximum height, ensuring efficient material placement. Standard dimensions include an overall length of about 98 inches and an overall raised height of 124 inches, making it compact yet capable for demanding tasks.
The Ford CL-20 is equipped with hydraulic pumps, control valves, and cylinders engineered for smooth loader operation. Its open-center hydraulic system supports reliable lifting and bucket control, while the 12-volt electrical system provides consistent starting and power for machine functions. The rugged design, combined with a simple operator station and easy maintenance access, makes the CL-20 a practical machine for owners needing a balance of power and compact versatility.
The comprehensive repair manual provides full service coverage for the Ford CL-20 Compact Loader. Key sections include 50-hour inspection, safety precautions, description and operation, troubleshooting, hydraulic system, control valves, cylinders, power train, gear and piston pumps, lubrication and maintenance, electrical system, and complete specifications. Step-by-step service instructions, detailed troubleshooting guides, exploded component diagrams, and lubrication charts ensure accurate servicing and long-term reliability. This manual equips technicians and owners with the tools to maintain factory performance and extend the service life of the CL-20.
Key Highlights
- Powered by a ~25 hp Onan gasoline engine
- Operating weight: ~2,900 lbs; compact overall length ~98 inches
- Loader hinge pin height: ~95¾ in; dump angle: 46°; reach: ~20 in at full height
- Overall raised height with arms: ~124 in
- Hydraulic system with gear and piston pumps, valves, and cylinders
- 12-volt electrical system with reliable starting
- Workshop manual sections: inspections, safety, operation, hydraulics, power train, lubrication, electrical, specifications
- Includes troubleshooting charts, exploded diagrams, and service procedures
- Essential for maintaining factory-level performance and reducing downtime
Table of Content
📙 Table of Contents
50 – Hour Inspection
- 50 – Hour Inspection
Safety Precautions
- Safety Precautions
Description And Operation
- Description and Operation
Trouble Shooting
- Trouble Shooting
Hydraulic System
- Hydraulic System
Control Valves
- Control Valves

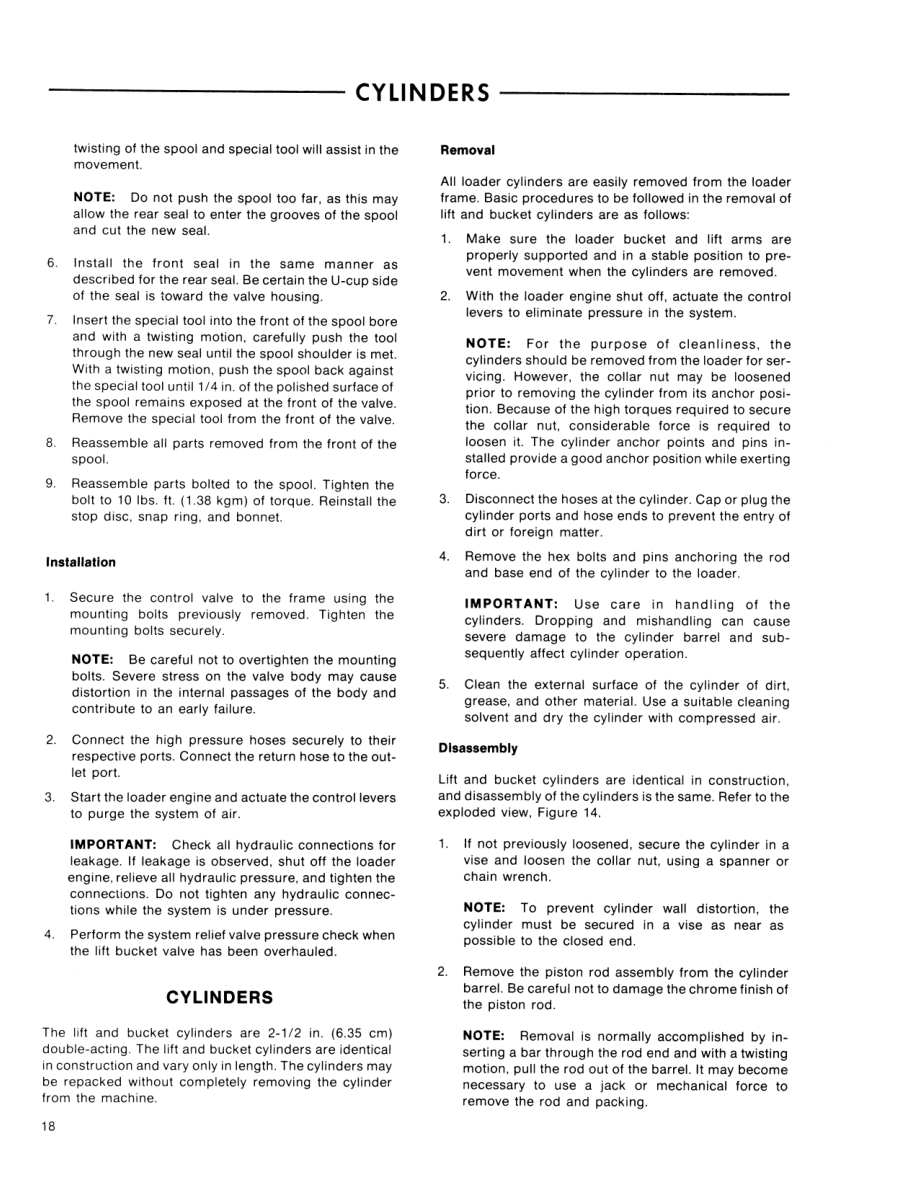

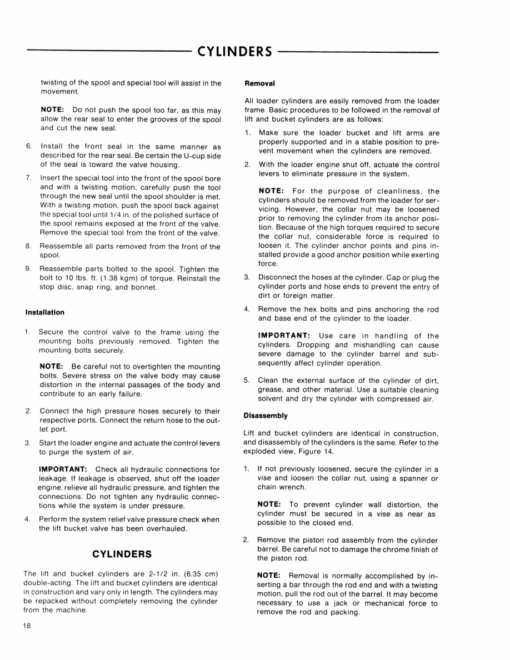

Cylinders
- Cylinders
Power Train
- Power Train
Gear Pump
- Gear Pump
Piston Pump
- Piston Pump
Lubrication And Maintenance
- Lubrication and Maintenance
Electrical System
- Electrical System
Specifications
- Specifications
Specification
| Specification | Ford CL-20 Compact Loader |
|---|---|
| Model Type | Skid-Steer / Compact Loader |
| Years Produced | ≈ 1974 – 1983 :contentReference[oaicite:0]{index=0} |
| Engine / Fuel Type | ≈ 25 hp gasoline (Onan) :contentReference[oaicite:1]{index=1} |
| Operating Weight | ≈ 2,900 lbs (≈ 1,315 kg) :contentReference[oaicite:2]{index=2} |
| Hydraulic System / Specs | Pump, control valves, and cylinders for skid-steer operation; hydraulic service manual includes pressure tests and control valve info :contentReference[oaicite:3]{index=3} |
| Lifting / Dump Height | Height to hinge pin raised ≈ 95-3/4 in; overall height with lift arms raised ≈ 124 in :contentReference[oaicite:4]{index=4} |
| Bucket Dump / Reach Angles | Dump angle ≈ 46°; reach at maximum height & 45° dump ≈ 20 in :contentReference[oaicite:5]{index=5} |
| Dimensions (Length / Width / Height) | Overall length with bucket ≈ 98 in; width and height vary with attachments; height to hinge pin: ≈ 95-3/4 in; overall height with arms raised ≈ 124 in :contentReference[oaicite:6]{index=6} |
| Electrical System | Standard 12-volt system; battery start; includes electrical system details in service manual :contentReference[oaicite:7]{index=7} |
