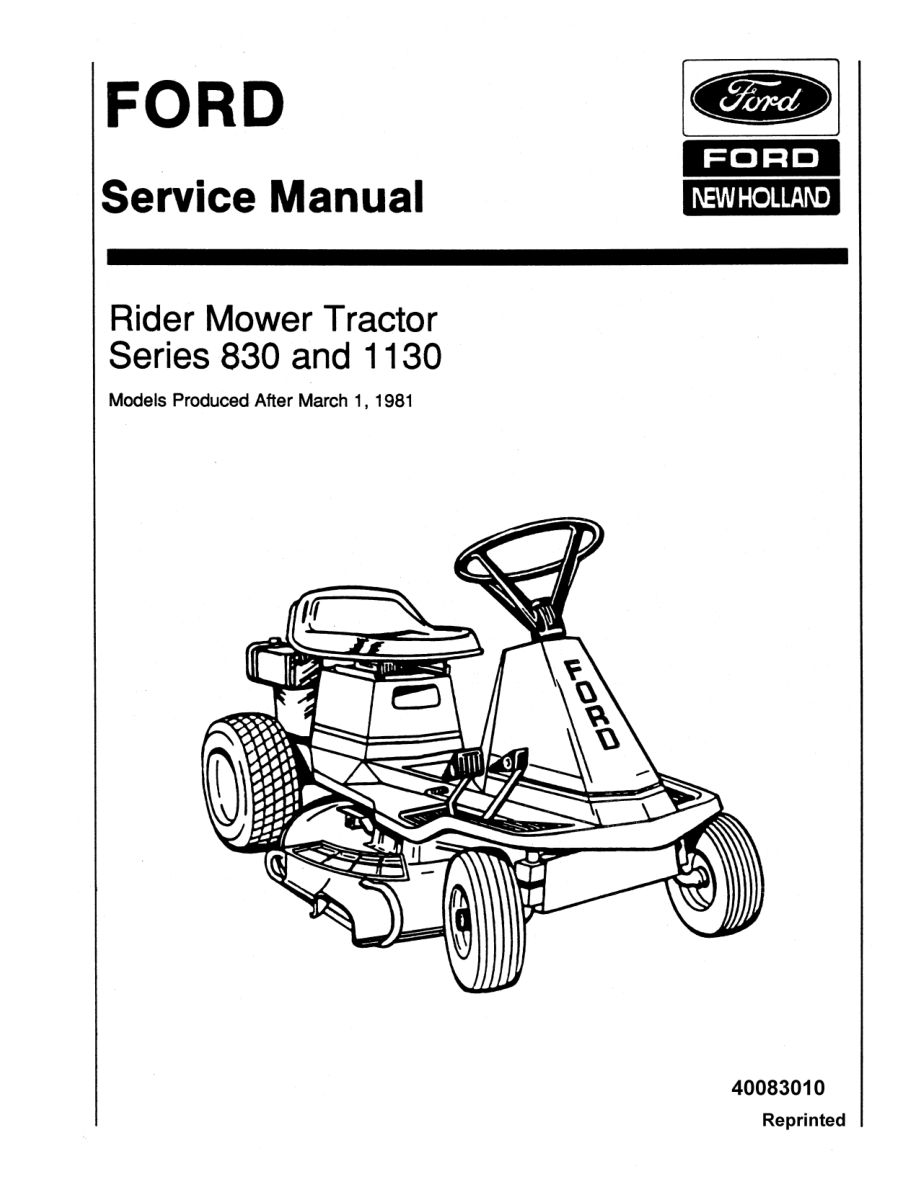

Ford 830, 1130 Rider Mower Tractor Repair Manual
$19.00
| 🚜 Equipment | |
|---|---|
| Brand | FORD |
| Type | Lawn and Garden Tractor |
| Model | 830, 1130 |
| 📄 Documents | |
| Type | Repair Manual |
| Publication | 40083010 |
| Language | English |
| Format | |
| No of Pages | 28 |
The Ford 830 and 1130 Rider Mower Tractors are compact riding mowers designed for reliable residential lawn care. Built with durable Briggs & Stratton gasoline engines, these models deliver 8 hp (Ford 830) and 11 hp (Ford 1130), offering the right balance of power and efficiency for small to medium-sized yards. Both tractors feature a 3-speed gear drive transmission, 2-wheel drive, and manual steering, ensuring simple operation and ease of maintenance. With compact wheelbases of 44 inches and weights ranging from 369 lbs (830) to 418 lbs (1130), they are lightweight yet sturdy machines tailored for maneuverability and stability during mowing.
The Ford 830 is equipped with a 0.75-gallon fuel tank and tire sizes of 4.10×3.50-4 (front) and 16×6.50-8 (rear), making it ideal for efficient lawn trimming in residential areas. The larger Ford 1130 shares the same dimensions but offers a higher 11 hp rating, giving it greater performance for tougher grass conditions or slightly larger properties. Both tractors feature a 12-volt electrical system with battery start, making them easy to operate and dependable over long service lives. Attachments like mower decks and related accessories further enhance their versatility for seasonal use.
The comprehensive repair manual covers all major systems of the Ford 830 and 1130 Rider Mower Tractors. Key sections include specifications and torque values, maintenance and lubrication charts, wiring diagrams, and detailed troubleshooting of the battery charging, cranking, and interlock systems. It also covers cutter belt and deck servicing, frame and steering repairs, front axle removal, and drivetrain components such as gear reducers, differentials, sprockets, chains, and drive discs. Step-by-step removal, inspection, replacement, and adjustment procedures ensure these tractors can be maintained at factory performance standards.
Key Highlights
- Ford 830: 8 hp Briggs & Stratton engine, ~369–403 lbs weight, 44-inch wheelbase
- Ford 1130: 11 hp Briggs & Stratton engine, 418 lbs weight, 44-inch wheelbase
- 3-speed gear transmission, 2-wheel drive, manual steering
- Fuel capacity: 0.75 gallons, 12-volt electrical system with battery start
- Tire sizes: 4.10×3.50-4 (front), 16×6.50-8 (rear)
- Workshop manual coverage: engine, electrical, transmission, steering, cutter deck, drivetrain, and hydraulic adjustments
- Includes wiring diagrams, lubrication and maintenance charts, torque specifications
- Troubleshooting procedures for charging, cranking, and interlock systems
- Step-by-step instructions with exploded diagrams for inspection and repair
- Designed to extend service life, ensure reliable operation, and maintain factory performance
Table of Content
📙 Table of Contents
Table Of Contents
- Table of Contents
Specifications/ Torque Values
- Specifications/ Torque Values
Maintenance Chart/ Lubrication Chart
- Maintenance Chart/ Lubrication Chart
Wiring Diagram
- Wiring Diagram

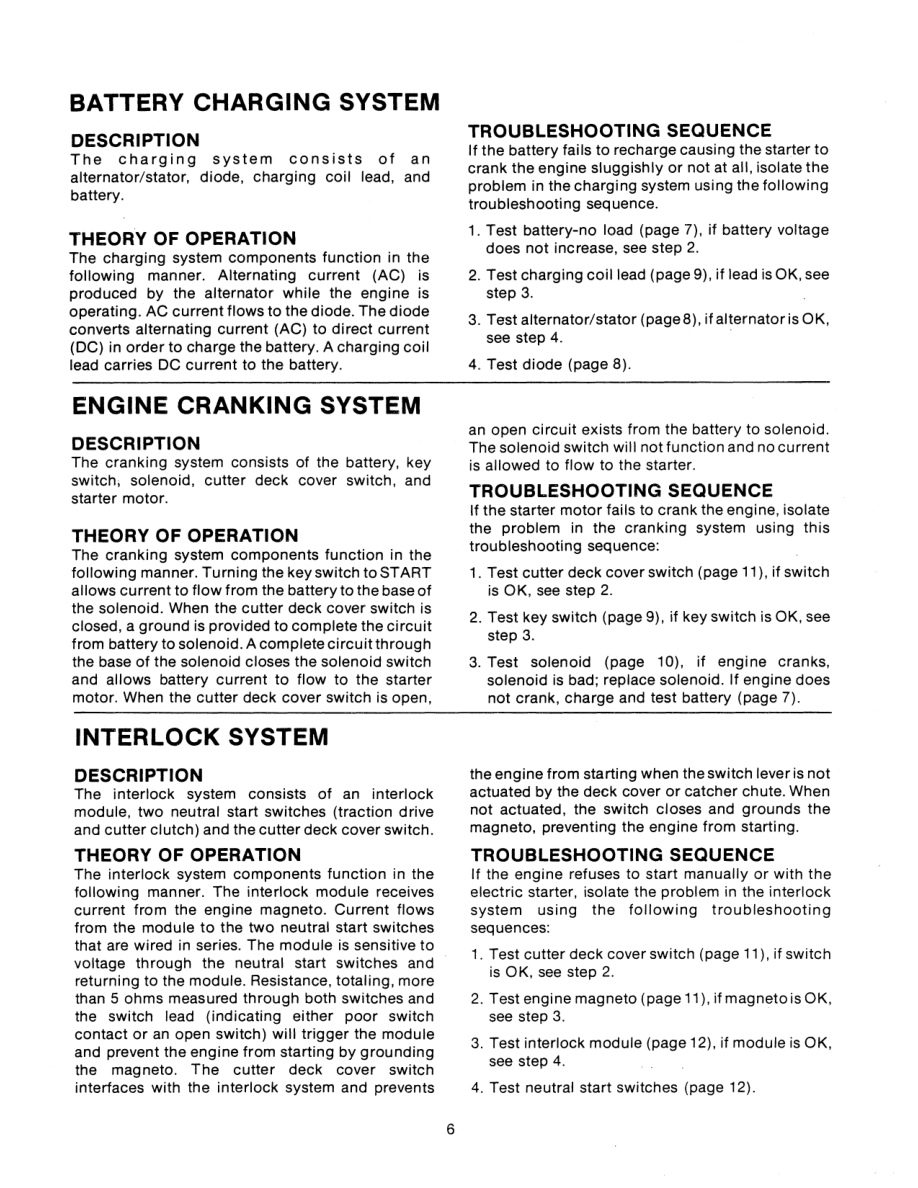

Troubleshooting Battery Charging System/ Troubleshooting Engine Cranking System/ Troubleshooting Interlock System
- Troubleshooting Battery Charging System/ Troubleshooting Engine Cranking System/ Troubleshooting Interlock System
Battery Test
- Battery Test
Alternator/ Diode Test
- Alternator/ Diode Test
Charging Coil Lead Test/ Key Switch Test
- Charging Coil Lead Test/ Key Switch Test
Solenoid Test/ Interlock System
- Solenoid Test/ Interlock System
Cutter Deck Cover Switch Test/ Engine Magneto Test
- Cutter Deck Cover Switch Test/ Engine Magneto Test
Interlock Module Test/ Neutral Start Switch Test
- Interlock Module Test/ Neutral Start Switch Test
Cutter Belt Removal/ Replacement
- Cutter Belt Removal/ Replacement
Cutter Deck Removal/ Replacement
- Cutter Deck Removal/ Replacement
Cutter Deck Assembly Inspection/ Repair
- Cutter Deck Assembly Inspection/ Repair
Frame, Steering, And Treadle Assembly Inspection/Repair Wheel/ Spindle Removal/ Replacement
- Frame, Steering, and Treadle Assembly Inspection/Repair Wheel/ Spindle Removal/ Replacement
Front Axle Removal/ Replacement
- Front Axle Removal/ Replacement
Steering Shaft, Lift Handle Assembly Removal/ Replacement/ Steering Sector/ Ball Bushing Removal/ Replacement
- Steering Shaft, Lift Handle Assembly Removal/ Replacement/ Steering Sector/ Ball Bushing Removal/ Replacement
Hex Shaft And Drive Wheel Removal, Replacement/ Hex Shaft And Drive Wheel Inspection, Repair
- Hex Shaft and Drive Wheel Removal, Replacement/ Hex Shaft and Drive Wheel Inspection, Repair
Gear Reducer R Removal, Replacement/ Gear Reducer Inspection, Repair
- Gear Reducer R Removal, Replacement/ Gear Reducer Inspection, Repair
Differential And Tube Assembly Removal/ Replacement
- Differential and Tube Assembly Removal/ Replacement

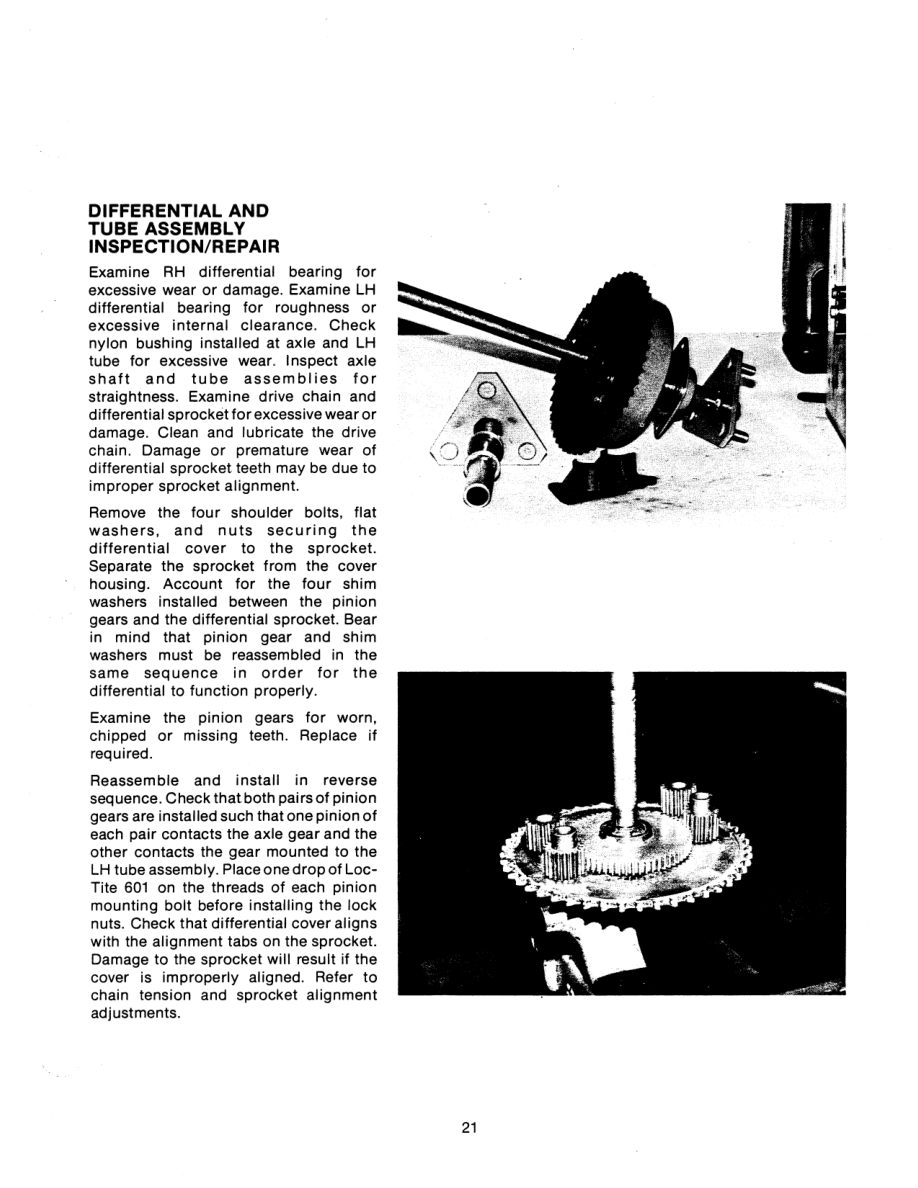

Differential And Tube Assembly Inspection/ Repair
- Differential and Tube Assembly Inspection/ Repair
Drive Disc And Pulley Removal, Replacement/ Drive Disc And Pulley Inspection, Repair
- Drive Disc and Pulley Removal, Replacement/ Drive Disc and Pulley Inspection, Repair
Differential Sprocket Alignment/ Drive Chain Tension Adjustment
- Differential Sprocket Alignment/ Drive Chain Tension Adjustment
Drive Wheel Clearance Adjustment
- Drive Wheel Clearance Adjustment
Specification
| Specification | Ford 830 | Ford 1130 |
|---|---|---|
| Years Produced | 1977 – 1983 | 1980 – 1983 |
| Engine Manufacturer / Type | Briggs & Stratton, 1-cylinder, gasoline | Briggs & Stratton, 1-cylinder, gasoline |
| Horsepower | 8 hp (≈ 318 cc) :contentReference[oaicite:0]{index=0} | 11 hp :contentReference[oaicite:1]{index=1} |
| Fuel Tank Capacity | 0.75 gal (≈ 2.8 L) :contentReference[oaicite:2]{index=2} | 0.75 gal (≈ 2.8 L) :contentReference[oaicite:3]{index=3} |
| Transmission | 3-speed gear drive :contentReference[oaicite:4]{index=4} | 3-speed gear drive :contentReference[oaicite:5]{index=5} |
| Drive / Steering | 2-wheel drive; manual steering :contentReference[oaicite:6]{index=6} | 2-wheel drive; manual steering :contentReference[oaicite:7]{index=7} |
| Wheelbase | 44 in (≈ 111 cm) :contentReference[oaicite:8]{index=8} | 44 in (≈ 111 cm) :contentReference[oaicite:9]{index=9} |
| Weight | 369-403 lbs (≈ 167-183 kg) :contentReference[oaicite:10]{index=10} | 418 lbs (≈ 189 kg) :contentReference[oaicite:11]{index=11} |
| Tire Sizes (Front / Rear) | 4.10×3.50-4 front; 16×6.50-8 rear :contentReference[oaicite:12]{index=12} | 4.10×3.50-4 front; 16×6.50-8 rear :contentReference[oaicite:13]{index=13} |
| Electrical System | 12-volt; ground negative; battery-electric start or recoil start depending on variant :contentReference[oaicite:14]{index=14} | 12-volt; battery start; same basic setup as 830 series :contentReference[oaicite:15]{index=15} |
