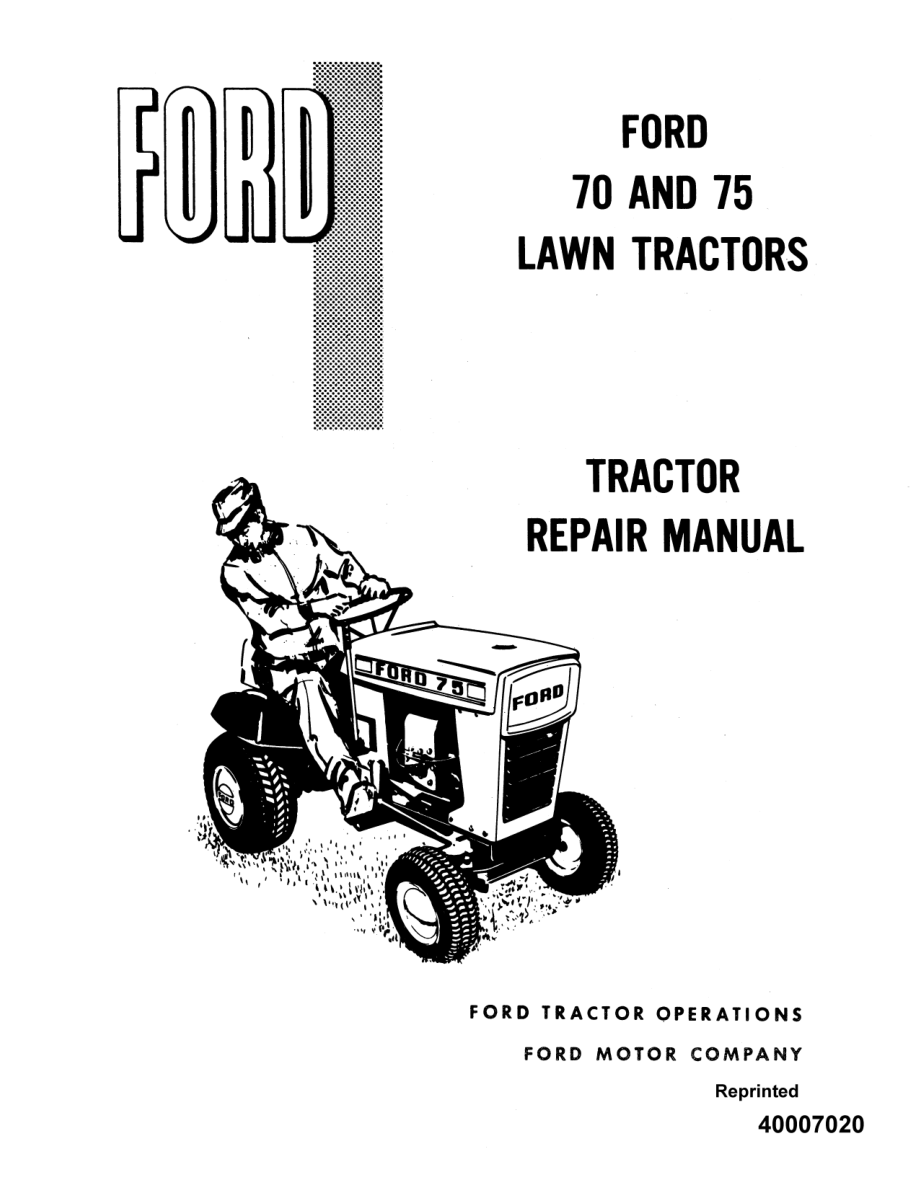

Ford 70, 75 Lawn Tractor Repair Manual
$19.00
| 🚜 Equipment | |
|---|---|
| Brand | FORD |
| Type | Lawn and Garden Tractor |
| Model | 70, 75 |
| 📄 Documents | |
| Type | Repair Manual |
| Publication | 40007020 |
| Language | English |
| Format | |
| No of Pages | 36 |
The Ford 70 and 75 Lawn Tractors are compact, reliable machines designed for residential mowing and light-duty yard work. Built between 1968 and 1973, these models feature Briggs & Stratton 7 hp single-cylinder, 4-cycle gasoline engines, making them durable and efficient for routine lawn care. The Ford 70 comes with a recoil pull-start system, while the Ford 75 is equipped with a 12-volt electric starter, giving operators a choice between simple manual starting or the convenience of electric ignition. Both tractors are lightweight yet sturdy, with manual steering and dependable 3-speed gear transmissions offering smooth operation for everyday use.
The tractors are designed with a 42-inch wheelbase and an average weight of around 427 lbs, ensuring stability while maintaining maneuverability in small yards. Fuel is supplied through a 1-gallon tank, sufficient for typical residential mowing tasks. Standard tire sizes (13×5.00-6 front and 18×8.50-8 rear) provide traction and durability on grass surfaces. Available attachments include a 34-inch mid-mount mower deck, snow blade, and snowblower, making these tractors versatile year-round machines for homeowners. Their compact design and simple layout also make them easy to maintain and repair.

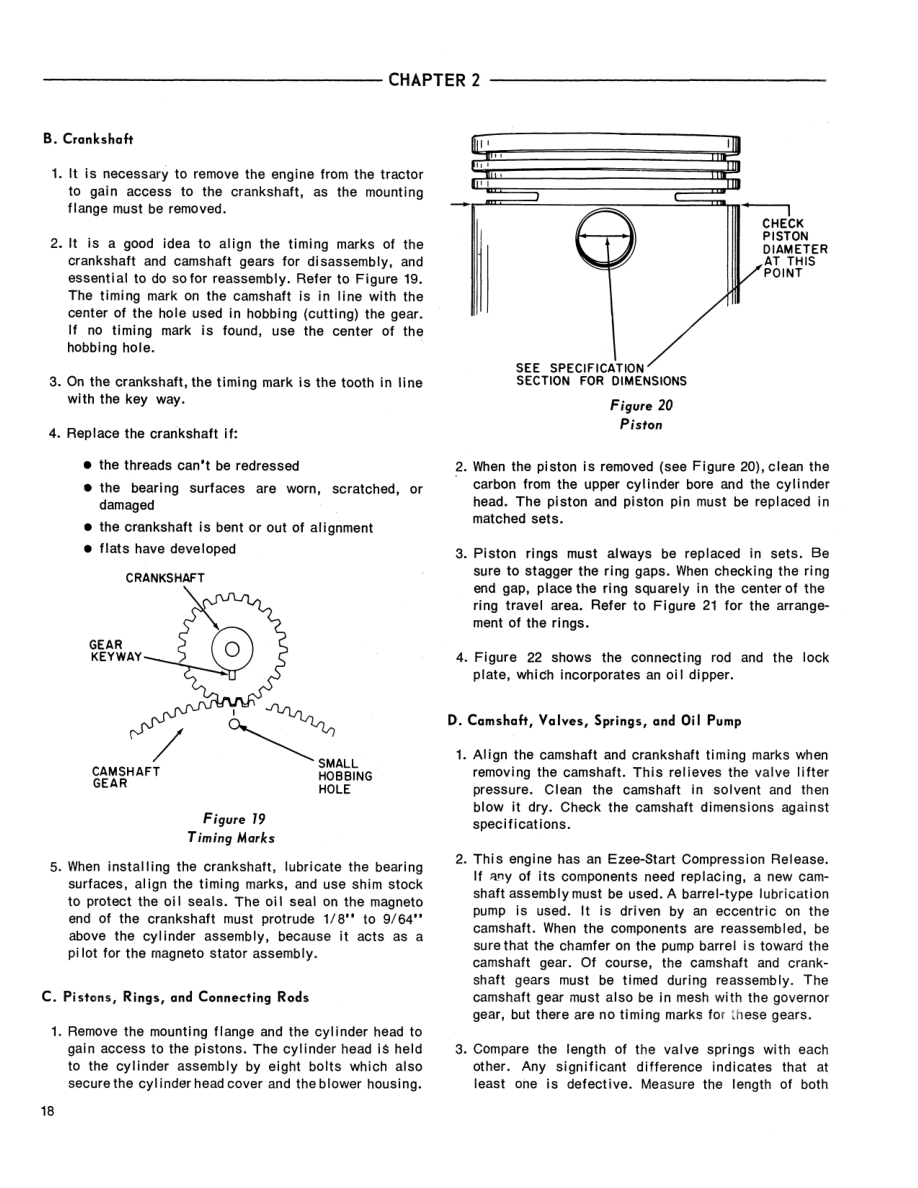

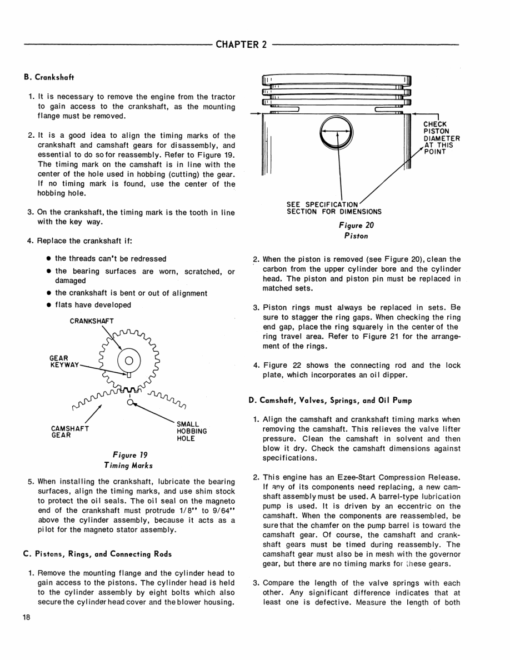

The comprehensive repair manual offers detailed service procedures for the Ford 70 and 75 models. Coverage includes general description, engine and electrical system servicing, transaxle maintenance, and complete separation of the tractor for major repairs. The manual provides step-by-step instructions, exploded diagrams, wiring details, and specifications, enabling technicians and owners to keep these tractors running at peak performance. Whether for routine maintenance or in-depth mechanical work, this manual ensures factory-level servicing guidance.
Key Highlights
- Ford 70: 7 hp Briggs & Stratton engine with recoil start
- Ford 75: 7 hp Briggs & Stratton engine with 12-volt electric start
- 3-speed gear transmission with 3 forward and 1 reverse gear
- Compact 42-inch wheelbase and ~427 lbs operating weight
- Fuel capacity: 1 gallon tank for residential mowing tasks
- Tire sizes: 13×5.00-6 (front), 18×8.50-8 (rear)
- Attachments: 34-inch mower deck, snow blade, snowblower, and more
- Workshop manual coverage: engine, electrical, transaxle, and tractor separation
- Includes wiring diagrams, specifications, and exploded component views
- Designed to ensure long-term reliability, ease of service, and efficient operation
Table of Content
📙 Table of Contents

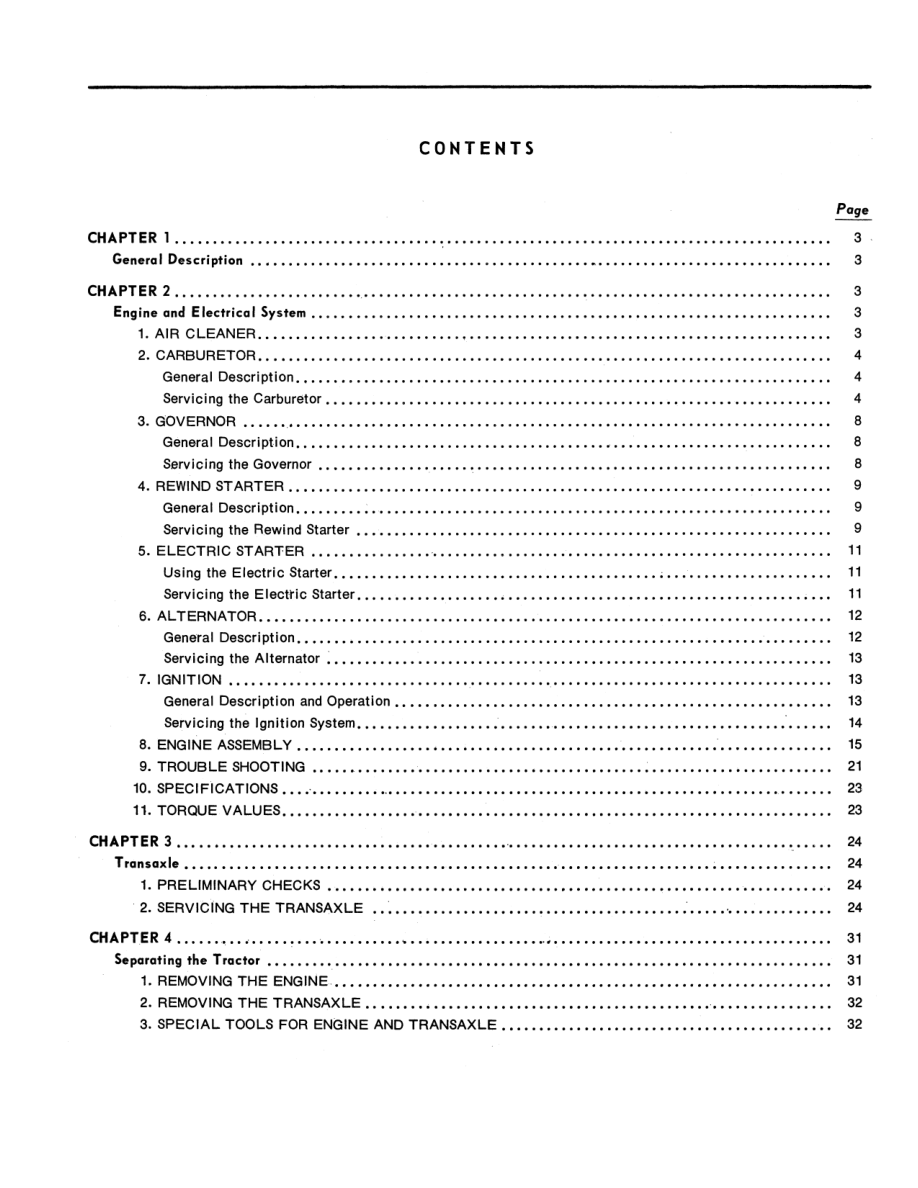

Chapter 1 – General Description/ Chapter 2 – Engine And Electrical System
- Chapter 1 – General Description/ Chapter 2 – Engine and Electrical System
Chapter 3 – Transaxle
- Chapter 3 – Transaxle
Chapter 4 – Separating The Tractor
- Chapter 4 – Separating The Tractor
Specification
| Specification | Ford 70 / 75 Lawn Tractor |
|---|---|
| Model Type | Lawn Tractor / Garden Tractor |
| Years Produced | 1968 – 1973 |
| Engine Manufacturer / Type | Briggs & Stratton; single cylinder, 4-cycle gasoline |
| Horsepower | 7 hp |
| Fuel Tank Capacity | 1 gallon (≈ 3.8 L) |
| Transmission | 3-speed gear (Peerless transaxle); 3 forward + 1 reverse |
| Steering / Drive | 2-wheel drive; manual steering |
| Electrical System | Ford 75: electric start, battery & alternator; 12 V system; Ford 70: recoil / pull-start (no electric start) |
| Wheelbase | 42 inches (≈ 106 cm) |
| Weight | ≈ 427 lbs (≈ 193 kg) |
| Tire Sizes (Front / Rear) | Front: 13×5.00-6; Rear: 18×8.50-8 |
| Attachments / Implements | 34″ mid-mount mower deck; blade; snowblower; optional accessories (on some variants) |
