Ford 230A, 340A, 445, 530A, 540A, 545 Tractor Repair Manual
$33.00
| 🚜 Equipment | |
|---|---|
| Brand | FORD |
| Type | Tractor |
| Model | 230A, 340A, 445, 530A, 540A, 545 |
| 📄 Documents | |
| Type | Repair Manual |
| Publication | 40023021 |
| Language | English |
| Format | |
| No of Pages | 800 |
The Ford 230A, 340A, 445, 530A, 540A, and 545 tractors are industrial-grade utility machines built for heavy-duty applications in construction, agriculture, and municipal operations. Produced during the early 1980s, these tractors were engineered for durability, reliability, and versatility, with engine options ranging from 40 hp in the 230A up to 60 hp in the 545. With 3-cylinder Ford diesel or gasoline engines, open-center hydraulic systems, and robust rear lift capacities, these tractors were designed to handle a wide variety of implements and attachments while maintaining compact maneuverability and industrial-grade performance.
The Ford 230A and 530A are Low Center Gravity (LCG) tractors, optimized for mowing, roadside work, and turf maintenance with lower stance and stability. The 340A and 540A serve as versatile utility tractors with higher horsepower and hydraulic lift capacities exceeding 3,000 lbs. The Ford 445 and 545 industrial models add heavy-duty frames, power steering, wet-disc brakes, and higher operating weights, making them well suited for loader work, material handling, and construction-grade tasks. Fuel capacities range from 13 to 16 gallons, with hydraulic systems supporting flows of approximately 5–6 gpm at 2,500 psi. Wheelbases vary between 75 and 81 inches depending on the model, offering both compact agility and field stability.
The comprehensive repair manual provides complete service coverage for all six models. Major sections include engine systems, fuel systems, electrical systems, clutches, transmission systems, power take-off, rear axle and brakes, steering systems, front axle, hydraulic system, tractor separation, and wheels and tires. Detailed step-by-step instructions, lubrication charts, troubleshooting guides, wiring diagrams, and exploded component views ensure accurate servicing and professional-level repairs. This manual enables technicians and owners to maintain peak performance and extend the service life of these Ford tractors.
Key Highlights
- Ford 230A: ~40–42 hp, LCG design for stability and mowing
- Ford 340A: ~48–52 hp utility tractor with higher hydraulic lift capacity
- Ford 445 Industrial: ~52 hp, heavy-duty industrial frame, ~3,080 lbs rear lift
- Ford 530A LCG: ~59 hp, designed for turf and roadside operations
- Ford 540A: ~59 hp, versatile industrial tractor with 8-speed or torque converter options
- Ford 545 Industrial: ~60 hp, industrial-grade with wet-disc brakes and loader compatibility
- Hydraulic system capacity ~6–8.5 gal; flow ~5–6 gpm at 2,500 psi
- Fuel tank capacity: 13–16 gallons depending on model
- Workshop manual sections: engine, fuel, electrical, clutches, transmission, PTO, rear axle/brakes, steering, hydraulics, wheels/tires
- Includes wiring diagrams, lubrication data, torque specifications, and troubleshooting charts
Table of Content
📙 Table of Contents
Part 1 – Engine Systems
- Part 1 – Engine Systems
Part 2 – Fuel Systems
- Part 2 – Fuel Systems
Part 3 – Electrical Systems
- Part 3 – Electrical Systems
Part 4 – Clutches
- Part 4 – Clutches

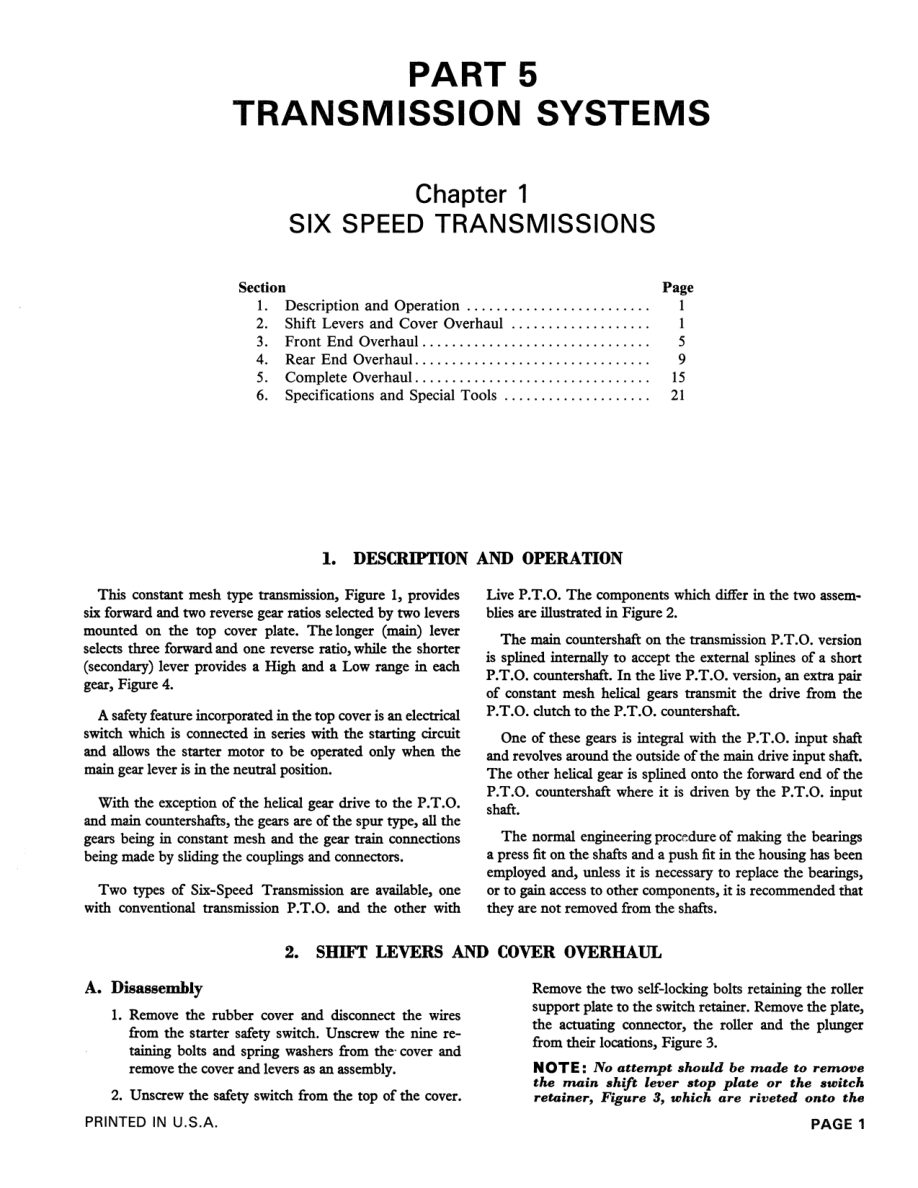

Part 5 – Transmission Systems
- Part 5 – Transmission Systems
Part 6 – Power Take-Off
- Part 6 – Power Take-Off
Part 7 – Rear Axle And Brakes
- Part 7 – Rear Axle and Brakes
Part 8 – Steering Systems
- Part 8 – Steering Systems
Part 9 – Front Axle
- Part 9 – Front Axle
Part 10 – Hydraulic System
- Part 10 – Hydraulic System
Part 11 – Separating The Tractor
- Part 11 – Separating The Tractor
Part 12 – Wheels And Tires
- Part 12 – Wheels and Tires
Specification
\\\
| Specification | Ford 230A LCG | Ford 340A | Ford 445 Industrial | Ford 530A LCG | Ford 540A | Ford 545 Industrial |
|---|---|---|---|---|---|---|
| Years Produced | 1981-1982 :contentReference[oaicite:0]{index=0} | ≈ early 1980s (1981-84) :contentReference[oaicite:1]{index=1} | Industrial variant; mid- to late-1970s through early 1980s; later versions as 445A etc. :contentReference[oaicite:2]{index=2} | 1981-1982 :contentReference[oaicite:3]{index=3} | 1981-1984 :contentReference[oaicite:4]{index=4} | Approx same era: early-1980s industrial tractors, similar family as 540A/445 etc. :contentReference[oaicite:5]{index=5} |
| Engine / Displacement | 2.9 L 3-cyl diesel; or 2.6 L gasoline 3-cyl :contentReference[oaicite:6]{index=6} | 3.3 L 3-cyl diesel (in 540A / 340A series) :contentReference[oaicite:7]{index=7} | ≈ 3.3-3.9 L (approx same family range); exact engine options vary :contentReference[oaicite:8]{index=8} | 3.3 L 3-cyl (diesel/gasoline options) :contentReference[oaicite:9]{index=9} | 3.3 L 3-cyl diesel (liquid cooled) :contentReference[oaicite:10]{index=10} | Same engine family / similar displacement (~3.3-3.9 L) in industrial spec. :contentReference[oaicite:11]{index=11} |
| Gross Horsepower | ≈ 40 hp (gasoline); ≈ 42 hp (diesel) :contentReference[oaicite:12]{index=12} | ≈ 48-52 hp (depending on variant) :contentReference[oaicite:13]{index=13} | 52 hp gross :contentReference[oaicite:14]{index=14} | ≈ 59 hp gross :contentReference[oaicite:15]{index=15} | ≈ 59 hp gross :contentReference[oaicite:16]{index=16} | ≈ 60 hp (industrial spec) :contentReference[oaicite:17]{index=17} |
| PTO / Claimed PTO Horsepower | ≈ 31-36 hp (diesel vs gas) :contentReference[oaicite:18]{index=18} | Not reliably found in my sources | ≈ 45 hp claimed PTO :contentReference[oaicite:19]{index=19} | ≈ 52 hp claimed PTO :contentReference[oaicite:20]{index=20} | ≈ 52 hp claimed PTO :contentReference[oaicite:21]{index=21} | ≈ 52-60 hp PTO, depending on variant :contentReference[oaicite:22]{index=22} |
| Hydraulic System Capacity & Pump Flow | Hydraulic system 6.2 gal; pump flow ≈ 5.1 gpm; pressure ≈ 2500 psi :contentReference[oaicite:23]{index=23} | Same family, but exact numbers vary; similar spec to 540A for pressure, flow :contentReference[oaicite:24]{index=24} | Hydraulic 8.5 gal; pump flow 5.6 gpm; pressure ~2,500 psi :contentReference[oaicite:25]{index=25} | 6.2 gal; flow ~5.1 gpm; pressure ~2,500 psi :contentReference[oaicite:26]{index=26} | Hydraulic 8.5 gal; flow 5.6 gpm; pressure ~2,500 psi :contentReference[oaicite:27]{index=27} | Similar to 540A / 445 values; exact not found in my sources but estimated in same range :contentReference[oaicite:28]{index=28} |
| Fuel Tank Capacity | 13 gal (≈ 49.2 L) :contentReference[oaicite:29]{index=29} | 16 gal (≈ 60.6 L) :contentReference[oaicite:30]{index=30} | 16 gal :contentReference[oaicite:31]{index=31} | 13 gal :contentReference[oaicite:32]{index=32} | 16 gal :contentReference[oaicite:33]{index=33} | Around 16 gal; similar family capacity :contentReference[oaicite:34]{index=34} |
| Rear Hitch / Lift Capacity (at 24 in / 610 mm) | ≈ 1,975 lbs (≈ 895 kg) :contentReference[oaicite:35]{index=35} | ≈ 3,080 lbs (≈ 1,397 kg) same as 540A and 445 class industrial tractors :contentReference[oaicite:36]{index=36} | 3,080 lbs :contentReference[oaicite:37]{index=37} | ≈ 1,975 lbs (similar to 230A / lower models) :contentReference[oaicite:38]{index=38} | 3,080 lbs :contentReference[oaicite:39]{index=39} | ≈ 3,080 lbs (same class) :contentReference[oaicite:40]{index=40} |
| Weight / Operating Weight | ≈ 3,670 lbs (≈ 1,664 kg) :contentReference[oaicite:41]{index=41} | Not reliably found in sources I checked | ≈ 5,000 lbs (≈ 2,268 kg) base unit; much heavier with loader or backhoe attachments :contentReference[oaicite:42]{index=42} | ≈ 3,710 lbs (≈ 1,682 kg) :contentReference[oaicite:43]{index=43} | Not clearly defined for base unit without attachments in my sources :contentReference[oaicite:44]{index=44} | Around same as 540A / 445 class; exact not confirmed :contentReference[oaicite:45]{index=45} |
| Transmission / Drive Features | 8-speed synchromesh; power assist steering; differential lock; 2WD industrial :contentReference[oaicite:46]{index=46} | Same industrial family; options include 6-speed, 8-speed, sometimes torque converter variants in related models :contentReference[oaicite:47]{index=47} | 2WD; hydrostatic power steering; standard diff. mechanical wet-disc brakes; ROPS options; industrial frame :contentReference[oaicite:48]{index=48} | 8-speed synchromesh; differential lock; 2WD industrial with power steering :contentReference[oaicite:49]{index=49} | Multiple transmission options including 6-speed, 8-speed, and torque converter (in some units) :contentReference[oaicite:50]{index=50} | Same class drive features as 545 family; industrial options similar to 540A/445 class :contentReference[oaicite:51]{index=51} |
| Dimensions & Ground Clearance | Wheelbase 75.8 in (~192 cm); Tires: front 6.00-16 / rear 8.30-24 :contentReference[oaicite:52]{index=52} | Wheelbase same as 540A/445 class ≈ 81 in; width, height etc vary with attachments :contentReference[oaicite:53]{index=53} | Wheelbase 81 in; Overall length ~124.5 in; Ground clearance ~13 in; width ~78 in; hood height ~55.4 in :contentReference[oaicite:54]{index=54} | Wheelbase 75.8 in (~192 cm); similar tire sizes to 230A; other dimensions closely matched to 230A/530A class :contentReference[oaicite:55]{index=55} | Wheelbase 81 in; dimensions similar to 445 class :contentReference[oaicite:56]{index=56} | Similar to 445/540A specs; exact measurement not fully confirmed in my sources :contentReference[oaicite:57]{index=57} |
