Ford 1910 and 2110 Tractors Repair Manual
$32.00
| 🚜 Equipment | |
|---|---|
| Brand | FORD |
| Type | Tractor |
| Model | 1910 and 2110 |
| 📄 Documents | |
| Type | Repair Manual |
| Publication | 40191020 |
| Language | English |
| Format | |
| No of Pages | 430 |
The Ford 1910 and 2110 tractors are part of Ford’s compact utility tractor range from the 1980s, built by Shibaura to deliver reliable performance for small farms, landscaping, and utility operations. The Ford 1910 is powered by a 1.7L 3-cylinder diesel engine rated at approximately 32 hp, while the larger Ford 2110 is equipped with a 2.3L 4-cylinder diesel producing about 38 hp. Both models were available in 2WD or 4WD, offering versatility for different applications and terrain conditions.
Equipped with 12-speed gear transmissions (unsynchronized or partially synchronized), differential lock, and rear drum brakes, these tractors are designed for durability and efficiency. The Ford 1910 delivers around 28.6 hp at the PTO, while the 2110 provides about 34–35 hp PTO power, making them suitable for a wide range of implements. Hydraulic systems are open-center with pump flows of ~8.6 gpm for the 1910 and ~12.1 gpm for the 2110, supporting Category I three-point hitches with rear lift capacities up to 3,800 lbs (1910) and around 2,000 lbs at 24 inches (2110). Fuel capacities of 9–10.6 gallons allow for extended operation, while operating weights range from ~3,000 to nearly 4,000 lbs.

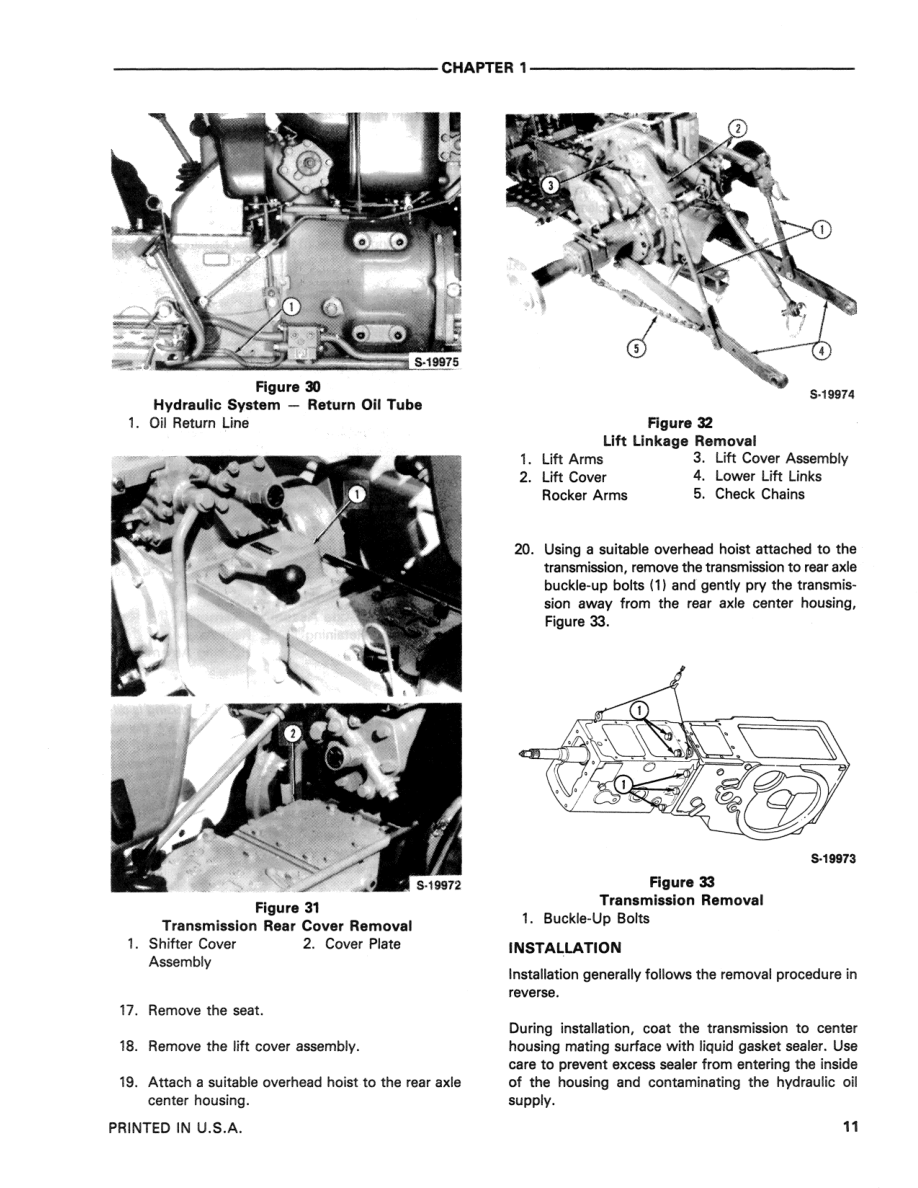

The comprehensive repair manual provides complete factory-level servicing instructions for both the Ford 1910 and 2110. Coverage includes engine systems, fuel system, electrical systems, clutch, transmission, PTO, differential and rear axle, brakes, hydraulics, steering, front axle, wheels and tires, and tractor separation procedures. The manual also includes supplements for hydraulic updates. Step-by-step repair procedures, exploded diagrams, wiring and hydraulic schematics, torque specifications, lubrication charts, and troubleshooting guides ensure professional-level maintenance and accurate repairs.
Key Highlights
- Ford 1910: 1.7L 3-cylinder diesel, ~32 hp gross, ~28.6 hp PTO
- Ford 2110: 2.3L 4-cylinder diesel, ~38 hp gross, ~35 hp PTO
- 12-speed transmissions (gear/partial sync), 2WD or 4WD configurations
- Open-center hydraulics with flows from 8.6 gpm (1910) to 12.1 gpm (2110)
- Category I three-point hitch with rear lift ~2,000–3,800 lbs depending on model
- Fuel tanks: 9.2 gal (1910) / 10.6 gal (2110) for extended operation
- Operating weights: ~3,000–3,950 lbs depending on drivetrain and configuration
- Workshop manual sections: engine, fuel, electrical, clutch, transmission, PTO, hydraulics, axle/brakes, steering, wheels/tires, separation

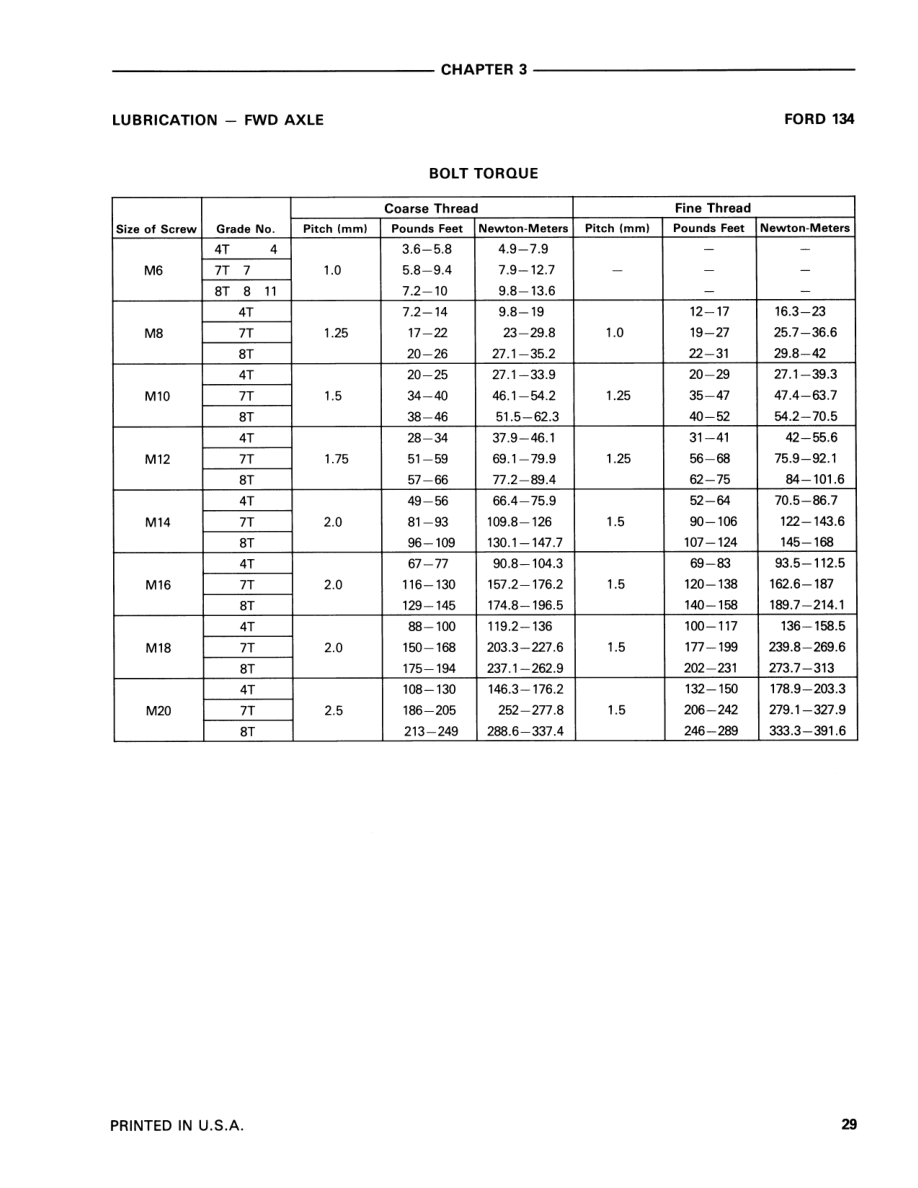

- Includes hydraulic and wiring diagrams, lubrication schedules, torque data, and troubleshooting charts
- Essential for accurate servicing, maintenance, and long-term reliability
Table of Content
📙 Table of Contents
Engine Systems – Models 1910 And 2110
- Engine Systems – Models 1910 and 2110
Fuel System
- Fuel System
Electrical Systems
- Electrical Systems
Clutch
- Clutch
Transmission Systems
- Transmission Systems
Power Take-Off System
- Power Take-Off System
Differential. Rear Axle And Brakes
- Differential. Rear Axle and Brakes
Hydraulic System
- Hydraulic System
Steering Systems
- Steering Systems
Front Axle And Related Parts
- Front Axle and Related Parts
Wheels And Tires
- Wheels and Tires
Separating The Tractor
- Separating The Tractor
Supplement To #40132030 And #40192020 Service Manual
- Supplement to #40132030 and #40192020 Service Manual
- Table of Contents
- Hydraulic System
Specification
| Specification | Ford 1910 | Ford 2110 |
|---|---|---|
| Years Produced | 1983 – 1986 :contentReference[oaicite:0]{index=0} | 1983 – 1987 :contentReference[oaicite:1]{index=1} |
| Engine / Displacement | Shibaura 1.7 L, 3-cylinder diesel :contentReference[oaicite:2]{index=2} | Shibaura 2.3 L, 4-cylinder diesel :contentReference[oaicite:3]{index=3} |
| Gross / Claimed Engine Power | 32 hp (≈ 23.9 kW) :contentReference[oaicite:4]{index=4} | 38 hp (≈ 28.3 kW) :contentReference[oaicite:5]{index=5} |
| PTO / Drawbar Power | PTO (tested) ~ 28.6 hp; Drawbar ~ 24.8 hp :contentReference[oaicite:6]{index=6} | PTO & Drawbar power higher; claimed PTO ~ 34.5 hp; tested ~ 35.1 hp; drawbar ~ 30.1 hp :contentReference[oaicite:7]{index=7} |
| Transmission / Drive Features | 12-speed gear (unsynchronized and partially synchronized); 2WD / 4WD variants; mechanical rear diff lock; manual steering :contentReference[oaicite:8]{index=8} | Same: 12-speed unsynchronized / partially synchronized; 2WD / 4WD; Power steering; rear diff lock; drum brakes; fixed ROPS :contentReference[oaicite:9]{index=9} |
| Hydraulic System / Pressure / Flow | Open center hydraulics; system capacity ~ 7.4 gal; pressure ~ 2133 psi; pump flow ~ 5.1 gpm; total flow ~ 8.6 gpm; steering ~ 3.5 gpm :contentReference[oaicite:10]{index=10} | Open center hydraulics; pressure ~ 2133 psi; pump flow ~ 8.6 gpm; total flow ~ 12.1 gpm; steering ~ 3.5 gpm :contentReference[oaicite:11]{index=11} |
| Rear Hitch / Lift Capacity | Rear lift at ends ~ 3,813 lbs; at 24 in ~ 1,584 lbs :contentReference[oaicite:12]{index=12} | Rear lift at 24 in ~ 2,013 lbs :contentReference[oaicite:13]{index=13} |
| Fuel & Hydraulic Capacities | Fuel ~ 9.2 gal; hydraulics ~ 7.4 gal :contentReference[oaicite:14]{index=14} | Fuel ~ 10.6 gal; hydraulic system capacity ~ similarly large; exact hydro capacity ~ ? :contentReference[oaicite:15]{index=15} |
| Dimensions / Weight | Wheelbase ~ 66.3 in (2WD); weight ~ 2,980-3,246 lbs depending on 2WD/4WD :contentReference[oaicite:16]{index=16} | Wheelbase ~ 73.4 in (2WD); ~75.6 in (4WD); operating weight ~ 3,635-3,946 lbs :contentReference[oaicite:17]{index=17} |
| Tires / Standard Tires | Front: 5.50-16; Rear: 13.6-24 (2WD); standard ag sizes; 4WD variants have larger fronts :contentReference[oaicite:18]{index=18} | Front: 6.00-16; Rear: 13.6-28 (2WD); 4WD changes front tires; turf / lawn options also available :contentReference[oaicite:19]{index=19} |
