Ford 1000 and 1600 Tractors Repair Manual
$21.00
| 🚜 Equipment | |
|---|---|
| Brand | FORD |
| Type | Tractor |
| Model | 1000 and 1600 |
| 📄 Documents | |
| Type | Repair Manual |
| Publication | 40100020 |
| Language | English |
| Format | |
| No of Pages | 116 |
The Ford 1000 and 1600 tractors are compact utility tractors built in partnership with Shibaura of Japan, designed to deliver reliable performance in agricultural, landscaping, and light utility tasks. Produced between 1973 and 1979, these models combine fuel-efficient 2-cylinder Shibaura diesel engines with a simple, durable drivetrain. The Ford 1000 delivers about 25 gross horsepower, while the Ford 1600 provides a similar output with additional configuration options, including 2WD or 4WD, making it adaptable for varied terrain and farm needs.
Both tractors are equipped with 9-speed gear transmissions, rear 3-point hitch (Category I), and independent 540 rpm PTO rated at approximately 23 hp. Hydraulics are open-center systems with pump flows around 4.2 gpm, while the 1600 provides a stronger rear lift capacity of up to 1,700 lbs. Compact dimensions, a wheelbase of about 62–66 inches, and operating weights of 2,300–2,700 lbs make these tractors maneuverable in tight spaces yet capable of handling heavy implements. Fuel tank capacities of 5.8 gallons and efficient engines ensure long hours of operation with minimal refueling.
The comprehensive repair manual covers every major system on the Ford 1000 and 1600 tractors. Key sections include engine, fuel system, electrical system, clutch, transmission and rear axle, hydraulics, steering and front axle, and wheels and tires. Each section provides step-by-step service procedures, troubleshooting charts, torque specifications, lubrication data, and detailed exploded component diagrams. This manual ensures owners and technicians can perform accurate repairs, preventative maintenance, and full restorations to factory standards.
Key Highlights
- Ford 1000: Shibaura 2-cylinder diesel, ~25 hp gross, ~23 hp PTO, 2WD compact utility
- Ford 1600: Shibaura 2-cylinder diesel, ~25.6 hp gross, ~23 hp PTO, available in 2WD or 4WD
- 9-speed gear transmission with 540 rpm PTO
- Hydraulics: open-center, ~4.2 gpm pump flow; 1600 lift capacity up to ~1,700 lbs
- Fuel tank capacity: 5.8 gallons for long operating time
- Compact wheelbase 62–66 inches, operating weight ~2,300–2,700 lbs
- Workshop manual sections: engine, fuel, electrical, clutch, transmission, hydraulics, steering, wheels/tires
- Includes lubrication data, torque charts, troubleshooting, and exploded diagrams
- Essential for accurate servicing, routine maintenance, and restoration projects
Table of Content
📙 Table of Contents

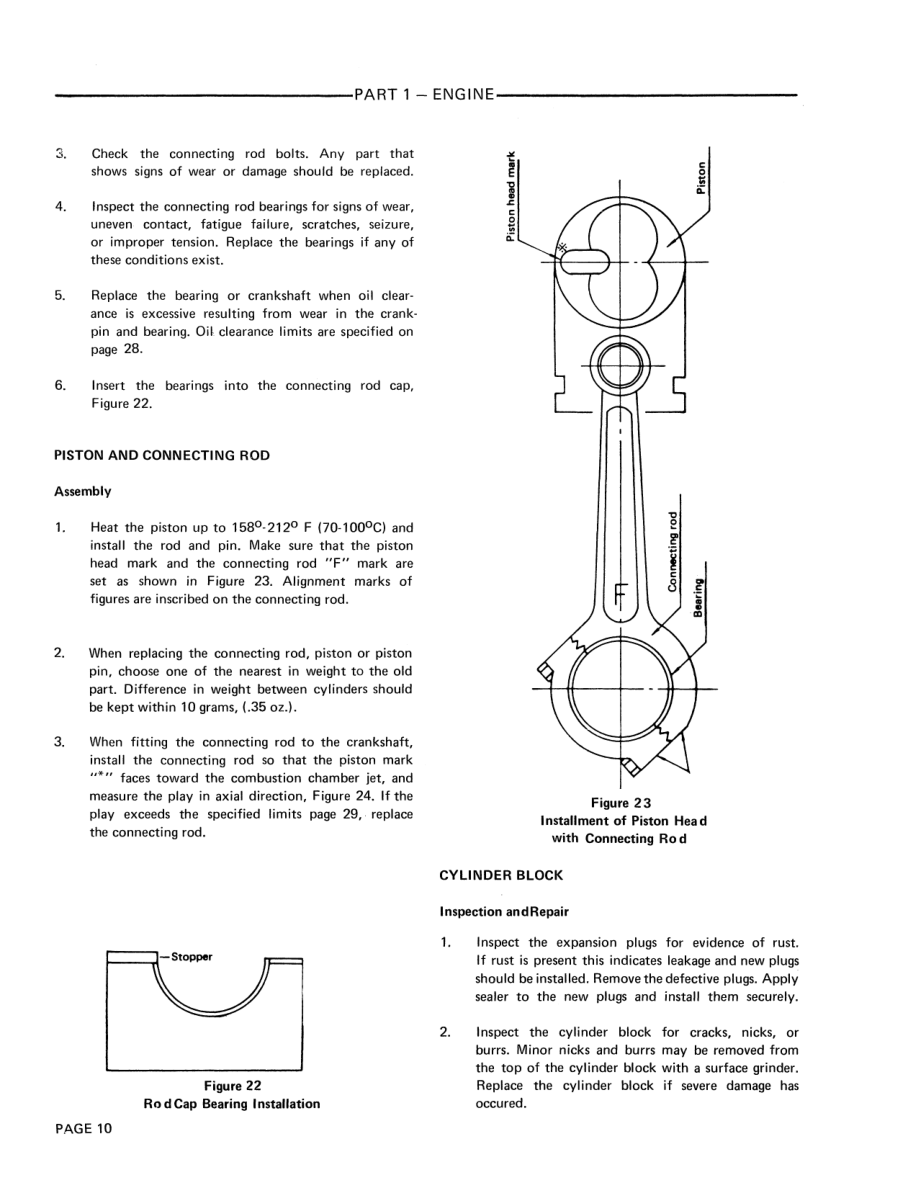

Engine
- Engine
Fuel System
- Fuel System
Electrical System
- Electrical System
Clutch
- Clutch

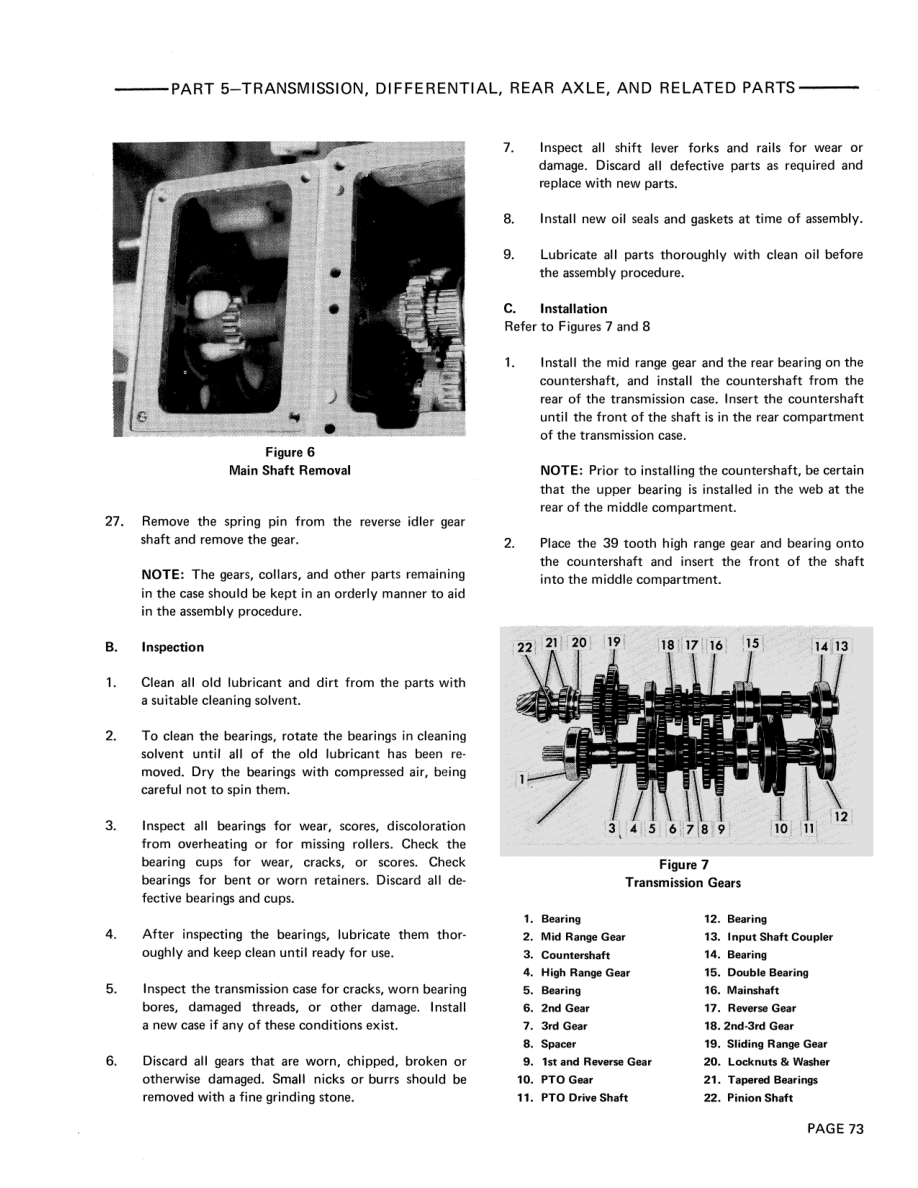

Transmission, Differential, Rear Axle, And Related Parts
- Transmission, Differential, Rear Axle, and Related Parts
Hydraulics
- Hydraulics
Steering And Front Axle
- Steering and Front Axle
Wheels And Tires
- Wheels and Tires
Specification
end{tbody>end{tbody>
| Specification | Ford 1000 | Ford 1600 |
|---|---|---|
| Years Produced | 1973 – 1976 :contentReference[oaicite:0]{index=0} | 1976 – 1979 :contentReference[oaicite:1]{index=1} |
| Engine / Displacement | Shibaura 2-cylinder diesel, 1.3 L (77.6 cu in) :contentReference[oaicite:2]{index=2} | Shibaura 2-cylinder diesel, 1.3 L (same core design) :contentReference[oaicite:3]{index=3} |
| Gross Horsepower | 25 hp (18.6 kW) :contentReference[oaicite:4]{index=4} | ≈ 25.6 hp (estimated) :contentReference[oaicite:5]{index=5} |
| PTO / Claimed PTO Power | 23 hp claimed PTO :contentReference[oaicite:6]{index=6} | 23 hp claimed PTO :contentReference[oaicite:7]{index=7} |
| Transmission | 9-speed gear :contentReference[oaicite:8]{index=8} | 9-speed gear :contentReference[oaicite:9]{index=9} |
| Drive / Steering / Brakes | 2-WD; manual steering; differential lock mechanical rear; open station; optional ROPS :contentReference[oaicite:10]{index=10} | 2- or 4-WD; manual steering; mechanical differential-lock rear; expanding shoe brakes; open station with optional ROPS :contentReference[oaicite:11]{index=11} |
| Fuel Tank Capacity | 5.8 gal (≈ 22.0 L) :contentReference[oaicite:12]{index=12} | 5.8 gal (≈ 22.0 L) :contentReference[oaicite:13]{index=13} |
| Hydraulic System / Capacity / Pump Flow / Pressure | Open-center hydraulics; capacity 2.1 gal (≈ 7.9 L); pump flow ~4.2 gpm (≈ 15.9 L/min) :contentReference[oaicite:14]{index=14} | Open-center hydraulics; capacity ~2.6 gal (≈ 9.8 L); pump flow ~4.2 gpm; pressure ~1,422 psi :contentReference[oaicite:15]{index=15} |
| Rear Hitch / Lift Capacity | Rear Hitch Type I :contentReference[oaicite:16]{index=16} | Rear Hitch Type I; rear lift at ends ~1,700 lbs (≈ 771 kg) :contentReference[oaicite:17]{index=17} |
| Wheelbase | 62.6 in (≈ 159 cm) :contentReference[oaicite:18]{index=18} | 62.6 in (2-WD) / 66.3 in (4-WD) :contentReference[oaicite:19]{index=19} |
| Weight / Operating Weight | ≈ 2,300 lbs (≈ 1,043 kg) :contentReference[oaicite:20]{index=20} | ≈ 2,288-2,690 lbs depending on configuration :contentReference[oaicite:21]{index=21} |
| Tires (Front / Rear) | Front: 5.00-15; Rear: 11.2-24 :contentReference[oaicite:22]{index=22} | Front: 5.00-15; Rear: 11.2-24 (for 2-WD unit) :contentReference[oaicite:23]{index=23} |
