Shibaura N843T-F, N844L-F, N844LT Diesel Engines Repair Manual
Price range: $20.00 through $40.00
| 🚜 Equipment | ||
|---|---|---|
| Brand | Shibaura | |
| Type | Diesel Engines | |
| Model | N843T-F, N844L-F, N844LT | |
| 📄 Documents | ||
| Language | English | |
| Format | ||
| Title | Publication No. | Pages |

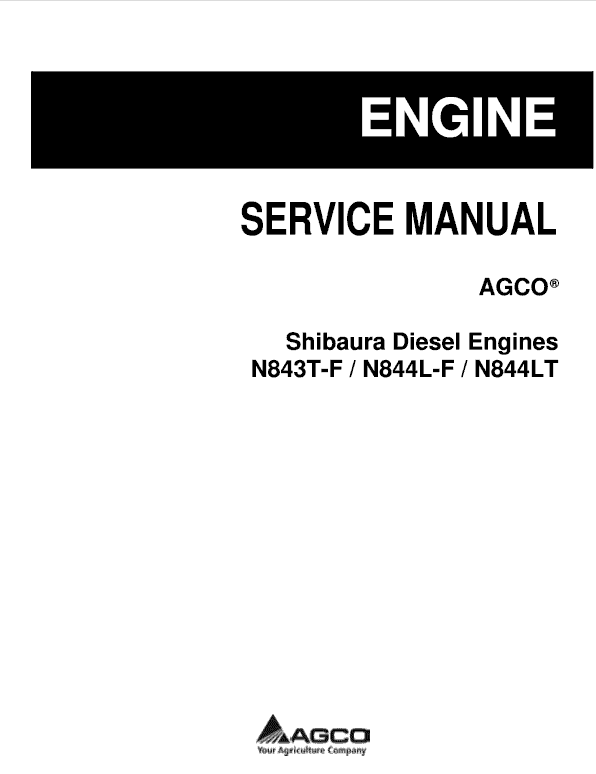

| Repair Manual | 79036468 | 130 |

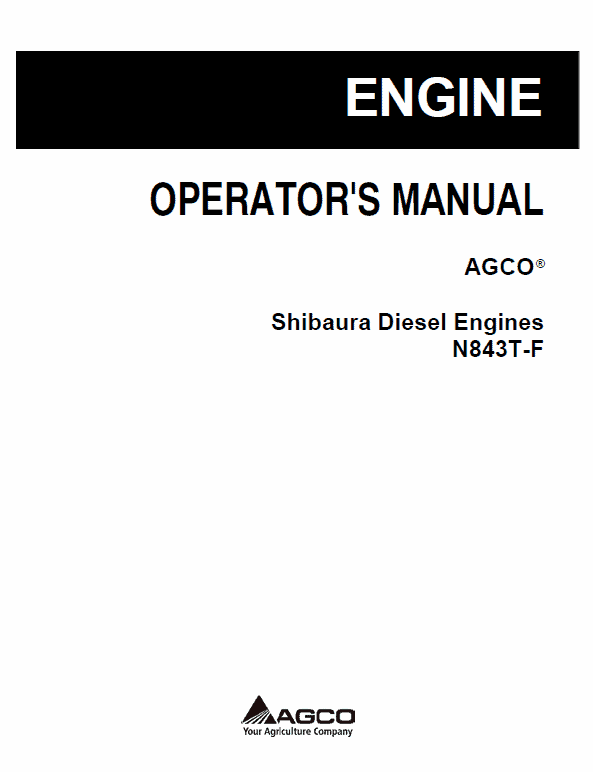

| Operator’s Manual | 79036469 | 54 |
- Description
- Additional information
- Table of Content
- Specification
- Buyer Questions & Answers
- Reviews (0)
Preface
The IHI Shibaura Machinery Corporation (ISM) industrial diesel engines are a product of ISM’s long years of experience and advanced technology. ISM takes great pride in the superior durability and operating economy of these engines.
In order to get the fullest use and benefit from your industrial engine, it is important that you operate and maintain it correctly. This Manual is designed to help you do this.
Please read this Manual carefully and follow its operating and maintenance recommendations. This will ensure many years of trouble-free and economical engine operation.
Should your engine require servicing, please contact your nearest ISM engine outlet or branch office that is authorized by ISM or the original equipment manufacturer. He knows your engine best and is ready to meet your satisfaction.
All information, illustrations, and specifications contained in this Manual are based on the latest product information available at the time of publication. ISM reserves the right to make changes in this Manual at any time without prior notice.
| Manual | Repair Manual, Operator's Manual, Both |
|---|
Table of Content
📙 Table of Contents
PART 1 – SECTION 1 GENERAL
- General notes before service
- Fundamental instructions on service
- Tightening torque specifications
- Engine sectional drawing
- Main data and specifications
- Parts name and position
- Disassembly
PART 2 – SECTION 2 DISASSEMBLY, INSPECTION AND REPAIR
- Caution before start
- Disassembly, Inspection of engine main parts
- Engine reassembly
- Electric unit
- Clamp position
PART 3 – SECTIONS TROUBLESHOOTING
- Engine trouble shooting
- Burner trouble shooting
PART 4 – SECTION 4 SERVICING STANDARD DATA
- Servicing standard data
PART 5 – SECTIONS TABLE OF DIAGNOSTIC
- Composition of service tool
- Diagnostic flowchart
- Malfunction cause
- System information
PART 6 – SECTION 6 ACTIVE TEST
- Active test
PART 7 – DIAGNOSTIC REFERENCE CHART
- Diagnostic reference chart
Specification
| Specification | N843T-F | N844L-F | N844LT |
|---|---|---|---|
| Configuration | 3-cyl, turbo diesel | 4-cyl, naturally-aspirated diesel | 4-cyl, turbo diesel |
| Displacement | 91.3 ci / 1.496 L | 135 ci / 2.216 L | 135 ci / 2.216 L |
| Bore × Stroke | 84 × 90 mm | 84 × 100 mm | 84 × 100 mm |
| Rated Power | 24 – 32 hp (17.9 – 24 kW) @ 2600 rpm | 47 hp (35 kW) @ 2800 rpm | 60 hp (45 kW) @ 2800 rpm |
| Peak Torque | — | 143 Nm @ 1800 rpm | 188 Nm @ 1800 rpm |
| Emission Tier | EPA Tier 4 (iEGR) | Tier 4 Final | Tier 4i / Stage 3B |
| Fuel System | Electronic indirect injection | Mechanical indirect injection | Mechanical indirect injection |
| Cooling | Liquid-cooled | Liquid-cooled | Liquid-cooled |
