Case SR220, SR250, SV250, SV300 SkidSteer Repair Manual

Case SR220, SR250, SV250, SV300 SkidSteer Repair Manual

$36.00

🚜 Equipment
Brand	CASE
Type	SkidSteer
Model	SR220, SR250, SV250, SV300
📄 Documents
Language	English
Format	PDF
Title	Serial	Publication No.	Pages

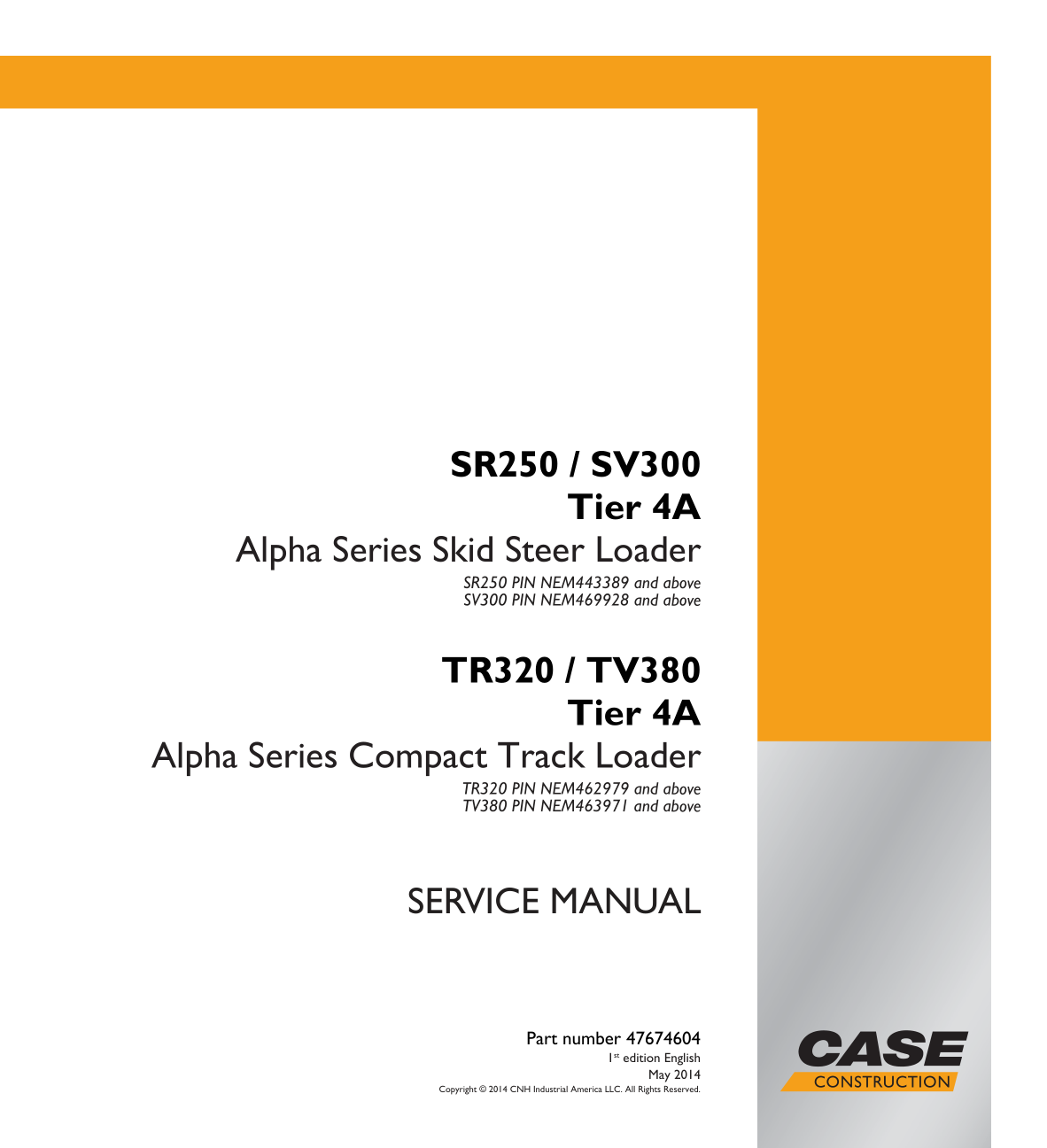

Repair Manual – Tier 4A (Europe)	SR250 – SN NEM443389 and above; SV300 – SN NEM469928 and above	47674604	2061

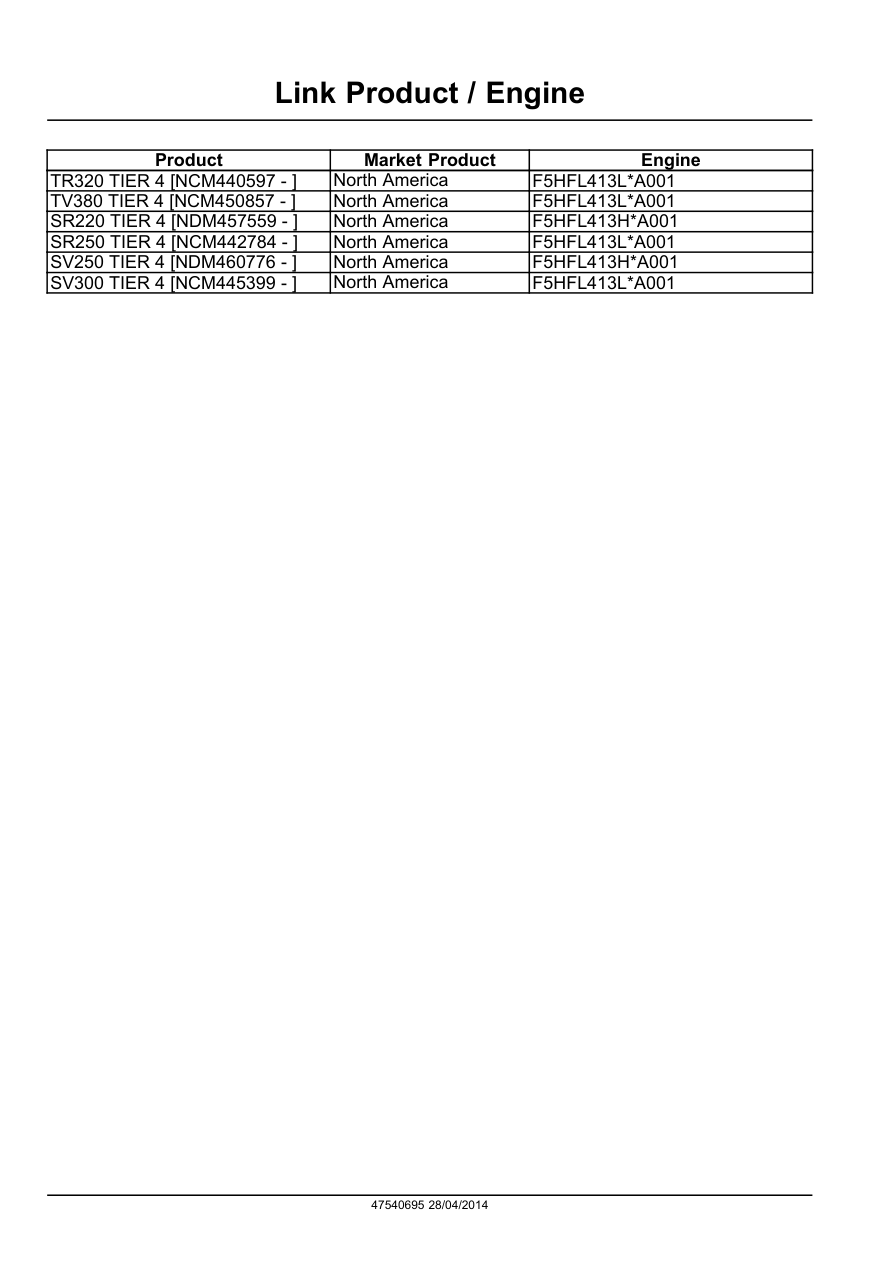

Repair Manual – Tier 4A (North Ameria)	SR220 – SN NDM457559 and above; SR250 – SN NCM442784 and above; SV250 SN NDM460776 and above; SV300 SN NCM445399 and above;	47540695	2091

The Case SR220, SR250, SV250, and SV300 Skid Steer Loaders are heavy-duty machines designed for contractors and operators who require maximum power, lift capacity, and hydraulic performance in their operations. With engine power ratings ranging from 82 hp on the SR220 to 90 hp on the SR250, SV250, and SV300, these loaders deliver dependable performance for construction, agriculture, and industrial applications. Rated operating capacities span from 2,200 lbs to 3,000 lbs, making this series highly versatile for handling demanding workloads.

The SR220 delivers a 2,200 lb rated operating load and comes equipped with standard and optional high-flow hydraulics for efficient attachment performance. The SR250 and SV250 both provide 2,500 lb rated operating loads, powered by robust 90 hp engines for increased torque and breakout force. The SV300, the largest in this group, raises the rated capacity to 3,000 lbs with an operating weight of 8,300 lbs, providing superior lifting strength and vertical lift geometry for greater reach and truck loading efficiency. Hydraulic flows of up to 131–142 L/min on high-flow models ensure compatibility with high-demand attachments. Compact dimensions paired with operating weights between 7,400 lbs and 8,300 lbs provide excellent stability without compromising maneuverability.

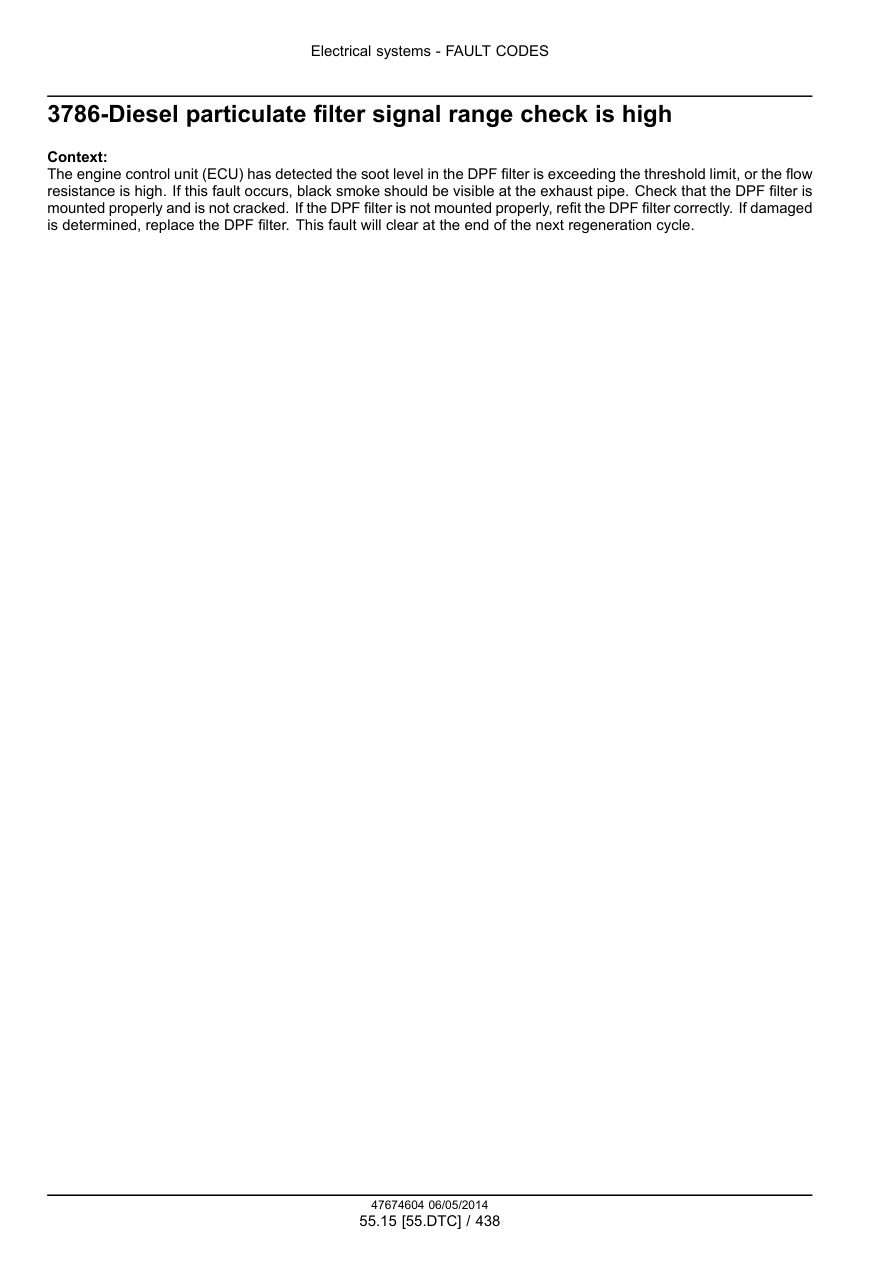

The service manual covers all systems comprehensively, including the engine, hydrostatic drive, axles, brakes, hydraulic systems, electrical systems, loader arms and bucket assemblies, tracks and suspension, climate control, and platform/cab components. It also includes electrical and hydraulic schematic posters for detailed diagnostics. Step-by-step instructions, lubrication schedules, torque specifications, and troubleshooting procedures ensure reliable maintenance and long service life of these machines.

Key Highlights

Case SR220: 82 hp diesel engine, 2,200 lb rated operating capacity, ~7,400 lb operating weight
Case SR250: 90 hp diesel engine, 2,500 lb rated capacity, ~7,690 lb operating weight
Case SV250: 90 hp diesel engine, 2,500 lb rated capacity, ~8,000 lb operating weight
Case SV300: 90 hp diesel engine, 3,000 lb rated capacity, ~8,300 lb operating weight
Hydraulic auxiliary flow up to 85 L/min (standard) and 131–142 L/min (high-flow models)
Travel speeds up to ~7–12 mph depending on configuration
Vertical lift design on SV models for greater reach and loading efficiency
Manual covers engine, hydraulics, hydrostatic drive, axles, brakes, and electrical systems
Includes hydraulic and electrical schematic posters for professional troubleshooting
Built for operator comfort with climate-controlled cab and ergonomic controls

Publication	47674604, 47540695
