Case SR210, SR240, SV280 SkidSteer Repair Manual (Tier 4B)

Case SR210, SR240, SV280 SkidSteer Repair Manual (Tier 4B)

$36.00

🚜 Equipment
Brand	CASE
Type	SkidSteer
Model	SR210, SR240, SV280
📄 Documents
Language	English
Format	PDF
Title	Serial	Publication No.	Pages

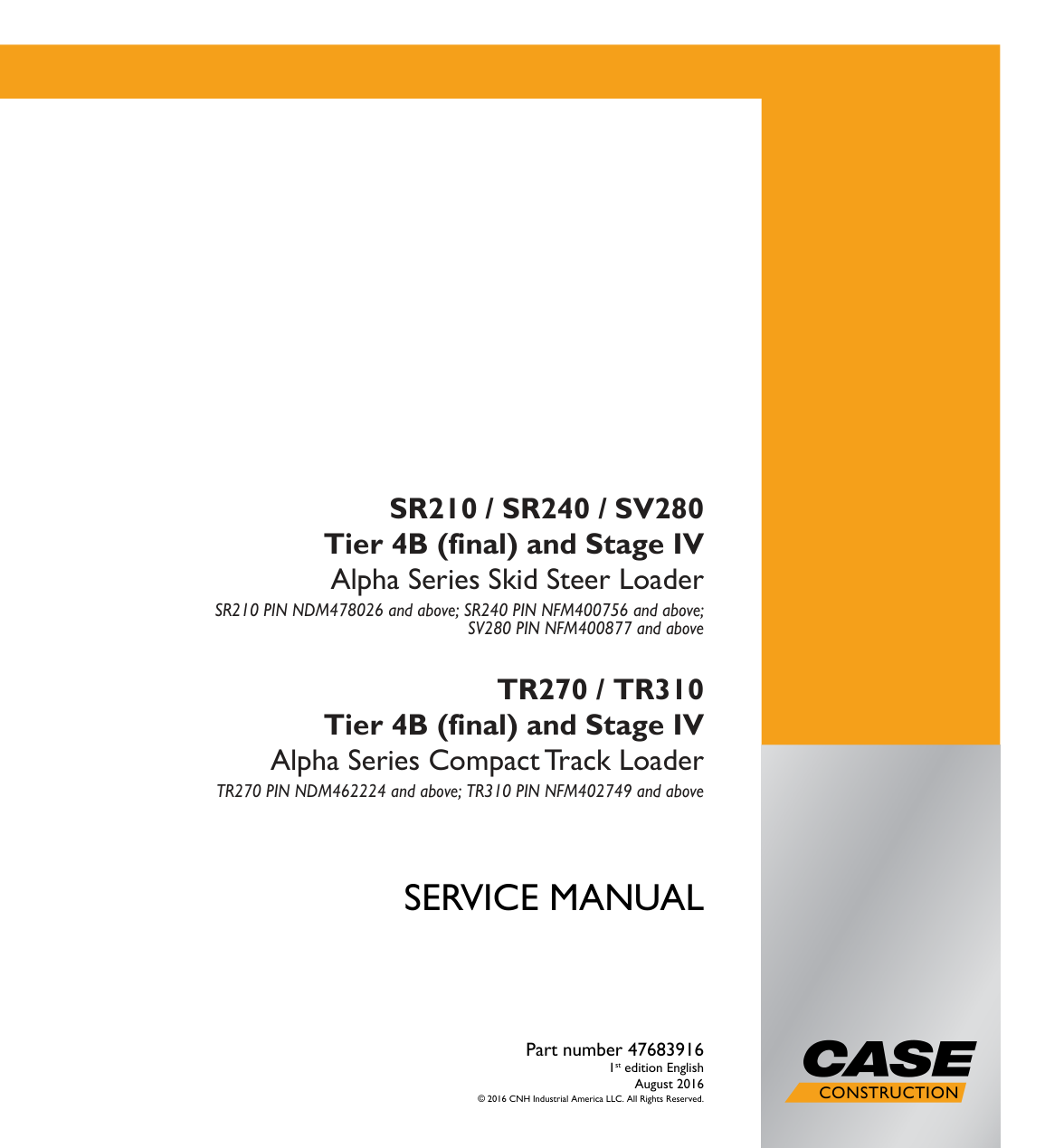

Repair Manual – Tier 4B (final) and Stage IV	SR210 – SN NDM478026 and above; SR 240 – SN NFM400756 and above; SV280 – SN NFM400877 and above	47683916	2205
Repair Manual – Tier 4B (final)	SR210 – SN NDM478026 and above; SR240 – SN NFM400756 and above; SV280 – SN NFM400877 and above	47851948	2120

The Case SR210, SR240, and SV280 Tier 4B Skid Steer Loaders are powerful and efficient mid-frame machines engineered to handle demanding construction, agricultural, and material-handling tasks. Built with Tier 4 Final turbocharged diesel engines delivering 74 gross horsepower (68 net hp), these loaders combine reliable performance with emissions compliance and fuel efficiency. With rated operating capacities ranging from 2,100 lbs on the SR210 up to 2,800 lbs on the SV280, this series offers excellent lifting strength and breakout force for a wide range of attachments and applications.

The SR210 delivers a 2,100 lb rated load with a tipping capacity of 4,200 lbs, making it a strong performer in compact applications. The SR240 increases rated capacity to 2,400 lbs with a tipping load of 4,800 lbs, supported by optional high-flow hydraulics delivering up to 37.6 GPM at 3,050 psi for demanding attachments. The SV280, with its vertical lift design, offers the highest capacity in this series at 2,800 lbs rated load and 5,600 lbs tipping load, providing greater reach and stability for material loading. Operating weights span from 6,967 lbs (SR210) to 8,090 lbs (SV280), ensuring excellent stability while maintaining maneuverability. Hydraulic breakout forces of up to 8,680 lbs provide strong digging and lifting performance.

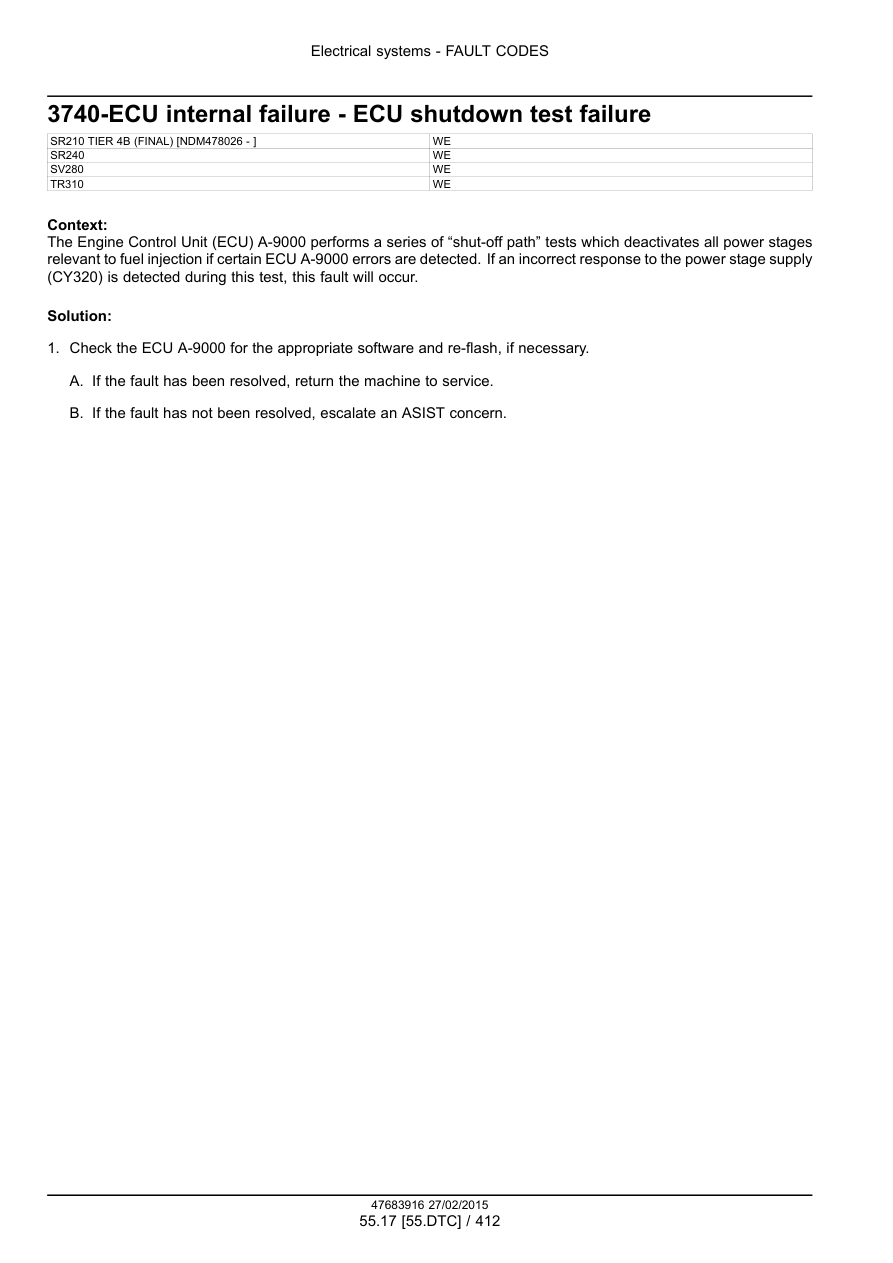

The service manual provides comprehensive coverage of all major systems, including the engine, power coupling, hydrostatic drive, axles, brakes and controls, hydraulic systems, tracks and track suspension, frames and ballasting, wheels, cab climate control, electrical systems, loader and bucket assemblies, and operator platform and cab bodywork. Detailed instructions, hydraulic and electrical schematics, torque specifications, lubrication schedules, and troubleshooting procedures ensure accurate maintenance and long service life of these machines.

Key Highlights

74 hp turbocharged Tier 4 Final engine (68 net hp) for all models
Rated operating capacities: SR210 – 2,100 lbs; SR240 – 2,400 lbs; SV280 – 2,800 lbs
Tipping loads: SR210 – 4,200 lbs; SR240 – 4,800 lbs; SV280 – 5,600 lbs
Hydraulic auxiliary flow: 24.2 GPM (standard) / 37.6 GPM (high-flow option on SR240 & SV280)
Operating weights: SR210 – 6,967 lbs; SR240 – 7,400 lbs; SV280 – 8,090 lbs
Breakout force up to 8,680 lbs for strong lifting and digging performance
Vertical lift design on SV280 for enhanced reach and stability
Comprehensive service manual coverage: engine, hydrostatic drive, hydraulics, axles, brakes, tracks, and electrical systems

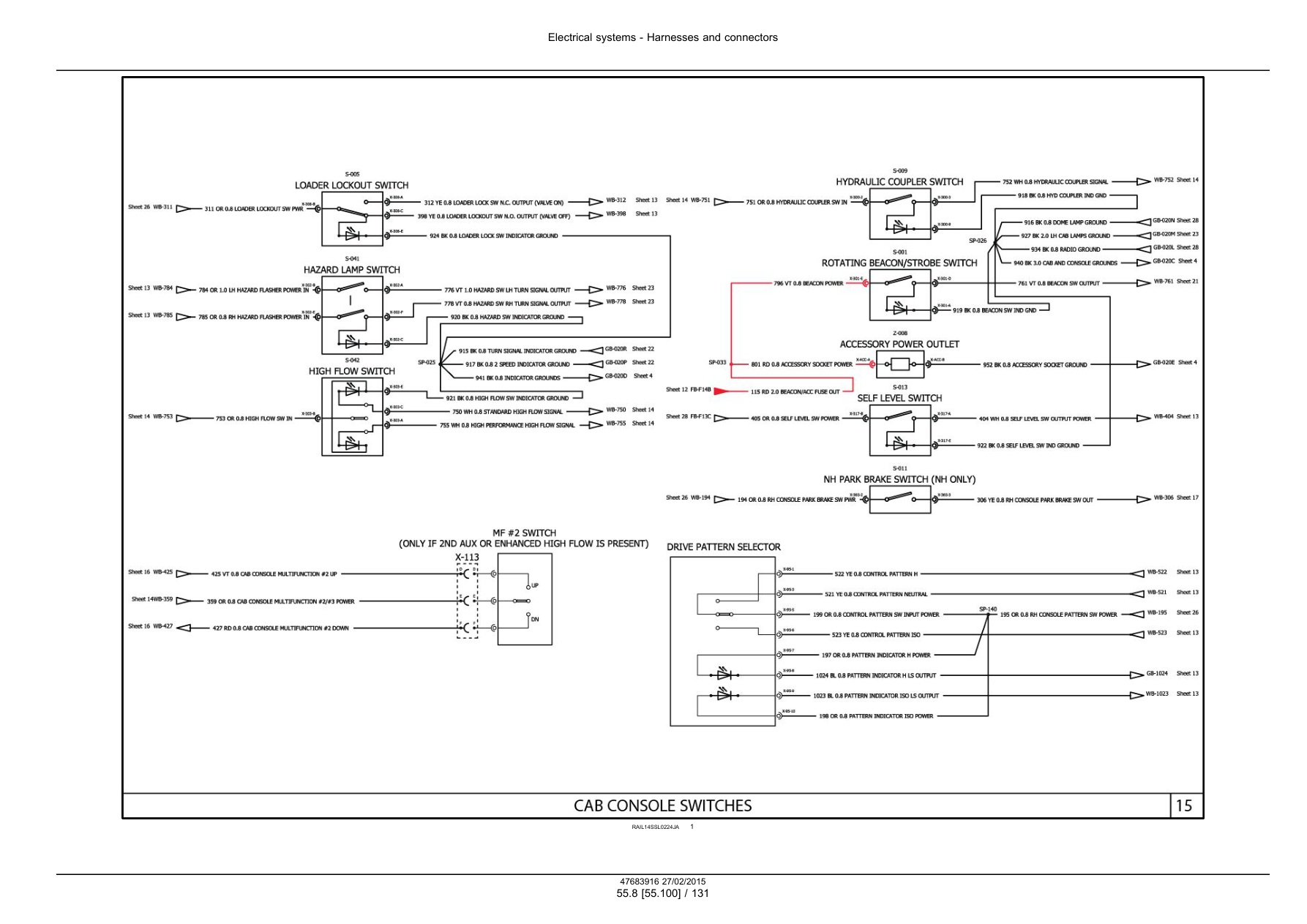

Includes wiring diagrams, hydraulic schematics, torque values, and lubrication guides
Designed for operator comfort with cab climate control and ergonomic controls

Publication	47683916, 47851948

Table of Content

📙 Table of Contents – Publication Number 47683916

Contents

Contents

Introduction

INTRODUCTION

Engine – 10

Engine – 10

Power Coupling – 19

Power coupling – 19

Front Axle System – 25

Front axle system – 25

Rear Axle System – 27

Rear axle system – 27

Hydrostatic Drive – 29

Hydrostatic drive – 29

Brakes And Controls – 33

Brakes and controls – 33

Hydraulic Systems – 35

Hydraulic systems – 35

Frames And Ballasting – 39

Frames and ballasting – 39

Wheels – 44

Wheels – 44

Tracks And Track Suspension – 48

Tracks and track suspension – 48

Cab Climate Control – 50

Cab climate control – 50

Electrical Systems – 55

Electrical systems – 55

Front Loader And Bucket – 82

Front loader and bucket – 82

Platform, Cab, Bodywork, And Decals – 90

Platform, cab, bodywork, and decals – 90

Special Tool Index

SPECIAL TOOL INDEX

Specification

Specification	Case SR210 Skid-Steer Loader	Case SR240 Skid-Steer Loader	Case SV280 Skid-Steer Loader
Engine Power	74 hp gross / 68 hp net	74 hp gross / 68 hp net	74 hp gross / 68 hp net
Rated Operating Capacity (50%)	2,100 lb (953 kg)	2,400 lb (1,088 kg)	2,800 lb (1,270 kg)
Tipping Load	~4,200 lb (1,905 kg)	~4,800 lb (2,177 kg)	~5,600 lb (2,540 kg)
Hydraulic Breakout Force (Bucket Cyl.)	~7,270 lb (32.3 kN)	~8,680 lb (39.4 kN)	~8,580 lb (~38.0 kN)
Auxiliary Hydraulic Flow	24.2 gpm	24.2 gpm (std) / 37.6 gpm (high flow)	24.2 gpm (std) / 37.6 gpm (high flow)
Operating Weight	~6,967 lb (3,160 kg)	~7,400 lb (3,350 kg)	~8,090 lb (3,670 kg)
Lifting Style	Radial	Radial	Vertical
