Case 410 and 420 SkidSteer Loader Repair Manual
$31.00
| đźšś Equipment | |
|---|---|
| Brand | CASE |
| Type | Skidsteer |
| Model | 410 and 420 |
| đź“„ Documents | |
| Type | Repair Manual |
| Publication | 6-78950 |
| Language | English |
| Format | |
| No of Pages | 468 |
The Case 410 and 420 Skid Steer Loaders are compact, reliable machines built for productivity and durability on construction sites, landscaping projects, and agricultural operations. With engines ranging from 51 to 56 gross horsepower and operating capacities between 1,500 and 1,750 lbs, these loaders provide strong breakout forces and excellent maneuverability in confined spaces.
The Case 410 is equipped with a naturally aspirated 422/M2 Tier II diesel engine producing 51 hp, while the Case 420 features a turbocharged 422T/M2 Tier II diesel with 56 hp, offering more torque and lifting power. Both models feature robust hydraulic systems—18 GPM on the 410 and 20 GPM on the 420—paired with relief pressures around 3,000 psi, giving operators the capability to run a wide range of attachments. Their compact dimensions and travel speeds up to 7 mph ensure quick cycle times and versatility across different job sites.
The repair manual provides comprehensive coverage of all major systems, including the engine, fuel, electrical, tracks, power train, brakes, hydraulics, and mounted equipment. Hydraulic and electrical schematic foldouts (including Tier 3 cab upgrade versions) are included for advanced diagnostics and troubleshooting. With clear step-by-step repair instructions, torque specifications, lubrication schedules, and wiring diagrams, owners and technicians can keep these machines performing at factory standards for years of service.
Key Highlights
- Case 410: 51 hp naturally aspirated engine, 1,500 lb rated operating load
- Case 420: 56 hp turbocharged engine, 1,750 lb rated operating load
- Hydraulic flow: 18 GPM (410) / 20 GPM (420) at ~3,000 psi system pressure
- Operating weights: 410 at 5,483 lbs, 420 at 5,813 lbs
- Fuel tank capacity: 22 gallons for extended operation
- Compact frame and up to 7 mph travel speed for excellent job site mobility
- Full coverage of engine, power train, brakes, hydraulics, and mounted equipment
- Includes hydraulic and electrical schematic foldouts (standard and Tier 3 cab upgrade)
- Designed for durability and easy maintenance with centralized service accessv

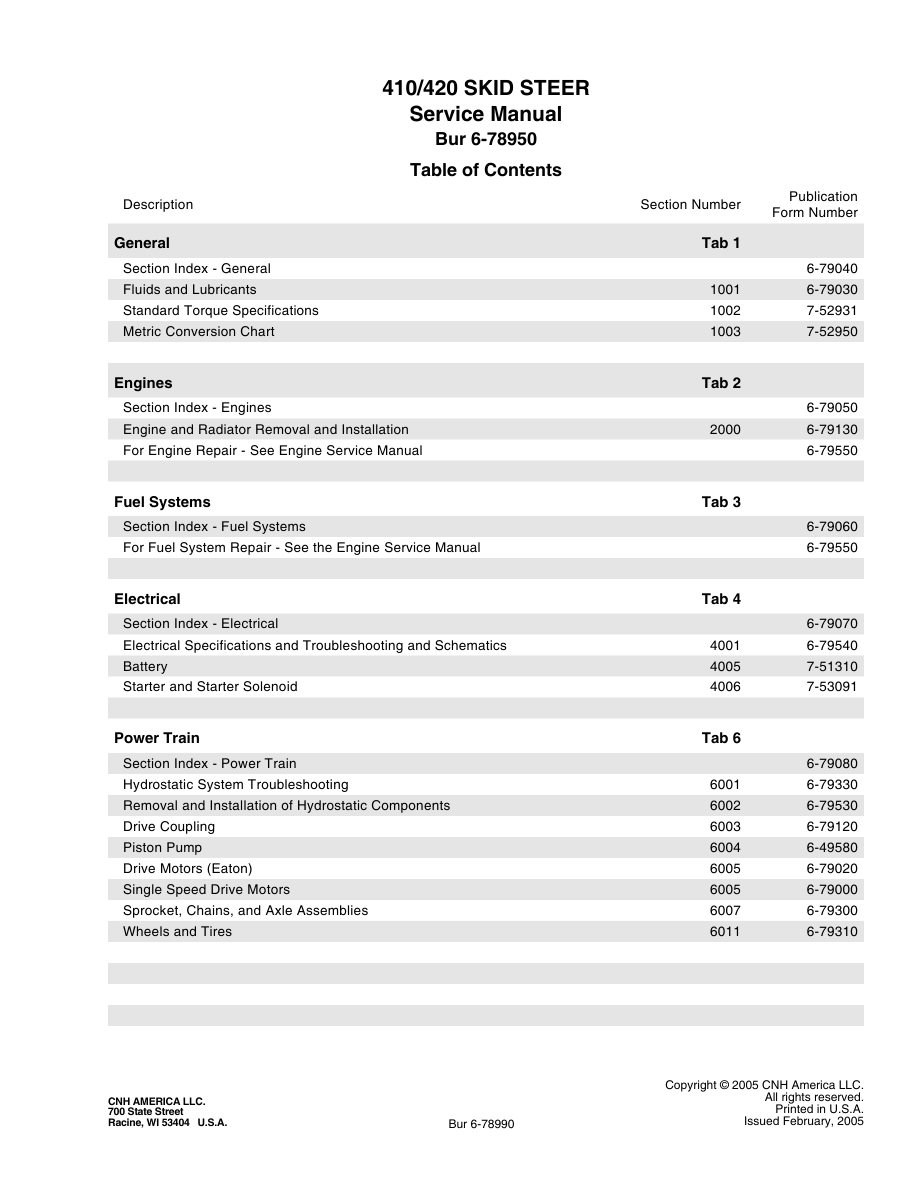

Table of Content
đź“™ Table of Contents
Table Of Contents
- Table of Contents
General
- GENERAL
Engine
- ENGINE
Fuel System
- FUEL SYSTEM
Electrical System
- ELECTRICAL SYSTEM
Tracks
- TRACKS
Power Train
- POWER TRAIN
Brakes
- BRAKES
Hydraulics
- HYDRAULICS
Mounted Equipment
- MOUNTED EQUIPMENT
Hydraulic And Electrical Schematic Foldout
- Hydraulic and Electrical Schematic Foldout
Hydraulic And Electrical Schematic Foldout (Tier 3 – Cab Up-Grade And
- Hydraulic and Electrical Schematic Foldout (Tier 3 – Cab Up-Grade and
Specification
| Specification | Case 410 Skid-Steer Loader | Case 420 Skid-Steer Loader (Series 3) |
|---|---|---|
| Engine Model & Aspiration | 422/M2, Tier II, naturally aspirated | 422T/M2, Tier II, turbocharged |
| Displacement | 134 cu in (2.2 L) | 134 cu in (2.2 L) |
| Gross Power | 51 hp | 56 hp (42 kW) |
| Net Power | 49 hp | — |
| Operational Weight | 5,483 lb | 5,813 lb |
| Fuel Capacity | 22 gal | 22 gal |
| Hydraulic Pump Flow | 18 gpm | 20 gpm |
| Relief Valve Pressure | 3,000 psi | 3,050 psi |
| Operating Load Rating | 1,500 lb | 1,750 lb |
| Bucket Capacity | 0.5 ydÂł | 1 ydÂł |
| Max Speed | 6.8 mph | 7 mph |
| Dimensions (L × W × H w/ bucket) | Length 10.26 ft · Width 4.08 ft · Height 6.28 ft | Length 10.8 ft · Width 4.93 ft · Height 6.57 ft |
