Case 1845C SkidSteer Repair Manual
$33.00
| đźšś Equipment | |
|---|---|
| Brand | CASE |
| Type | SkidSteer |
| Model | 1845C |
| đź“„ Documents | |
| Type | Repair Manual |
| Publication | 8-18953 |
| Language | English |
| Format | |
| No of Pages | 756 |
The Case 1845C Skid Steer Loader is one of the most iconic and best-selling skid steers produced by Case, recognized for its durability, ease of service, and strong all-around performance. Equipped with the Case 4-390 4-cylinder diesel engine, the 1845C delivers 60 gross horsepower (57 net hp) and 179 lb·ft of torque, making it a reliable choice for heavy-duty applications. With a rated operating load of 1,750 lbs and a tipping capacity of 3,545 lbs, the 1845C provides the lifting strength and stability required for construction, agriculture, and material-handling operations.
The hydraulic system offers 16 GPM at 2,300 psi, ensuring efficient attachment performance and consistent cycle times. Its hydrostatic drive system delivers smooth, responsive control with travel speeds up to 6.1 mph, while the robust chain-case final drive ensures long-term reliability. An operating weight of just over 6,100 lbs balances strength with maneuverability, and compact dimensions—around 11 ft long and under 6 ft wide—make the 1845C capable of working effectively in confined spaces. A 19.5-gallon fuel tank supports extended work shifts with minimal downtime.
The repair manual provides complete coverage of the machine’s systems, including engines, fuel system, electrical, power train, hydraulics, mounted equipment, and rear pocket assemblies. With step-by-step repair instructions, wiring diagrams, hydraulic schematics, torque values, and service schedules, the manual is a vital resource for technicians and owners seeking to maintain factory-level reliability and maximize machine uptime.
Key Highlights
- Case 4-390 4-cylinder diesel engine delivering 60 gross hp (57 net hp)
- Rated operating load: 1,750 lbs with tipping capacity of 3,545 lbs
- Hydraulic performance: 16 GPM @ 2,300 psi for efficient attachment operation
- Operating weight ~6,186 lbs with travel speed up to 6.1 mph
- Fuel capacity ~19.5 gallons for long operating cycles
- Compact frame: 11.03 ft long, 5.97 ft wide, 6.44 ft high
- Hydrostatic drive with durable chain-case final drive system
- Repair manual coverage: engines, hydraulics, power train, electrical, and mounted equipment
- Includes wiring diagrams, hydraulic schematics, lubrication guides, and torque specifications

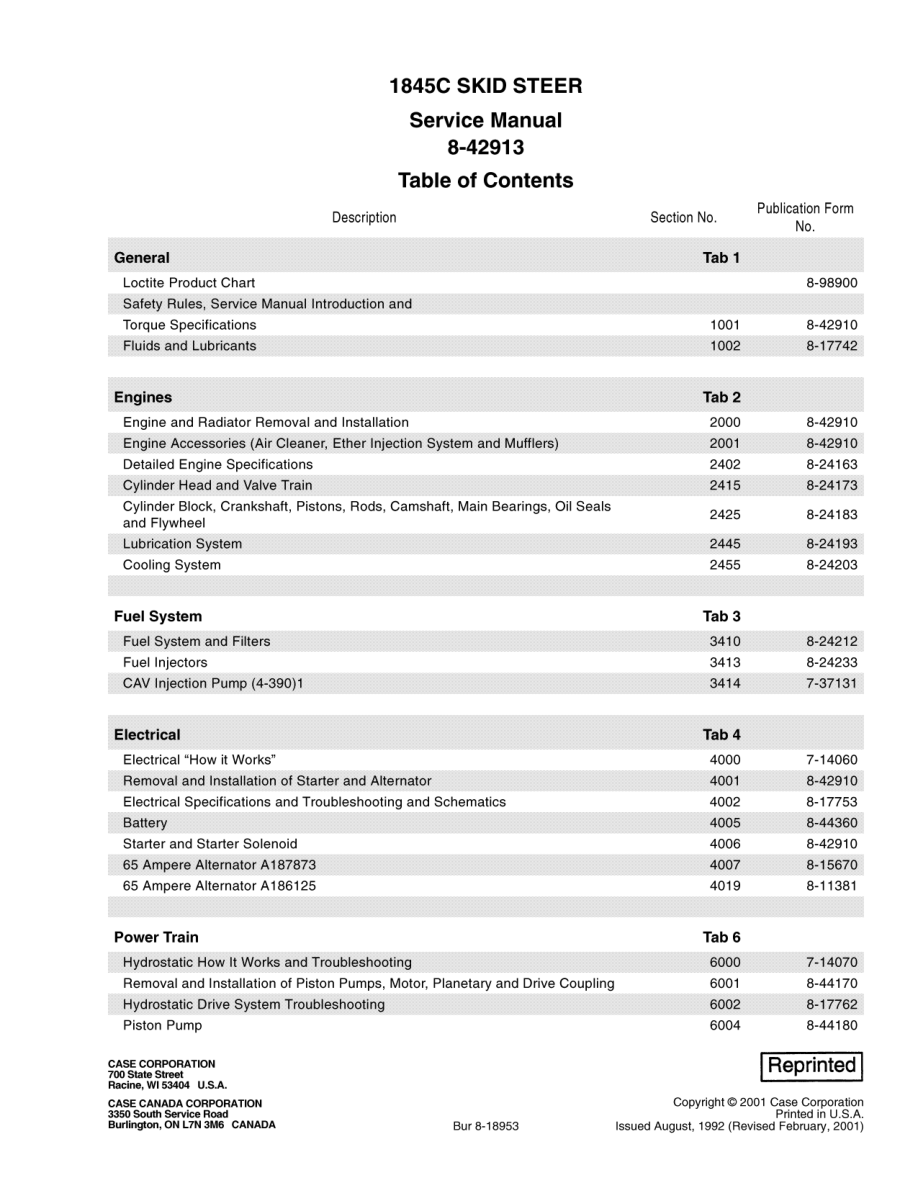

Table of Content
đź“™ Table of Contents
Table Of Contents
- Table of Contents
General
- General
Engines
- Engines
Fuel System
- Fuel System
Electrical
- Electrical
Power Train
- Power Train
Hydraulics
- Hydraulics
Mounted Equipment
- Mounted Equipment
Rear Pocket
- Rear Pocket
Specification
| Specification | Case 1845C Skid-Steer Loader |
|---|---|
| Engine Model & Type | Case 4-390, 4-cylinder diesel, liquid-cooled |
| Displacement | 239 cu in (3.92 L) |
| Gross / Net Horsepower | 60 hp gross / 57 hp net @ 2000 rpm |
| Peak Torque | 179 lb·ft @ 1200 rpm |
| Rated Operating Load | 1,750 lb (795 kg) |
| Tipping Load | 3,545 lb (1,608 kg) |
| Operating Weight | 6,186 lb (2,806 kg) |
| Hydraulic Pump Flow | 16 gpm (60.6 L/min) |
| Relief Valve Pressure | 2,300 psi (159 bar) |
| Travel Speed | 6.1 mph (9.8 km/h) |
| Fuel Tank Capacity | 19.5 gal (73.8 L) |
| Dimensions (L Ă— W Ă— H) | Length: 11.03 ft (3.36 m) Width: 5.97 ft (1.82 m) Height: 6.44 ft (1.96 m) |
