Case 1835 Uni-Loader SkidSteer Repair Manual
$33.00
| đźšś Equipment | |
|---|---|
| Brand | CASE |
| Type | Uni-Loader SkidSteer |
| Model | 1835 |
| đź“„ Documents | |
| Type | Repair Manual |
| Publication | 9-68700 |
| Language | English |
| Format | |
| No of Pages | 884 |
The Case 1835 Uni-Loader Skid Steer Loader is a versatile compact machine designed for durability and performance in construction, agriculture, and landscaping applications. With a rated operating load of 1,200 lbs and a tipping load of 2,400 lbs, it offers the power and stability needed for material handling, grading, and attachment work. Equipped with a 48 hp engine and an operating weight of approximately 4,950 lbs, the 1835 strikes an excellent balance between compact size and heavy-duty capability.
The hydraulic system delivers up to 16.4 GPM at 2,250 psi, supporting a wide range of attachments while ensuring smooth and efficient operation. Its infinitely variable hydrostatic drive allows travel speeds up to 5.9 mph, giving operators excellent control and maneuverability in tight spaces. Fuel capacity of nearly 20 gallons ensures extended operating time, reducing downtime on the job site. Compact dimensions (just under 5 ft wide and 6.5 ft tall) make the 1835 ideal for confined spaces without compromising lifting power.

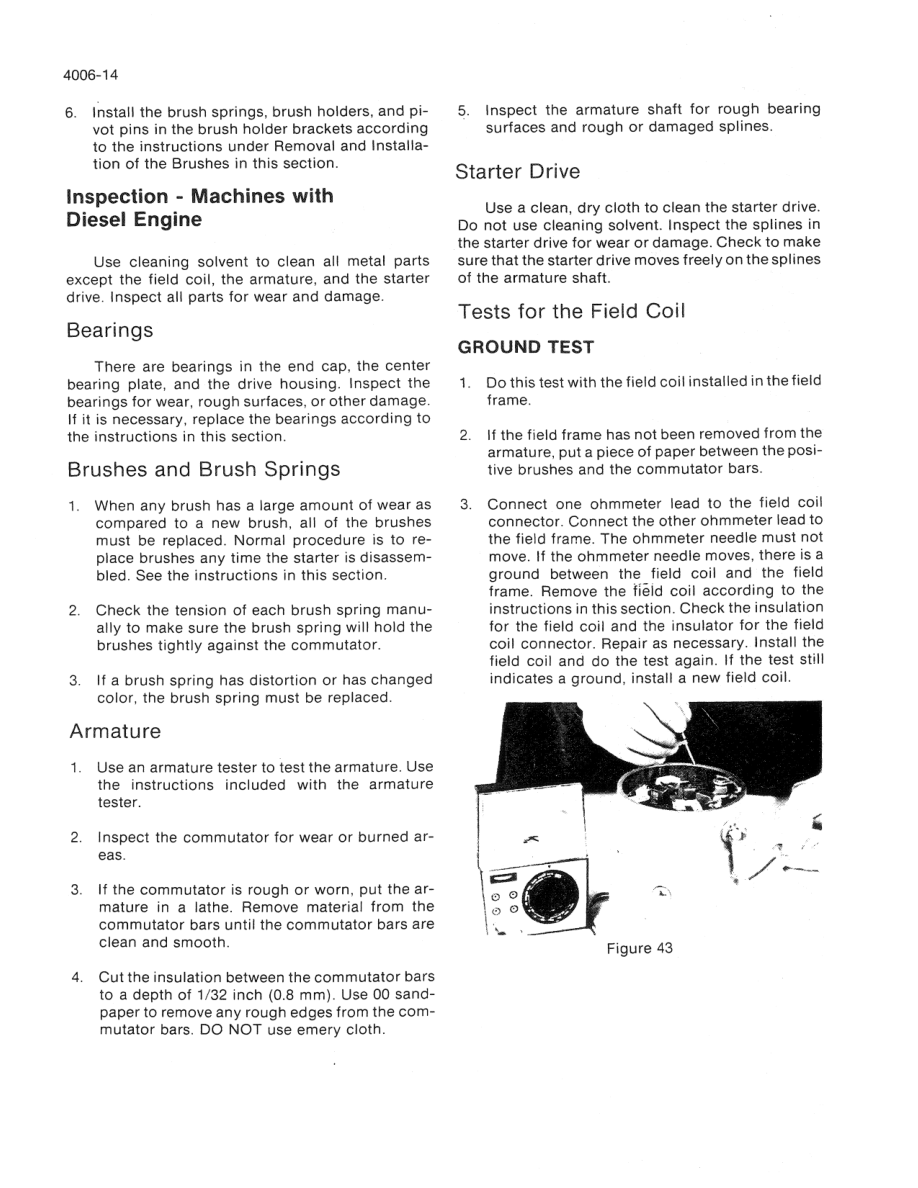

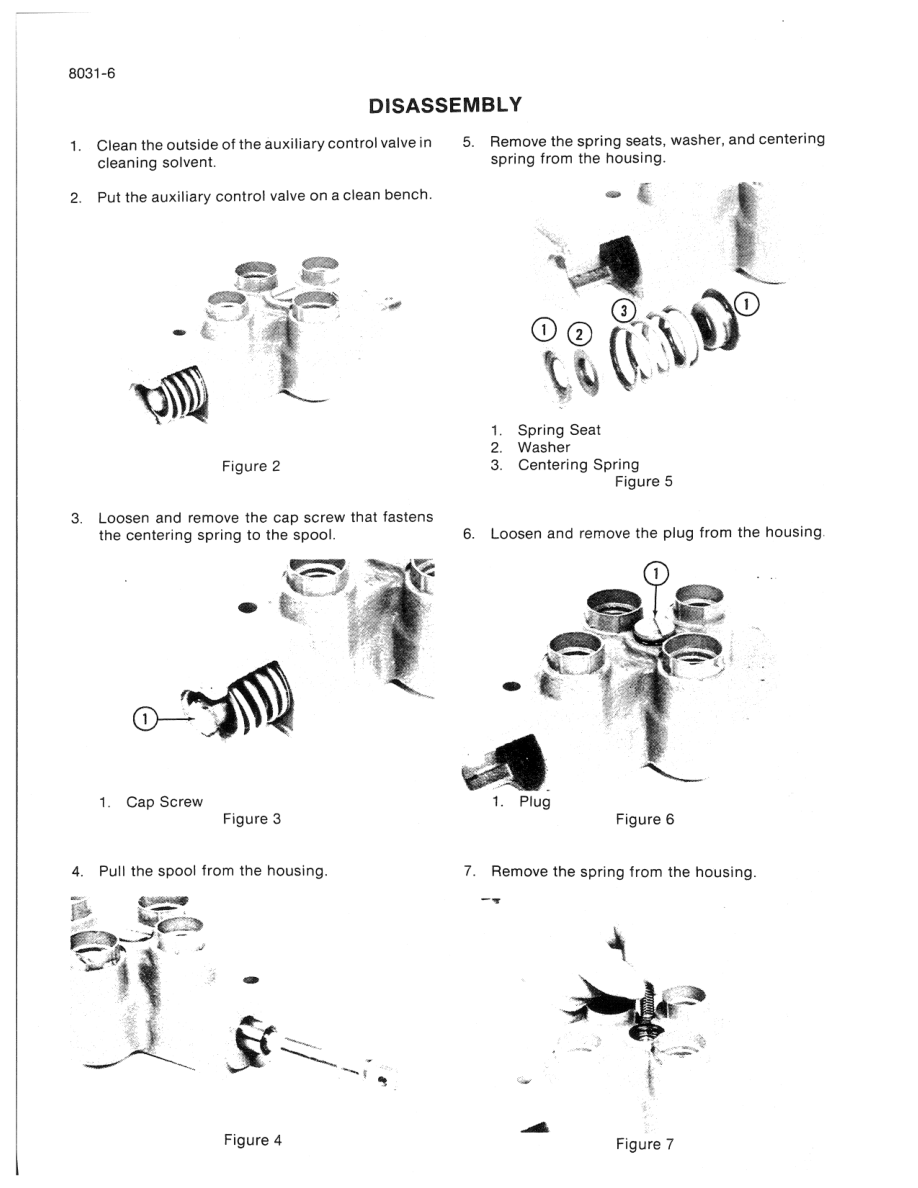

The repair manual provides full coverage of all major systems, including engine, fuel system, electrical system, power train, brakes, hydraulics, and mounted equipment. With step-by-step repair instructions, torque specifications, lubrication schedules, wiring diagrams, and hydraulic schematics, the manual ensures that technicians and owners can perform accurate maintenance and keep the machine at peak performance. It is an essential resource for prolonging the service life of this dependable skid steer.
Key Highlights
- 48 hp engine with 1,200 lb rated operating load
- Tipping capacity of 2,400 lbs for reliable stability
- Operating weight of ~4,950 lbs for durability and balance
- Hydraulic output of 16.4 GPM at 2,250 psi
- Hydrostatic drive with infinitely variable travel speeds up to 5.9 mph
- Compact dimensions: 125 in length, 57 in width, 77 in height
- Fuel tank capacity of ~19.5 gallons for long run times
- Repair manual coverage includes engine, hydraulics, brakes, electrical, and mounted equipment
- Includes wiring diagrams, hydraulic schematics, and service schedules for professional troubleshooting

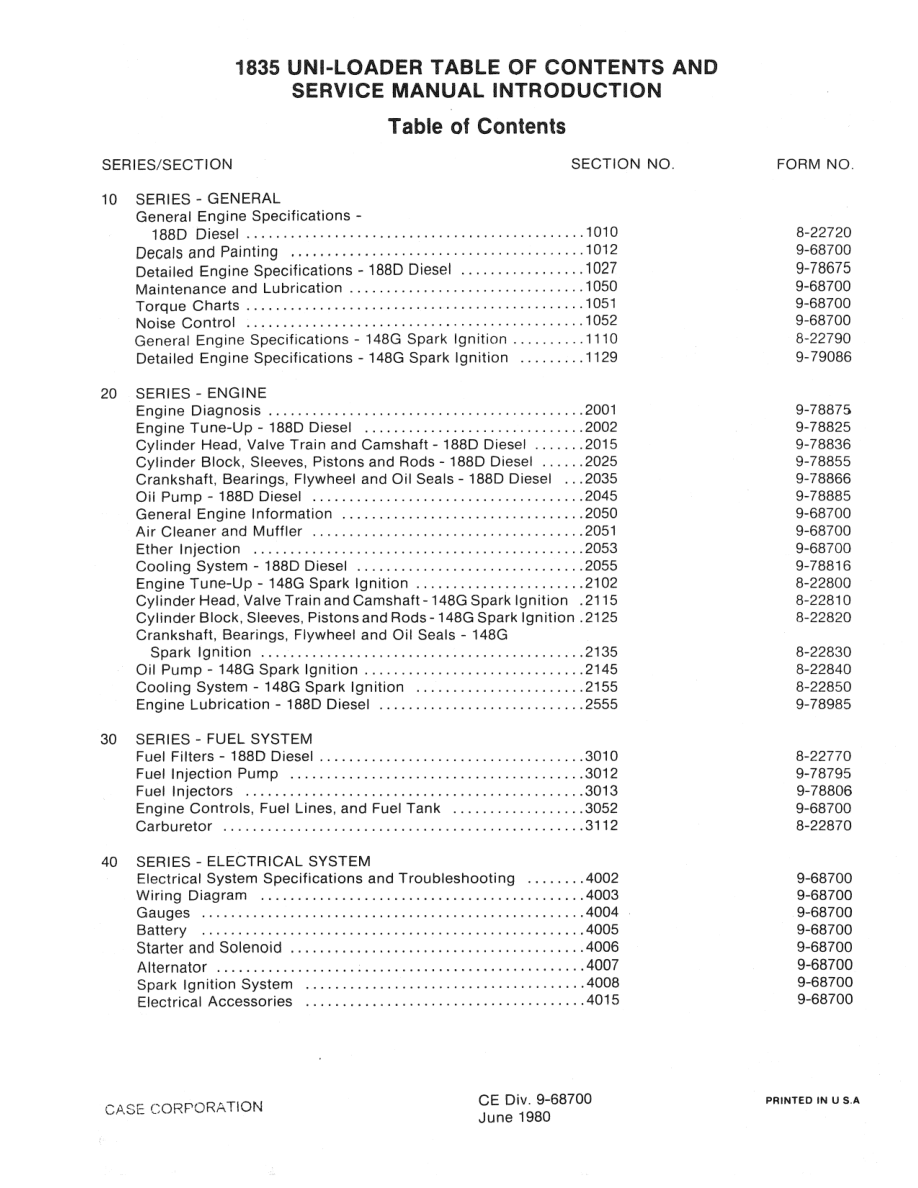

Table of Content
đź“™ Table of Contents
Table Of Contents
- Table of Contents
General
- General
Engine
- Engine
Fuel System
- Fuel System
Electrical System
- Electrical System
Power Train
- Power Train
Brakes
- Brakes
Hydraulic System
- Hydraulic System
Mounted Equipment
- Mounted Equipment
Specification
| Specification | Case 1835 Skid-Steer Loader |
|---|---|
| Rated Operating Load | 1,200 lb (544 kg) |
| Lift Capacity to Maximum Height | 2,350 lb |
| Tipping Capacity | 2,400 lb |
| Gross / Net Power | 48 hp gross / approx. 48 hp net |
| Operating Weight | ~4,950 lb |
| Fuel Capacity | ~19.5 gal |
| Hydraulic Output | 16.4 gpm @ 2,700 rpm (2,250 psi) |
| Travel Speed | 0–5.9 mph (infinitely variable) |
| Dimensions (L Ă— W Ă— H) | Length w/ bucket: 125 in (10 ft 5 in) Width over tires: 57 in (~4 ft 9 in) Height to top of ROPS: 77 in (6 ft 5 in) |
