Bobcat 331, 331E, 334 Excavator Repair Manual
$16.00 – $33.00
| đźšś Equipment | |||
|---|---|---|---|
| Brand | Bobcat | ||
| Type | Excavator | ||
| Model | 331, 331E, 334 | ||
| đź“„ Documents | |||
| Language | English | ||
| Format | |||
| Serial Number | Manual | Pages | |

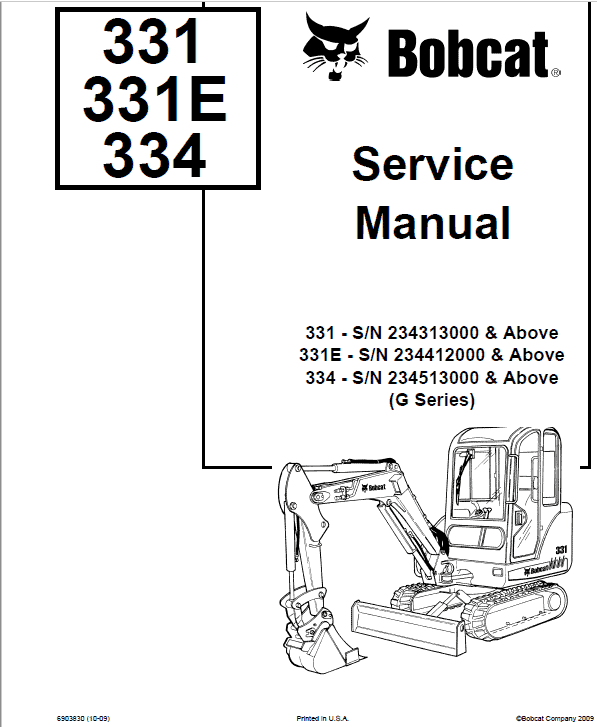

| Option 1 331: AACS11001 & Above | Repair Manual | 850 | |

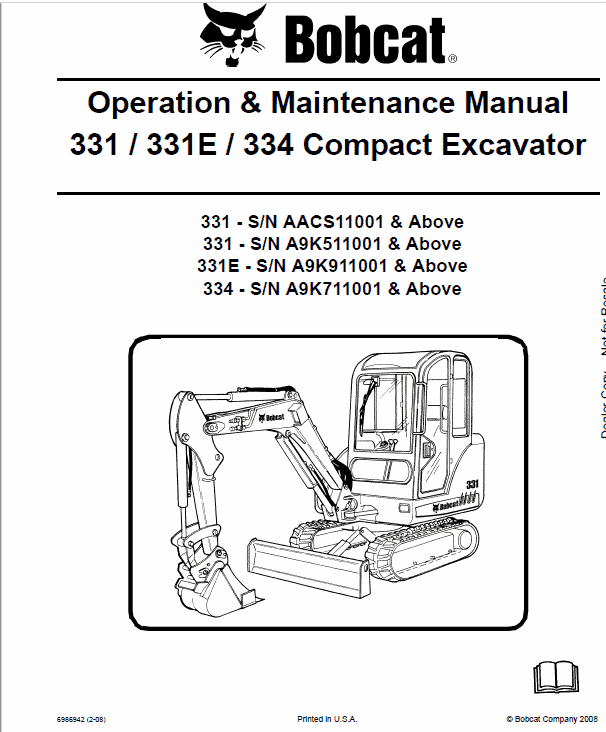

| Operation & Maintenance | 178 | ||
| Option 2 331: 232511001 & Above | Repair Manual | 872 | |
| Operation & Maintenance | 130 | ||
| Option 3 331: 234311001 & Above | Repair Manual | 977 | |
| Operation & Maintenance | 186 | ||
- Description
- Additional information
- Table of Content
- Specification
- Buyer Questions & Answers
- Reviews (0)
FOREWORD
This manual is the primary service guide for Bobcat excavator technicians. It supplements the Operation & Maintenance Manual by bringing together all workshop-level information you will need— from Safety Instructions and Fire-Prevention measures to serial-number verification—so every task can be carried out to factory standards.
Inside, you will find step-by-step diagnostics, disassembly, testing and assembly procedures for every major system: hydraulics, undercarriage, upper- and swing structures, engine, electrical, HVAC, and control components. Use the Service Schedule and lubrication charts to plan preventive maintenance, and consult the Specifications, Torque, and Hydraulic-Fluid tables whenever exact tolerances or capacities are required.
After any repair, perform the full post-service inspection outlined at the start of Maintenance Safety checking hydraulic and fuel lines, filters, pivot pins, electrical connections, fasteners, and all safety devices—before returning the excavator to service.
| Option | Option 1, Option 2, Option 3 |
|---|---|
| Manual | Repair Manual, Operation & Maintenance Manual |
