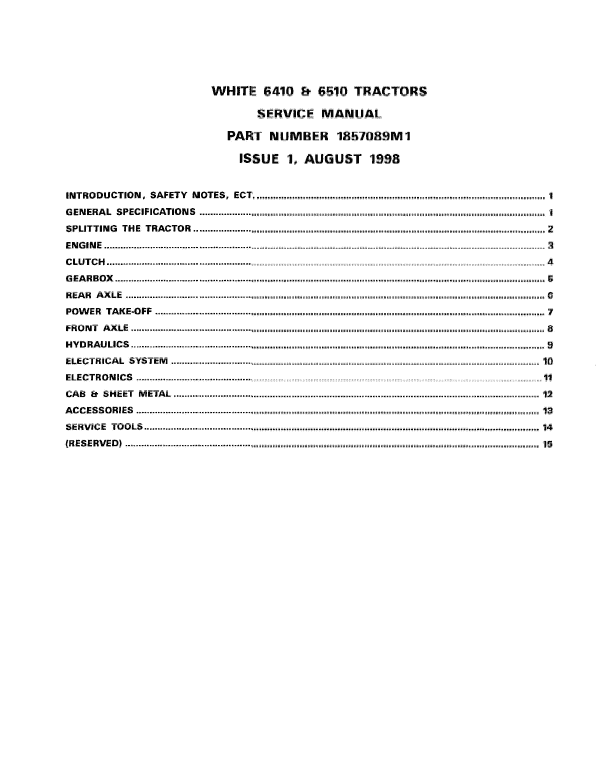

White 6410, 6510 Tractors Repair Manual

INTRODUCTION

The purpose of this manual is to assist Dealers and Distributors in the efficient repair and maintenance of AGCO farm machinery. Carrying out the procedures as detailed, together with the use of special tools where appropriate, will enable the operations to be completed within the time stated in the Repair Time Schedule. To assist with locating information, each section of the manual is preceded by a contents page listing the operations. Each instruction within an operation has a sequence number, and to complete the operation in the minimum time it is essential that these instructions are performed in numerical sequence commencing at 1, unless otherwise stated. When applicable, these sequence numbers identify the components in the appropriate illustration. Where an operation requires the use of a special tool, the tool number is quoted under the operation heading and is repeated in, or following, the instruction involving its use.

Indexing
For convenience, the manual is divided into sections and parts, each page bearing a section and part number. The sections are subdivided into numbered operations. Example: 1-7A would be Operation 1 in Section 7, Part A. This simplifies cross-referencing and enables the subject to be found easily.

Definition of Terms
The operation descriptions generally used throughout the schedules may be defined as follows:
Removal and Refitment – Remove and refit an original part or assembly, or a new part or assembly which does not involve additional operations or time.
Install – Install a part or component not previously fitted, e.g., accessories.
Overhaul – Remove a part or assembly, dismantle, inspect and recondition, re-assemble, and re-install making all necessary adjustments.
Dis-assembly and Re-assembly – The terms ‘Dis-assembly’ and ‘Re-assembly’ indicate the orderly taking apart of an assembly into individual parts and rebuilding it into the original assembly.
Adjust – Make the necessary adjustments to restore specified setting or performance.
Check – Ascertain if a setting or condition is within the limits of acceptability, either as defined in the manufacturer’s specifications or, where a dimension is not specified, in the judgement of the mechanic. The checking of fixings, e.g., nuts and bolts, includes tightening to the specified torque figures listed in this Manual.
Servicing – All technical work undertaken to maintain the machine in working order.
